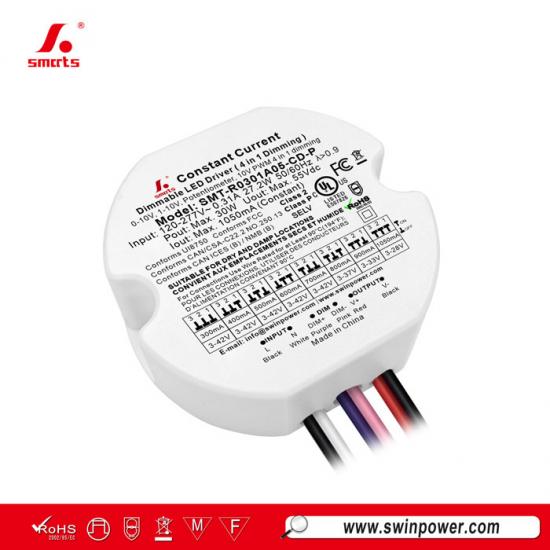

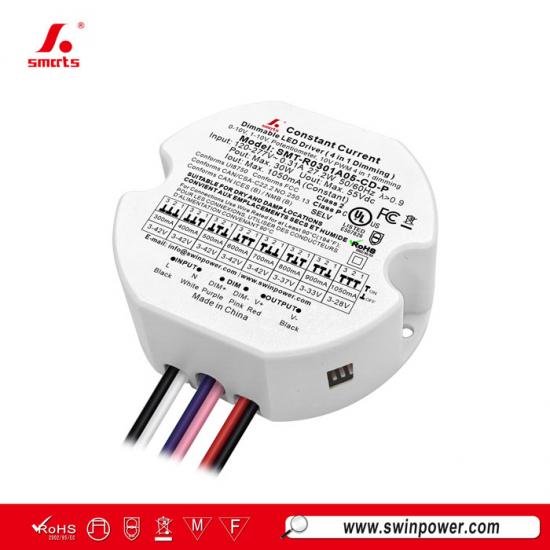

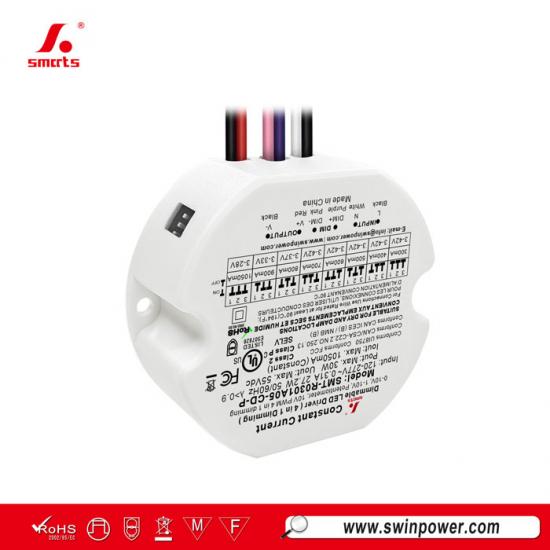

Round Shape 30w 0 10v dimmable constant current led strip light driver for indoor
This new Smarts LED power supply features a round plastic housing and 0–10V dimming capability. It includes short-circuit and over-temperature protection, is suitable for installation in confined indoor spaces, and comes with an exceptional 7-year warranty.

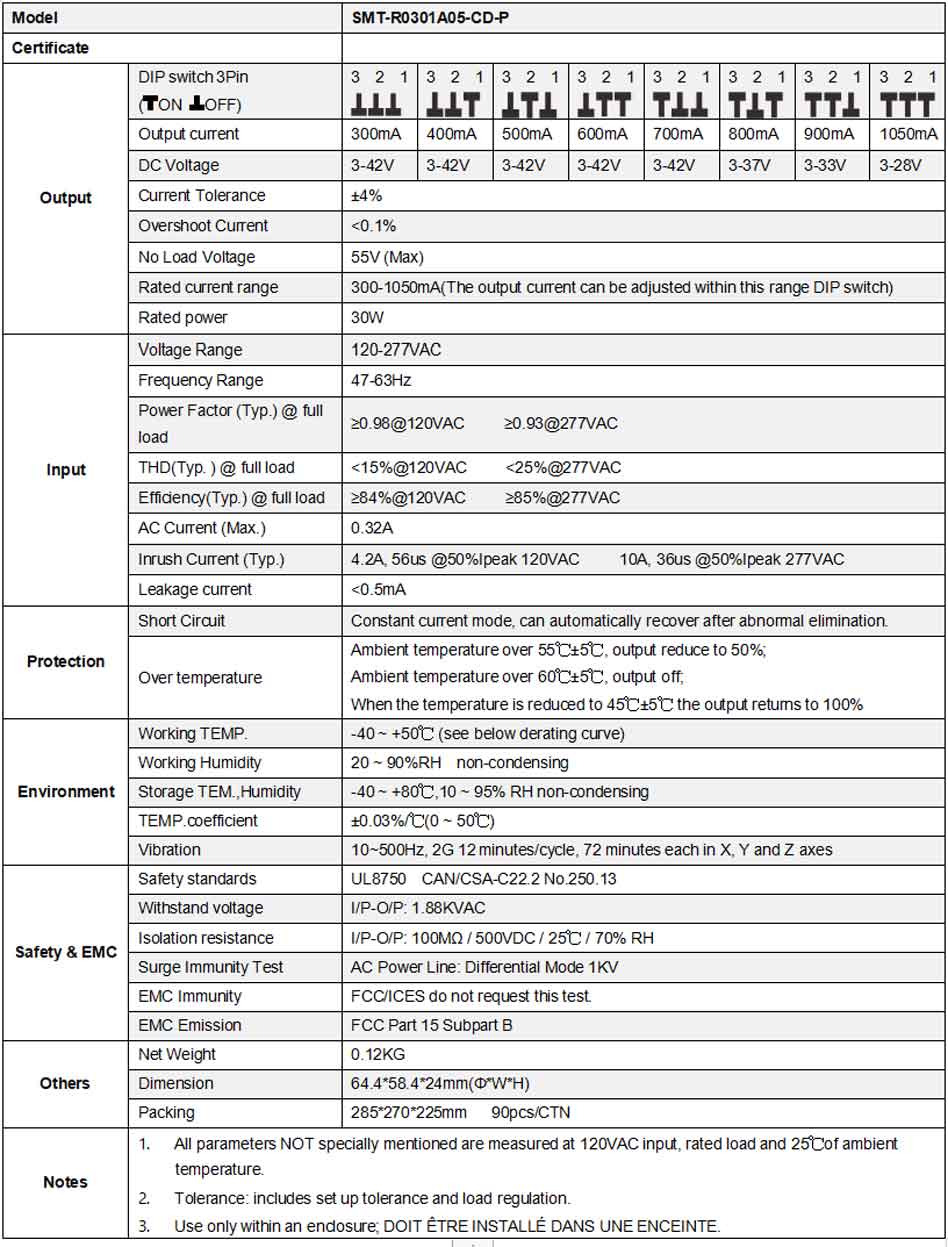

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|

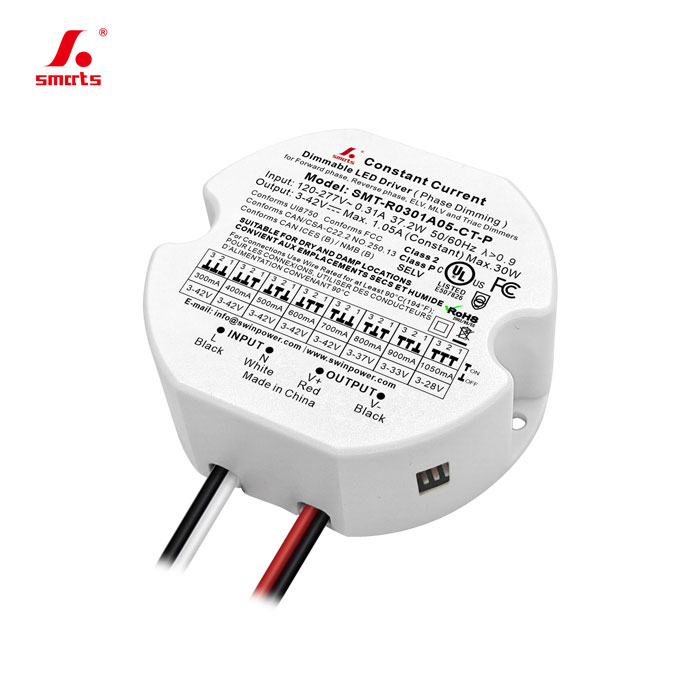

This TRIAC-dimmable LED power supply features a round plastic housing and an IP20 waterproof rating. It offers a 0–100% dimming range, is compatible with mainstream TRIAC dimmers on the market, and comes with a 7-year warranty.
