Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 dimmable driver led Class 2 muti-channels output, SMT-024-288VTD52 is a idea selection if we need triac or 0-10v dimming function for different projects, works with Lutron 120VAC dimmers and 0-10v dimmers.

PN: SMT-024-192VTD52 is a 192W Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmable 24v led strip light driver, class 2 muti-channels output, UL listed class p type HL for Utopia lighting dimmable strip lights.

                  Specification:                                   model SMT-012-200VTD SMT-024-200VTD Output DC Voltage 12V 24V Voltage Tolerance ±0.5V Voltage Regulation ±0.5% Rated current 16.66A 8.33A Load Regulation ±2% ±1% Rated power 200W 200W Input Voltage Range 100~277V AC Frequency Range 47～63HZ THD(Typ.) @full load <20%@120VAC &277VAC Power Factor ( Typ.） 0.98@120VAC   0.97@277VAC 0.98@120VAC   0.95@277VAC Full Load Efficiency(Typ.) 84%@120VAC   87%@277VAC 85%@120VAC   88%@277VAC AC Current（Typ.） 2.3A Inrush Current（Typ.） 15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC Leakage current <0.5mA Protection Short Circuit shut down o/p voltage, re-power on to recover afterfault condition removed. Over temperature 100℃±10℃ shut down o/p voltage,automatically recover after cooling.   Over Loading ≤120% constant current limiting, auto-recovery Environment Working TEMP. -40～+60℃ Working Humidity 20～90%RH,non-condensing Storage TEM.,Humidity -40～+80℃，10～95%RH TEMP.coefficient ±0.03%/℃（0～50℃） Vibration 10～500Hz，2G 10min./1 cycle，period for60min. each along X,Y,Z  axes Safety&EMC Safety standards UL8750 , CAN/CSA-C22.2 No.250.13   Withstand voltage I/P-O/P:1.88KVac  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH  EMC EMISSION FCC 47 CFR Part 15 ,Subpart B  Others NetWeight 1.5Kg Size 256*78*47mm (L*W*H)     packing 329*279*176mm ,10PCS/ctn Notes 1. All parameters NOT specially mentioned are measured at120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. ■ Mechanical Specification:                                       ü Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC ü Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-). noted that 12V 200W is with 2 group of  2*16AWG output wires to separate the output current.) ü Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-) ü Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection. ü Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.   Ø Derating Curve    ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.         Ø Dimming Operation and Connecting Diagram    ü Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming; ² Using one dimming ---TRIAC/Phase cut dimming 1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system. 2. Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers  3. Min loading is about 10% 4.  Please try to use dimmers with power at least 1.5 times as the output power of the driver.   Ø Instruction: l This driver should be installed by qualified and professional person; l Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation. l Ensure that wiring is correct before test in order to avoid light and power supply damage; l If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com  Or take a phonecall: 0086-595-22863721 ext.808   Official website: www.smarts-electronics.com  &  www.swinpower.com     Compatible Dimmer Type   SMARTS's UL Triac Dimmable LED Driver have been tested for compatibility dozens of brands dimmer.such as LEVITON/LEGRAND/LUTRON dimmer   Related Products   24v dimmable led driver 96W are UL CE ROHS approval.it is widely used in various industries, such as:INdoor LED illuminating lights,LED Neon,LED City Decoration,LED Lighting Advertising,LED Display,Safety Protection Apparatus....... Mode：SMT-024-096VTHW intput voltage：100~277V AC Efficiency > 82% Size：230*70*46mm   （L*W*H） Weight：1.1Kg/pcs

         Specification                                    model SMT-012-150VTD SMT-024-150VTD Output DC Voltage 12V 24V Voltage Accuracy ±0.5V Rated current 12.5A 6.25A Voltage Regulation ±0.5% Load Regulation ±2 % ±1 % Rated power 150W 150W Input Voltage Range 100~277V AC Frequency Range 47～63HZ THD(Typ.) @full load <20% Power Factor ( Typ.） 0.98@120VAC  0.95@277VAC 0.97@120VAC  0.94@277VAC Full Load Efficiency(Typ.) 85%@120VAC   86%@277VAC 85%@120VAC   87%@277VAC AC Current（Typ.） 1.8A/110VAC Inrush Current（Typ.） 15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC Leakage current <0.5mA Protection Short Circuit shut down o/p voltage, re-power on to recover afterfault condition removed Over temperature 100℃±10℃ shut down o/p voltage,automatically recover after cooling.   Over Loading ≤120% constant current limiting, auto-recovery Environment Working TEMP. -40～+60℃ Working Humidity 20～90%RH,non-condensing Storage TEM.,Humidity -40～+80℃，10～95%RH TEMP.coefficient ±0.03%/℃（0～50℃） Vibration 10～500Hz，2G 10min./1 cycle，period for60min. each along X,Y,Z  axes Safety&EMC Safety standards UL8750 , CAN/CSA-C22.2 No.250.13   Withstand voltage I/P-O/P:1.88KVac  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH  EMC EMISSION FCC 47 CFR Part 15 ,Subpart B  Others NetWeight 1.5Kg Size 256*78*47mm(L*W*H) packing 340*280*185mm    10pcs /CTN    Notes 1. All parameters NOT specially mentioned are measured at120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. ■ Mechanical Specification:   ü Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC ü Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-). noted that 12V 200W is with 2 group of  2*16AWG output wires to separate the output current.) ü Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-) ü Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection. ü Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.   Ø Derating Curve    ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.         Ø Dimming Operation and Connecting Diagram    窗体顶端 ü Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;   u Using one dimming ---TRIAC/Phase cut dimming 1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system. 2. Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers  3. Min loading is about 10% 4. Please try to use dimmers with power at least 1.5 times as the output power of the driver.           Ø Instruction: l This driver should be installed by qualified and professional person; l Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation. l Ensure that wiring is correct before test in order to avoid light and power supply damage; l If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com  Or take a phonecall: 0086-595-22863721 ext.808    Official website: www.smarts-electronics.com   &   www.swinpower.com     Compatible Dimmer Type   SMARTS's UL Triac Dimmable LED Driver have been tested for compatibility dozens of brands dimmer.such as LEVITON/LEGRAND/LUTRON dimmer   Related Products   24v dimmable led driver 96W are UL CE ROHS approval.it is widely used in various industries, such as:INdoor LED illuminating lights,LED Neon,LED City Decoration,LED Lighting Advertising,LED Display,Safety Protection Apparatus....... Mode：SMT-024-096VTHW intput voltage：100~277V AC Efficiency > 82% Size：230*70*46mm   （L*W*H） Weight：1.1Kg/pcs

This led driver 120w combines two types of dimmng mode: triac + 0-10v. Each way can achieve smooth dimming effect. Conforms to UL cUL CSA standard.Work nicely with 12v strips lights like coxotech

This 100w led driver operates consistent, flicker-free dimming which can be downed to 0% if connected with suitable dimmers. It can power a wide range of ustellar LED strip or other constant voltage 12V 24V LEDs products.

In this series, the led driver class 2 output power is available in 30w 60w 80w 100w 120w 150w 200w 300w. A wide range for choosing. It has already meet UL safe standard. Coxotech 12v LEDs lights like LED modules can achieve  good matching.

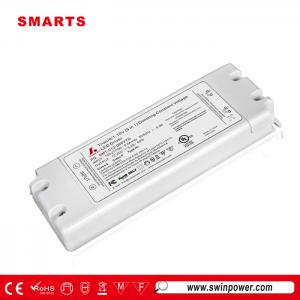

This led driver 120v 12v 30w is the most efficient dimmable electronic driver for single output LED Lights. The input range is from 100-277VAC,compatible with Lutron dimmers which shows 0-100% dimmable range.

The EMLV triac dimmable 100w led driver is the most versatile and efficient dimmable electronic driver for single color ColorBright™ LED Strip Light CB-R.

Constant Voltage 150W 1-10v dimmable led driver can effectively power Super Bright 24V comfort tape lights, strip lights, light bars, and more. This power supply has a separate junction box, as well as short-circuit, overload, and over-temperature protection.

This class 2 led power supply transformateur is strong compatibility for the phase dimming: work with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers for led bar light 150w.

200w pwm dimmable led driver with an increase in Power Factor 0.99, the input voltage range of 100-277 VAC has been extended from the previous version's range of 100-130 VAC, making it ideal for ColorBright™ vivid color LED Strip Light CB-A.
