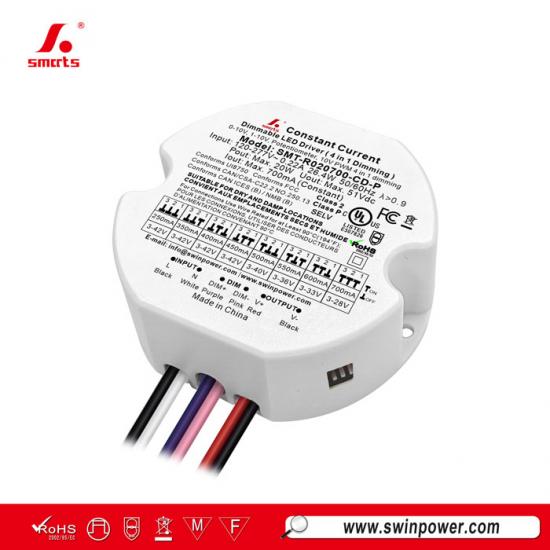

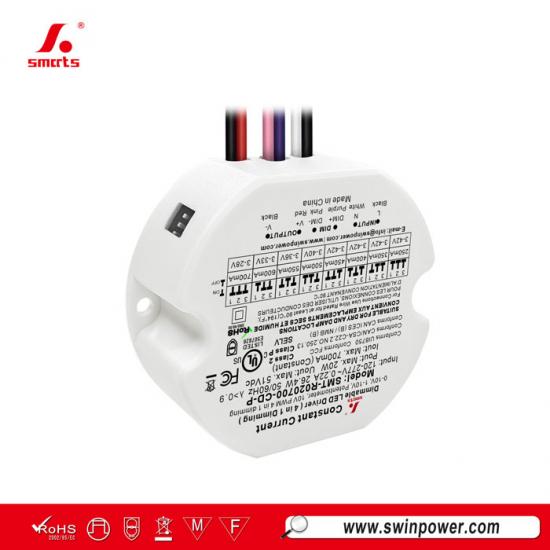

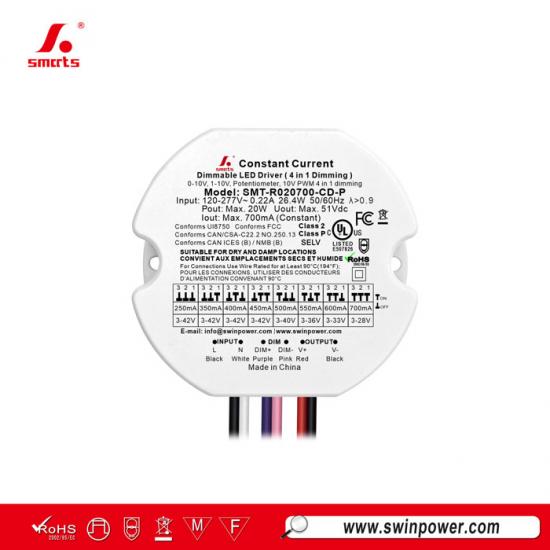

250ma-700ma 20W Round Shape constant current dimmable led driver for led lighting
This round, 20W constant-current LED power supply features 0-10V dimming capabilities and protections against short circuits and over-temperature conditions. It utilizes natural convection cooling and is suitable for installation in confined indoor spaces. It is UL-certified and primarily sold in the North American market.

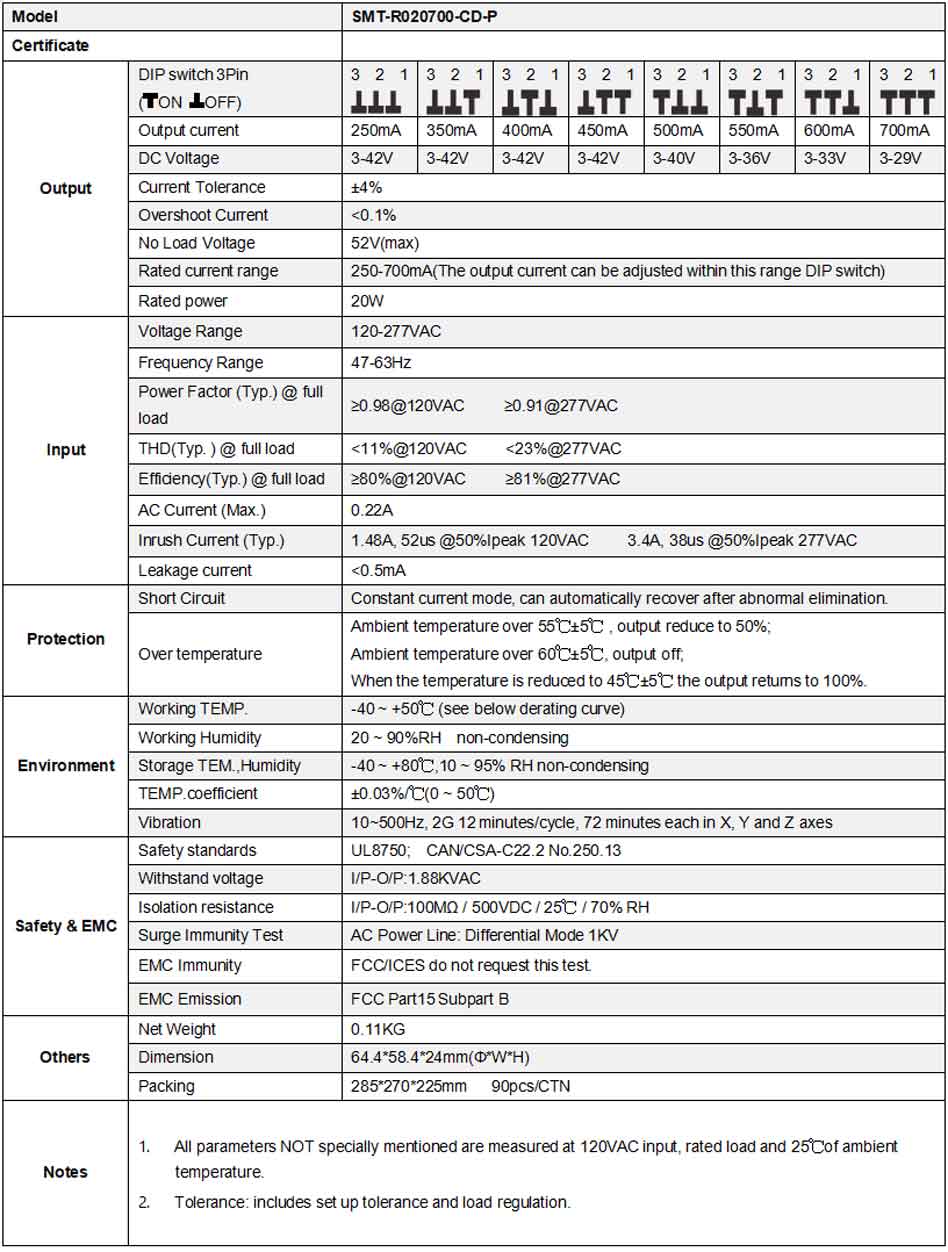

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|

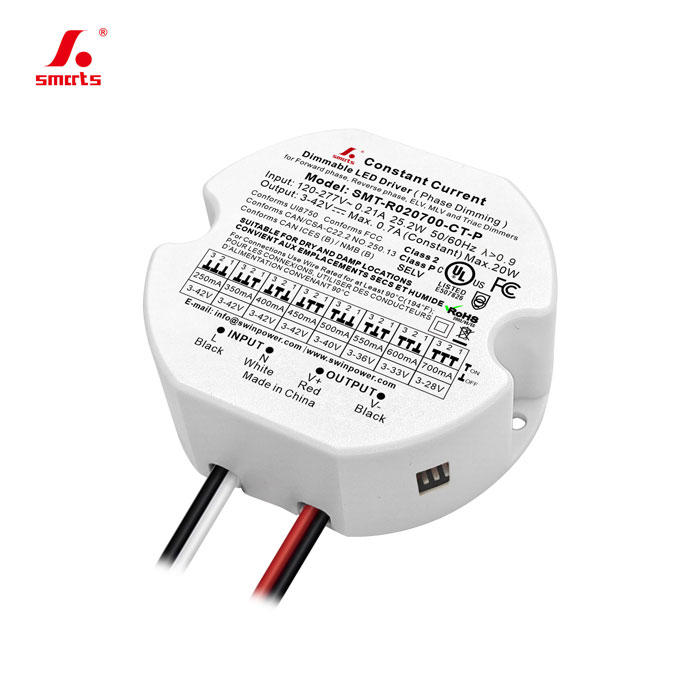

This round, 20W constant-current, TRIAC-dimmable LED power supply features short-circuit and over-temperature protection and utilizes natural air cooling; it is suitable for installation in confined indoor spaces. It is UL-certified and primarily sold in the North American market.
