Round TRIAC dimmable constant current led driver 100ma-450ma for led lighting
This round plastic-cased 0-10V dimmable LED power supply offers smooth, stable, and flicker-free dimming across a 0–100% range. It is highly compatible with most 0-10V dimmers on the market and comes with a 7-year warranty.

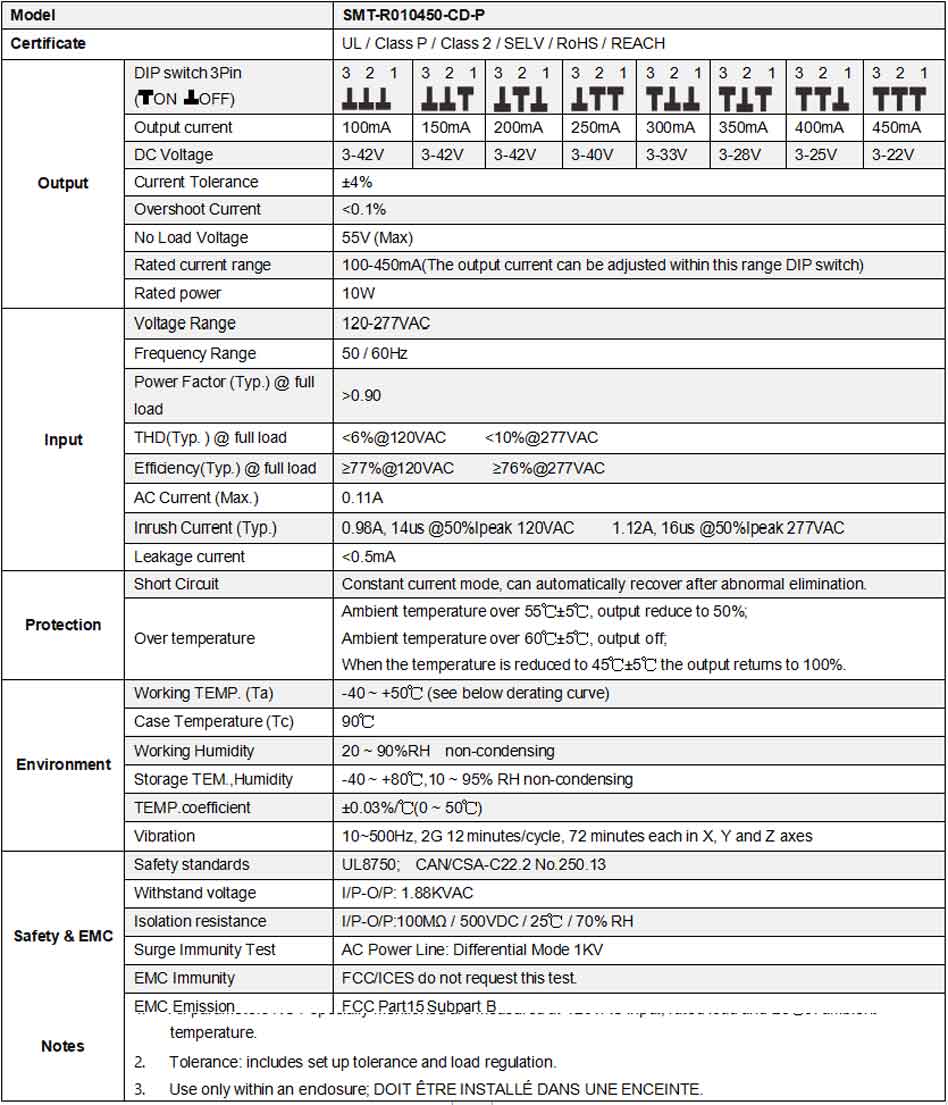

Specification
|
|
 |
 |
 |

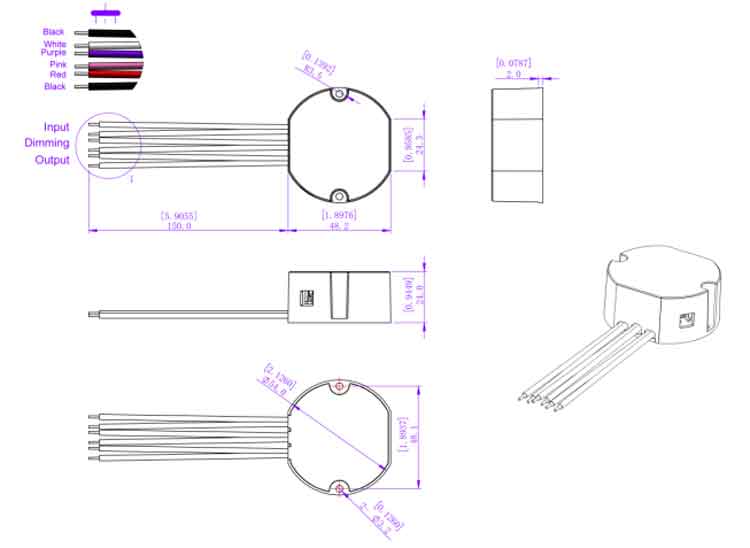

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|

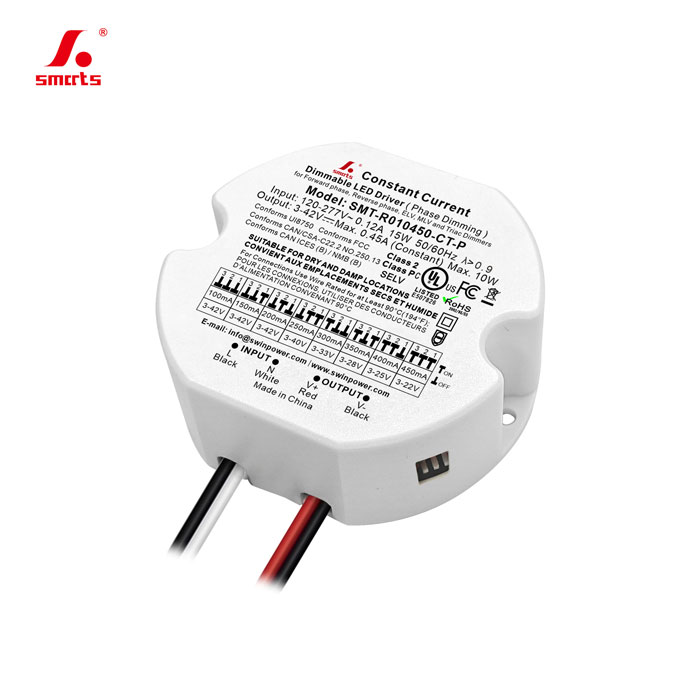

This TRIAC-dimmable LED power supply features a constant-current operating mode and offers a range of selectable output currents. It utilizes an all-plastic housing designed for effective heat dissipation and complies with global safety standards for lighting. It is suitable for installation in confined indoor spaces for LED lighting projects.
Model: SMT-R010450-CT-P Input Voltage: 100-277Vac
Dimming Mode: triac dimmable
|
