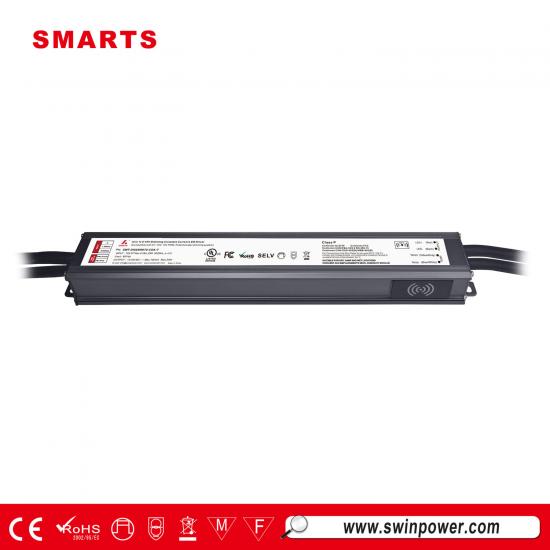

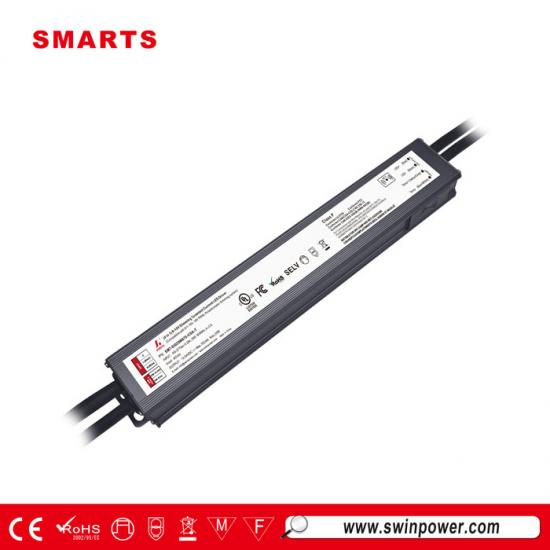

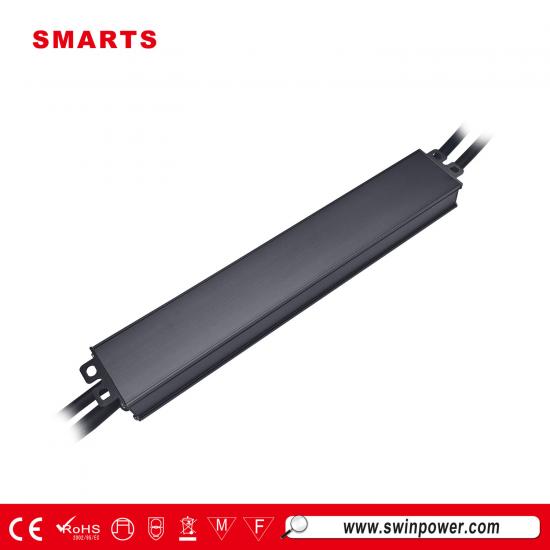

700mA Constant current linear waterproof 0-10v dimmable led driver 20w
This constant current linear waterproof led driver is designed to trigger when it exceeds the specified output current, output voltage, temperature, and short circuit and auto recovers from it.This LED power supply offers a programmable output current range of 70-700mA and an output voltage range of 12-54V, providing flexibility for various lighting applications.
Specification
| Model | SMT-DI020W070-CDA-T | |
| Certificate | UL/FCC/CE /ClassP/Class2/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA | |
| Output | On-load voltage range | 12-54V |
| Output Current Setting(loset) Range | 70-700mA | |
| Output Current Setting Range with Constant Power | 370-700mA | |
| Rated power | 20W(Max) | |
| No Load Output Voltage | 60V(Max) | |
| Current Tolerance | 700mA±5% | |
| Total Output Current Ripple | 20mA(Imax) | |
| Startup Overshoot Current | 9%(Max) | |
| Line Regulation | <0.5% | |
| Load Regulation | <0.5% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Standby Power | ≤0.5W | |
| Power Factor (Typ.) @ full load | 0.99@120VAC 0.97@230VAC 0.93@277VAC | |
| THD(Typ. ) @ full load | <10%@100-277VAC | |
| Efficiency(Typ.) @ full load | 82%@120VAC 82%@230VAC 82%@277VAC | |
| AC Current (Max.) | <0.3A@120VAC <0.22A@230VAC <0.15A@277VAC | |
| Standby power | ≤0.5W | |
| Inrush Current (Typ.) | 17.5A, 50%, 29.1us @120VAC; 33.6A, 50% 864us @277VAC 40.4A, 50% 26us @277VAC | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Constant current mode, recovers automatically after fault condition is removed |
| Over Load | ≥110% Constant current mode,recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) |
| Working Humidity | 20 - 95%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | UL8750;EN61347-1 |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |
| EMC Immunity | IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547 | |
| EMC Emission | EN55015 EN61000-3-2,3 FCC Part15 Subpart B;ANSI C63.4:2014 | |
| Surge Immunity Test | AC Power Line:Differential Mode 2 kV, Common Mode 4 kV | |
| Others | Net Weight | 385g |
| Dimension | 238*38.5*23.6mm(L*W*H) | |
| Packing | 310*285*210mm 30pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
|
2. Default states: Output Current Setting is Maximum value. The dimming curve is a logarithmic curve. |
||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation agai | ||
| 4. To extend the driver's using life , please reduce the loading at lower input voltage . | ||
 |
 |
 |
 |

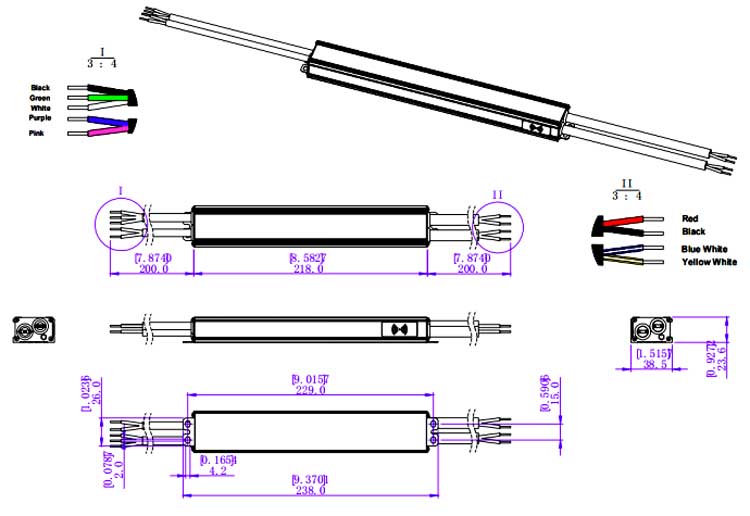

Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 20 |
| 13A | 26 | |
| 16A | 32 | |
| 20A | 40 | |
| 25A | 50 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 27 |
| 13A | 35 | |
| 16A | 44 | |
| 20A | 55 | |
| 25A | 69 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 40 |
| 13A | 52 | |
| 16A | 64 | |
| 20A | 81 | |
| 25A | 91 | |
| LN20 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire | V+(Red) V-(Black)(2*18AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-)(2*18AWG) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG) |
| Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |

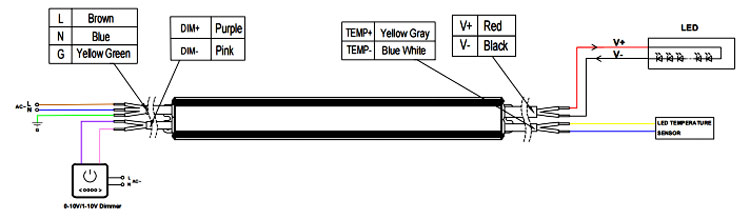

Connecting Diagram

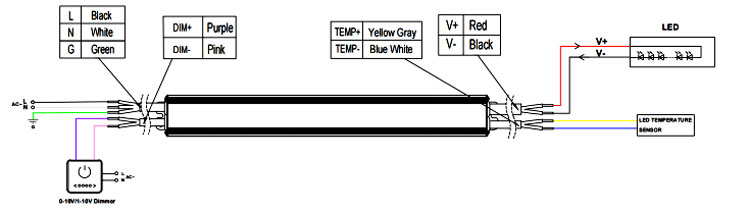

Dimming Operation and Connecting Diagram:
1. The model name SMT-DI020W070-CDA means that there is no lamp temperature detection, so there is no
corresponding wiring for the LED driver.
2. The model name SMT-DI020W070-CDA-T means that there is lamp temperature detection.
NFC function：
 |
 |
 |
 |
|
ProNFC APP |
NFC Handheld devices |
IOS Download |
Android Download |
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Dimming Operation

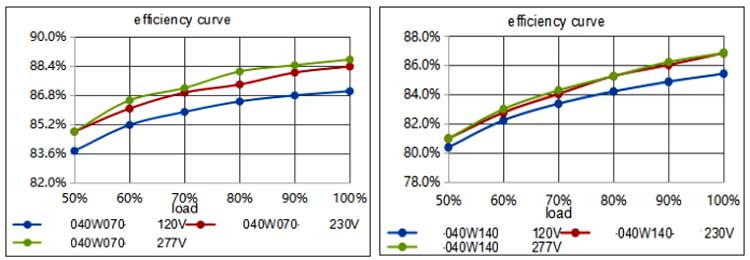

Efficiency Curve (efficiency vs output load):

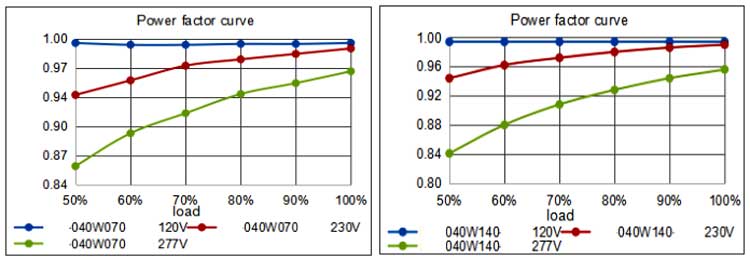

Power factor curve(Power factor vs output load)：

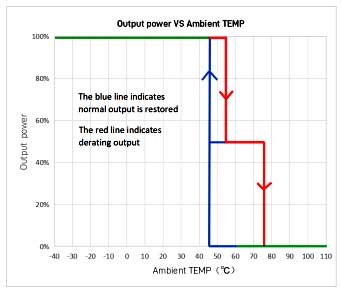

Derating Curve (Output power VS Ambient TEMP)：
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver’s life .

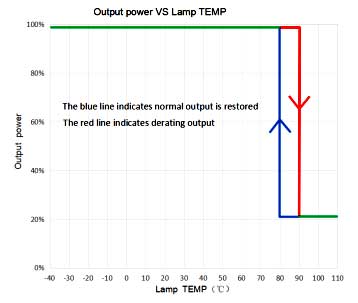

Temperature derating curve of lamp：
1. This figure shows the protection curve when the recommended model of the lamp temperature sensor is NCP18XH103J03RB(muRata) and the external temperature protection parameters on the APP are factory default.
2. If the models of thermistors are is not NCP18XH103J03RB(muRata) , Please check the relevant parameters of lamp temperature protection on the APP.
3. If the lamp temperature sensor is not connected, please keep the parameters of the lamp temperature protection section on the APP as default and keep cables away from live bodies.
Related Products
|

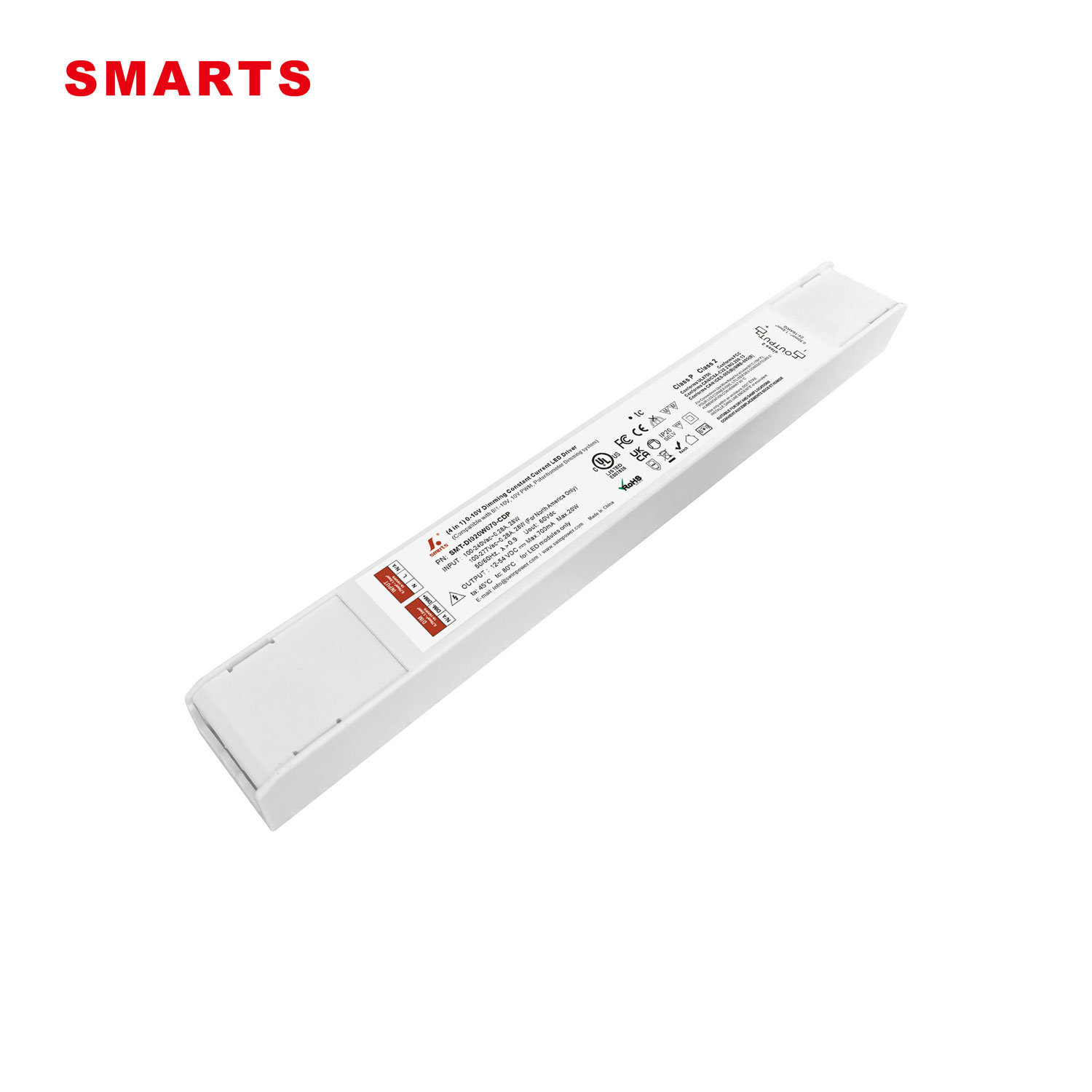

Slim IP20 Constant current linear plastic 0-10v dimmable led driver 20w 700mA,Standard built-in protections include short-circuit, over-load, and over-temperature protection. cUL us Listed,Class P, Type HL, FCC compliant, damp location rated.
