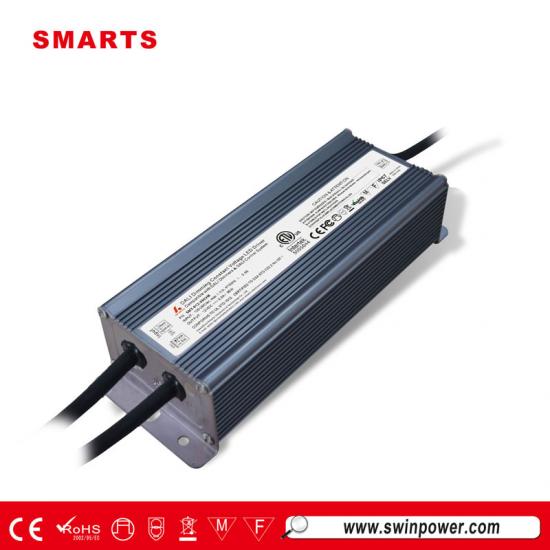

waterproof led power supply for 12 volt power supply for led strips
Our 12 volt power supply for led strips feature flexible input voltage (100-265VAC) and can be ordered in 12VDC or 24VDC outputs. Wattage displayed is the Maximum Wattage. These power supplies are rated to run at 80% continuous wattage or 75 Watts continuous.With load function, it can effectively protect Amax LED DRUM FIXTURES LED-V002L and make the life of the lamp longer.
Specification
Model
SMT-012-096VM
SMT-024-096VM
SMT-036-096VM
Output
DC Voltage
12VDC
24VDC
36VDC
Voltage Accuracy
±0.5V
Rated current
0～8.0A
0～4.0A
0～2.66A
Rated power
96W
96W
96W
Input
Voltage Range
100-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.90/100V~ 220V
Full Load Efficiency（Typ.）
>88%(110,220V)
>88%(110,220V)
AC
Current（Typ.）
1.10A@110VAC
0.55A(110,220V)
Leakage current
﹤0.70mA/110, ﹤0.72mA/220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Current
≦1.4*I out
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13, IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
Others
Weight
1.3Kg
Size
230*69*45mm（L*W*H）
packing
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box
Not
es
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Label
Mechanical Specification
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Opreation reference 1:
Opreation reference 2:
■Instruction:
1)This driver should be installed by qualified and professional person;
2)Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3)Ensure that wiring is correct before test in order to avoid light and power supply damage;
Dimming Operation
※Connect the Dali signal line to the Dali bus of the controller (the Dali Master).
After Dali Master scanning and address assignment, the driver can be successfully dimmed.
Please refer to Diagram 1
※Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).
※Any incorrect connecting of signal line and output line would damage the master.
FAQ
1. If the connection load less than 55% for the load limitation led driver, what will happen?
Answer: If you take our 1.0V triac dimmable led drivers, the led light will have flick problem.
2. Can we make our company information on the label?
Answer:
--As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.
