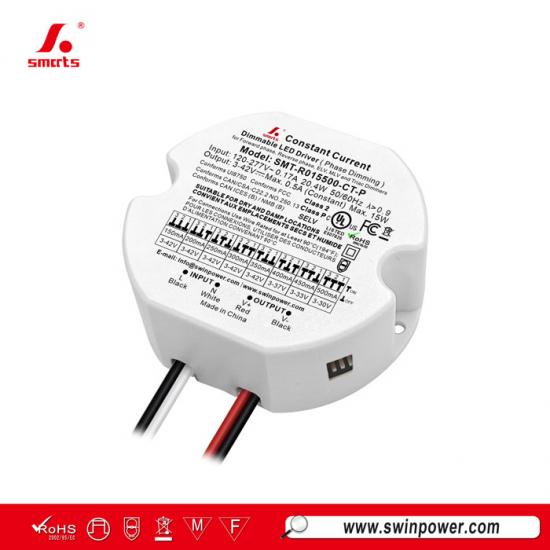

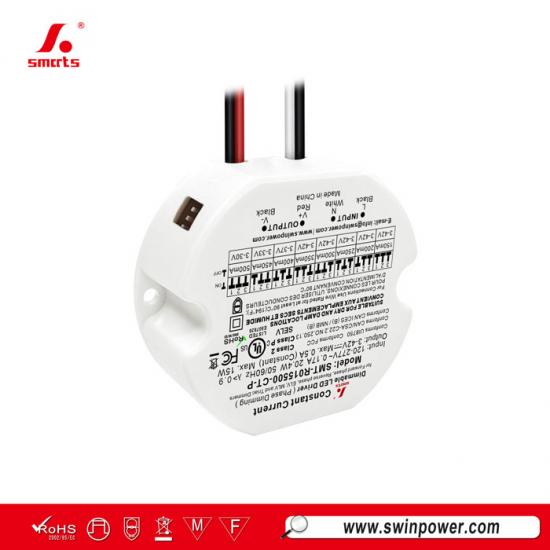

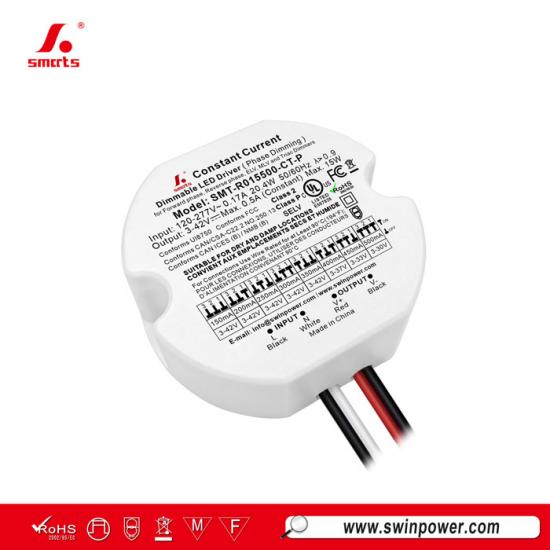

Multi-current Selectable triac dimmable led driver 150ma-500ma for indoor
Featuring a circular plastic housing design, this TRIAC-dimmable LED power supply incorporates active PFC functionality and achieves an efficiency of up to 77%. It utilizes natural air cooling and comes with an extensive 7-year warranty.

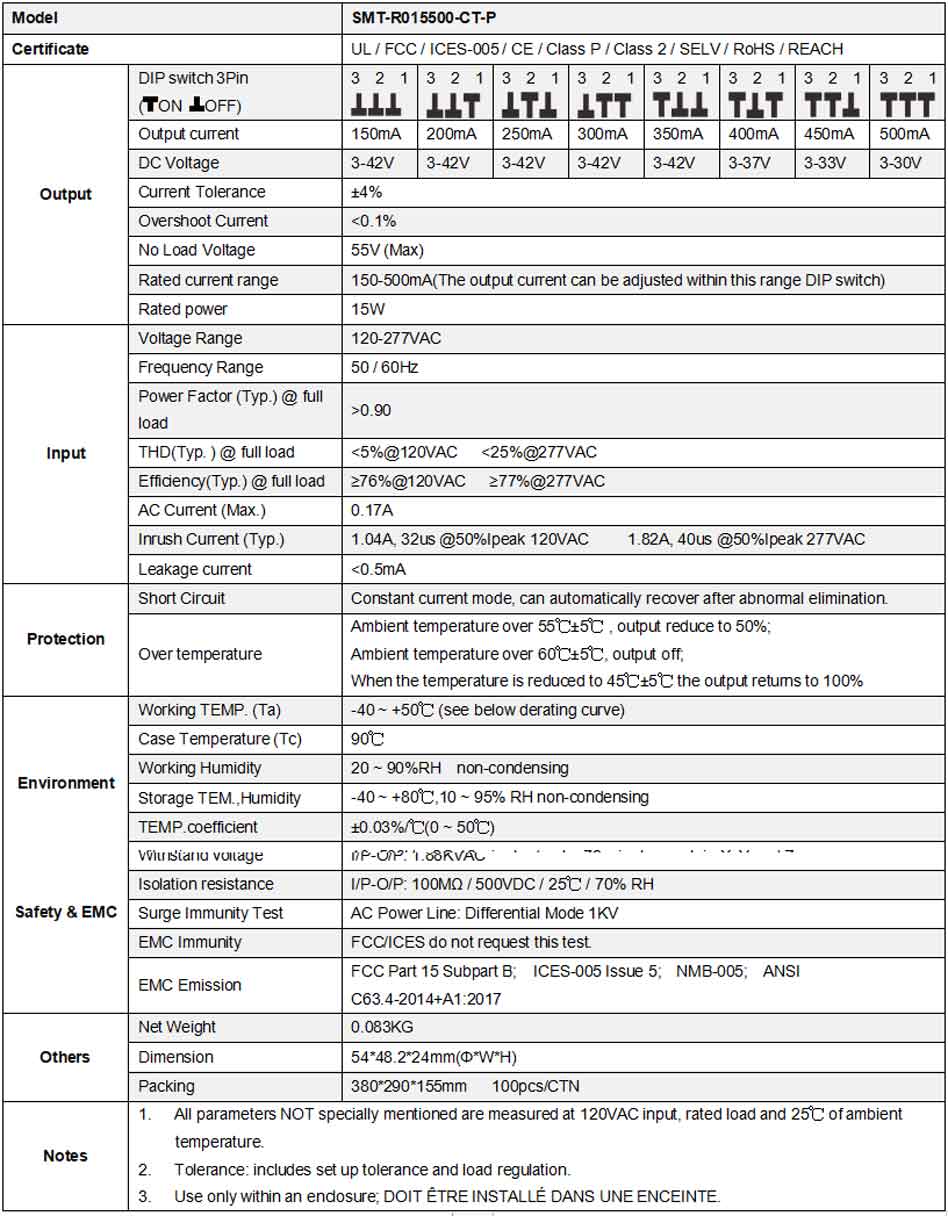

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|
This constant-current 10W LED power supply features a round plastic housing and is compatible with both TRIAC and 0-10V dimming. It is compact and designed for quick, easy installation, making it ideal for indoor LED lighting projects in confined spaces.
Model: SMT-R010450-CTD-P Input Voltage: 100-277Vac
Dimming Mode: 5 in 1 dimmable
|
