CE UL ROHS listed dimming led driver constant current 100ma 350ma

The led driver constant current 350ma is working well with the 7000k led downlight from  sunco lighting, smooth dimming and 7 years warranty.
  • Brand:

    SMARTS
  • Item No.:

    SMT-M-010CT
  • Input Voltage:

    100-277vac
  • Output Voltage:

    3~42vdc
  • Output Current:

    100~500mA
  • Working Mode:

    Constnat current
  • Dimming mode:

    Triac dimming
  • Size:

    135*30*20mm
  • Certification:

    CE ROHS
Products description

CE UL ROHS listed dimming led driver constant current 100ma 350ma


The triac dimming led driver is always PWM output with smooth dimming, and to be used well with the Panel LED Slim 60x60 of high quality of 5~8W of power for Batuled brand.

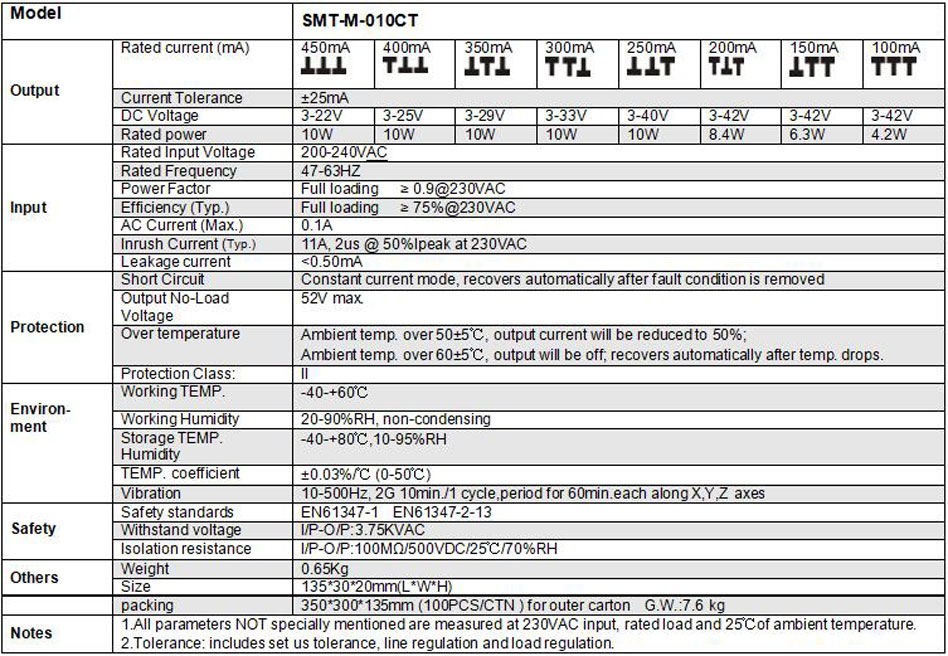

  Specification

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

  Mechanical Specification

triac dimming led driver



Input terminals "Black" and "White" to connect to AC L and N.

Output terminals "Red" to LED Positive side (+) , "Black"  to LED Negative side (-).

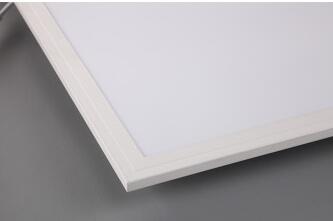

  Compatible LED Pannel Type

The dimming led driver constant current, which has a brightness of 3840 lumens, and with high energy efficiency with an energy saving of 86%, this implies a greater efficiency with respect to other panels.

They have a widespread use in offices, classrooms, hotels, restaurants, supermarkets, exhibition halls, museums, residences, et

dimmable constant current led driver





  Related Products


Smarts is specializing in various of UL listed led driver such as slim type, led driver with junction box, class P standard, type HL standard. For more needs, please let us know freely.




Mode:SMT-024-096VWSW

intput voltage:100~277V AC

Efficiency > 88%

Size:331*32*13mm   (L*W*H)

Weight:0.55Kg/pcs
