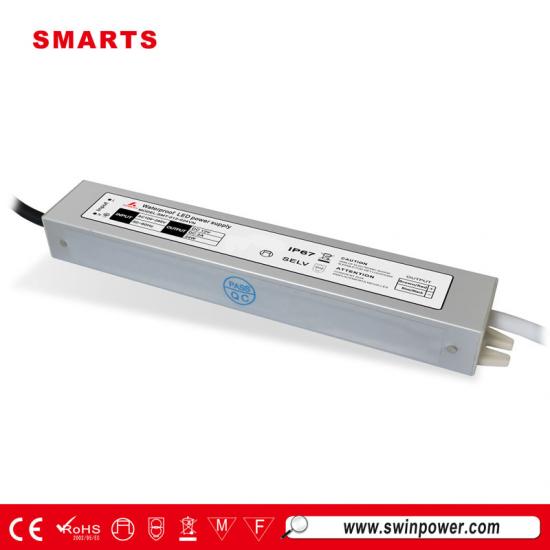

12v 2a 24w waterproof led power supply for led lighting
With Constant Voltage LED module only requires a fixed voltage often 12VDC or 24VDC. The current is usually constant byresistors that have been wired in series with the LED power driver or by an on built in regulator that the LED module may have.SMT-012-024VN Can be matched with Access 63961LEDD-ORB/FST
Feature
● IP67 design for indoor or outdoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Slim shape, compact size
● 2 years warranty
Specification
| SPECIFICAION | |||||
| MODEL | SMT-012-024VN | SMT-024-024VN | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 2A | 1A | |||
| CURRENT RANGE | 0~2A | 0~1A | |||
| RATED POWER | 24W | 24W | |||
| RIPPLE&NOISE(max) | <240mV | <240mV | |||
| voltage TOLERANCE | 12V±5% | 24V±5% | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| SETUP RISE TIME | 80ms/110VAC | 80ms/110VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110VAC | 60ms/110VAC | |||
| INPUT | VOLTAGE RANGE | 100~265Vac | 100~265Vac | ||
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | |||
| POWER FACTOR(Typ.) | no PFC | no PFC | |||
| EFFICIENCY(Typ.) | ﹥83% | ﹥84% | |||
| AC CURRENT(Typ.) | 0.35A/220V | 0.5A/220V | |||
| INRUSH CURRENT (Typ.) | COLD START 30A/110~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@130-150% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | |||||
| NOTE |
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||||
| Label |
 |
||||
 |
 |
 |
 |
 |
|
