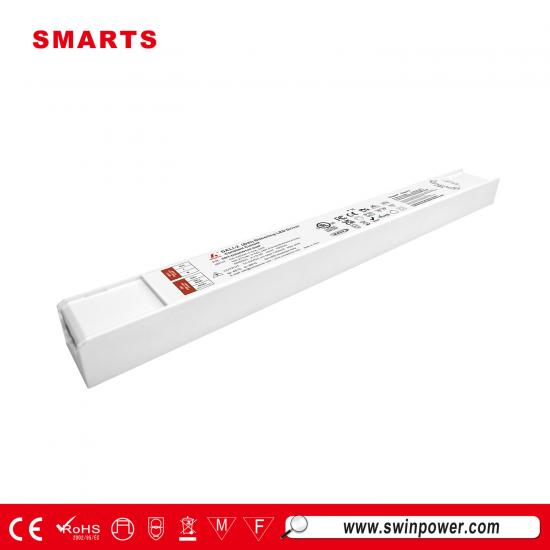

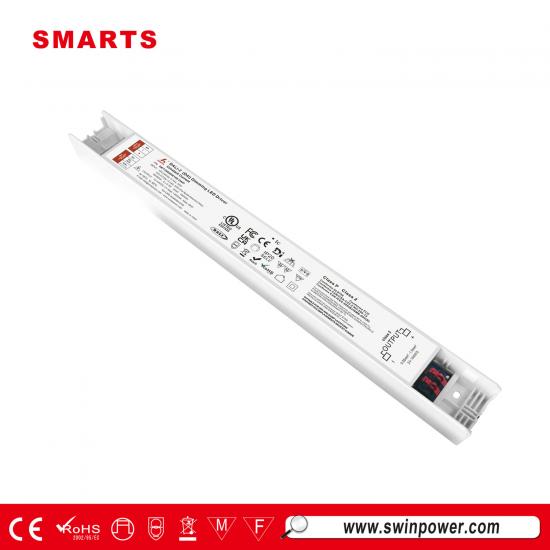

Ultra-thin plastic cabinet DALI-2 dimmable constant current led driver 40w 1400mA
SMARTS 40w constant current led power supply DALI-2 dimmable led driver 1400mA delivers smooth, stable, flicker-free dimming.Easy to install, mount, and wire. Included AC and DC cords can be removed for use in hard wire installations.
Specification
| Model | SMT-DI040W140-D4IP-YT | |
| Certificate | UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA | |
| Output | Rated current | 140mA-1400mA |
| DC Voltage | 12-54VDC | |
| Rated power | 60Wmax | |
| Voltage Tolerance | Output current ± 20mA | |
| Line Regulation | <0.1% | |
| Load Regulation | <0.1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) | >0.99@120VAC 60Hz >0.98@230VAC 50HZ >0.95@277VAC 60HZ | |
| No load power (Max) | <1.5W | |
| Standby power (Max) | <0.5W | |
| THD(Typ.) @ full load | <11%@120VAC <9%@230VAC <10%@277VAC | |
| Efficiency @ full load | >85.4%@120VAC 60Hz | |
| >86.8%@230VAC 50HZ | ||
| >86.8%@277VAC 60HZ | ||
| AC Current (Max.) | 0.41A@100VAC 60Hz | |
| Inrush Current (Typ.) | 28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V | |
| 66.5A, 259us@50%Ipeak@277V | ||
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | |
| Over temperature | Ambient temperature over 55℃±5℃ to reduce output to 50%; | |
| The ambient temperature drops to 45℃ ±5℃and automatically recovers. | ||
| Ambient temperature over 75℃±5℃ to reduce output to 0%; | ||
| The ambient temperature drops to 45℃ ±5℃and automatically recovers. | ||
| Environment | Working TEMP | -40~+50℃ (see below derating curve) |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Strobe test standard | IEEE 1789 Flicker free | |
| Surge Immunity Test | AC Power Line:Differential Mode 2 kV, Common Mode 4 kV | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |
| Others | Net Weight | 255g |
| Dimension | 296.7*30*21.7mm (L*W*H) | |
| Packing | 32*24.5*298mm 50pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | ||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||
|
|
 |
 |
 |

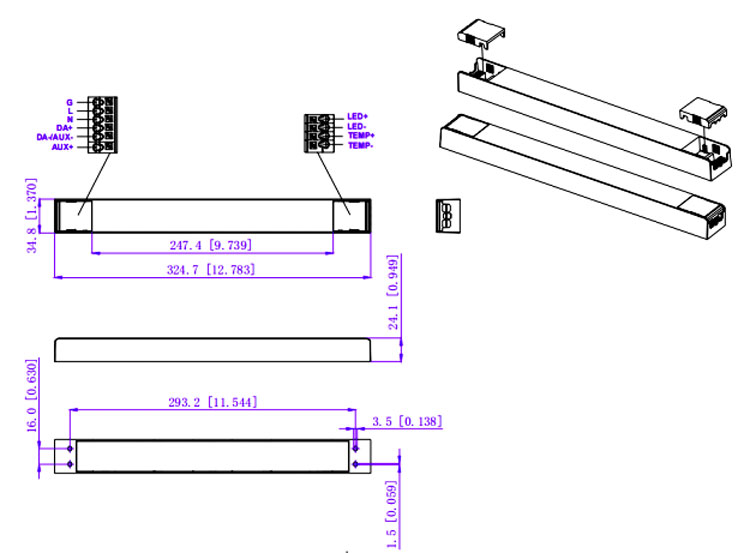

Mechanical Specification
MCB recommendation：
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 15 |
| 13A | 19 | |
| 16A | 24 | |
| 20A | 30 | |
| 25A | 37 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 29 |
| 13A | 38 | |
| 16A | 47 | |
| 20A | 59 | |
| 25A | 66 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 34 |
| 13A | 44 | |
| 16A | 54 | |
| 20A | 68 | |
| 25A | 85 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

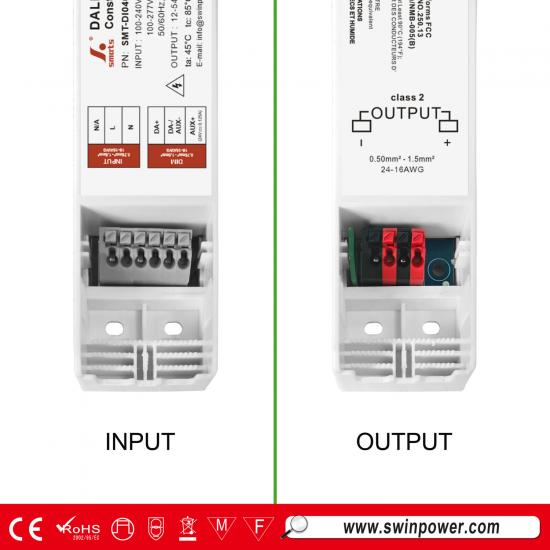

| Globle wire gauge | |
| LD30 | |
| Input wire and Dimming wire | Gray terminals 6P (0.2mm2-1.5mm2/24-16AWG) |
| Output wire and External temperature | Red/Black terminals 4P (0.2mm2-1.5mm2/24-16AWG) |
| wire | |
| Remarks:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Connecting Diagram
Note：
1.The model name SMT-DI020W070-D4IP-YT means that there is an auxiliary power supply and lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Dimming Operation
|

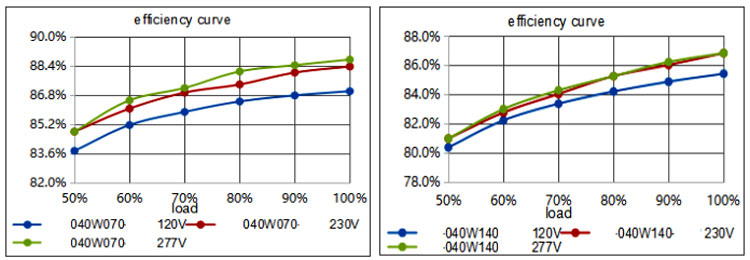

Efficiency Curve (efficiency vsoutput load): |

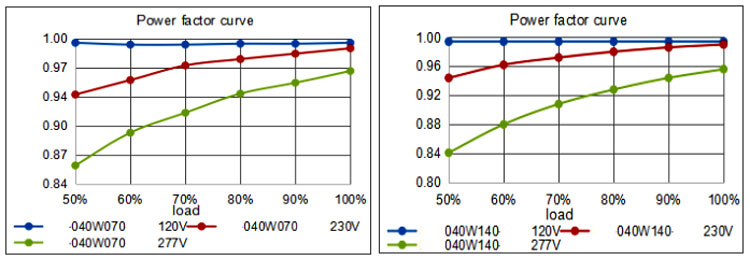

Power factor curve(Power factor vs output load)： |

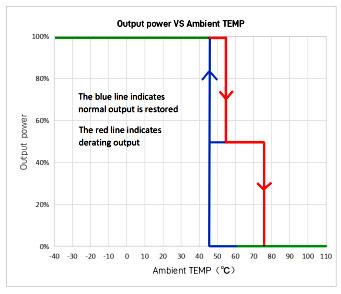

Derating Curve (Output power VS Ambient TEMP)： |
 |
 |
 |
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature. Normally, we recommend the power supply to reserve a certain
amount of load to extend LED driver’s life .
Temperature derating curve of lamp：
1. This figure shows the protection curve when the recommended model of the lamp temperature sensor is NCP18XH103J03RB(muRata) and the external temperature protection parameters on the APP
are factory default.
2. If the models of thermistors are is not NCP18XH103J03RB(muRata) , Please check the relevant parameters of lamp temperature protection on the APP.
3. If the lamp temperature sensor is not connected, please keep the parameters of the lamp temperature protection section on the APP as default and keep cables away from live bodies.
Related Products
|

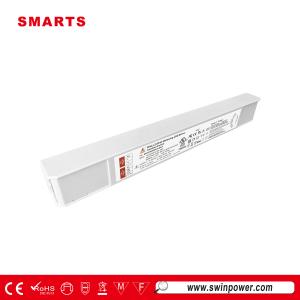

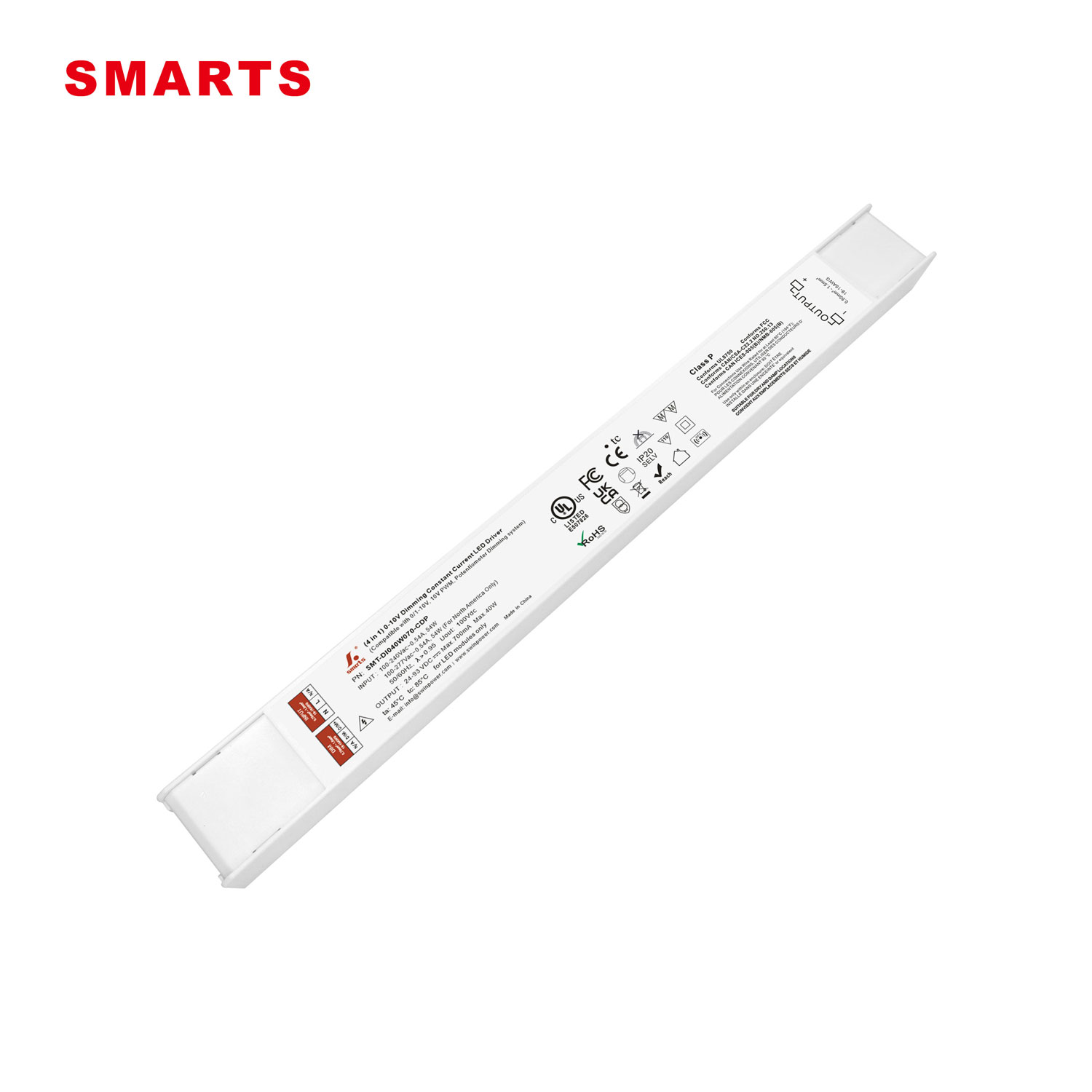

IP20 constant current led power supply 0-10v dimmable led driver 40w equipped with advanced safety features such as short circuit protection, overcurrent protection, over-voltage protection, low-voltage protection, and auto-recovery mode.
