CE triac dimming 12v 80w IP67 outdoor power supply for led strip lights
SMT-012-080VTHWH ip67 power supply is able to withstand low-pressure water injection in all direction. Available in 12VDC and 23VDC versions. All the range provide IP67 protection. Most dimmers is compliant like MALMBERGS HD2200
Specification
|
model |
SMT-012-080VTHW |
SMT-024-080VTHW |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
||
|
Rated current |
6.66A |
3.33A |
|
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Rated power |
80W |
||
|
Input |
Voltage Range |
100~277VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
||
|
Full Load Efficiency(Typ.) |
>82% |
||
|
AC Current（Typ.） |
1.33A/110VAC |
||
|
Inrush Current（Typ.） |
20A, 50%, 1.6ms |
||
|
Leakage current |
﹤0.5mA/110V |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault conditionisremoved |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz,2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
NetWeight |
1.05Kg |
|
|
Size |
230*70*43mm (L*W*H) |
||
|
packing |
329*279*176mm ,10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
■ Mechanical Specification:
ü Input Rubber wire 3*18AWG Black and White to be connected to AC L and N ,Green wire go ground,
ü Output Rubber wire, 2*16AWG Red to LED Positive side (+) , Black to LED Negative side (-).
■Dimming Operation
ü The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
ü Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
ü Please try to use dimmers with power at least 1.5 times as the output power of the driver.
■Derating Curve
ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
■ Simple Connection Diagram

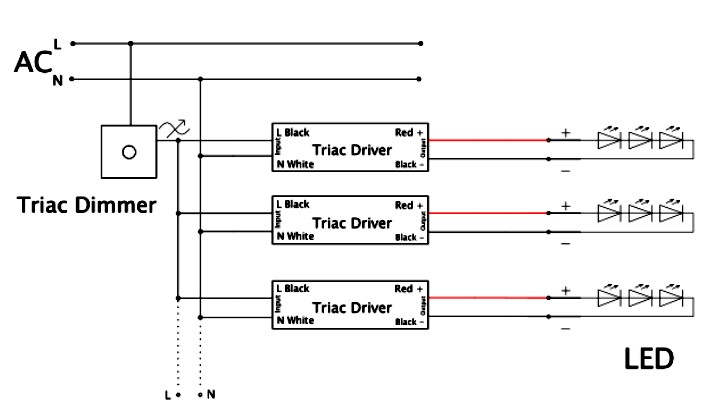

■Connecting Diagram
■Instruction:
ü This driver should be installed by qualified and professional person;
ü Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
ü Ensure that wiring is correct before test in order to avoid light and power supply damage;
ü If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251
Official website: www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type
This 220vac dimmable led driver is easy to install, mount, and wire. This high quality triac dimmable driver controls 12V LED lights with smooth consistent dimming, free of flicker. AQ lighting LED strip is alternative.
|
