dali dimmable led driver 12 volt power supply for led strips
Automatic protection for Short circuit / overload / over voltage / over current / over temperature.
Protection type: Hiccup mode, auto-recovery after fault condition is removed
Wide Range of LED Power Supply : suitable for LED light bars of LEPOWER, LED bulbs, outdoor lights and any 12V DC LED lights.
Specification
Model
SMT-012-030VM
SMT-024-030VM
SMT-036-030VM
SMT-048-030VM
output
DC Voltage
12V
24V
36V
48V
Voltage Tolerance
±0.5V
Rated current
0～2.5A
0～1.25A
0～0.833A
0～0.625A
Rated power
30W
input
Voltage Range
100~130VAC, 170~265VAC
Frequency Range
47～63HZ
Power Factor （Typ.）
PF≧0.90/110V / PF≧0.90/220V
Efficiency（Typ.）
>88%
>88%
>88%
>88%
AC Current（Typ.）
0.34A@110VAC
0.17A@220VAC
0.15A
Leakage current
﹤0.40mA/110VAC / ﹤0.50mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed
Over Loading
≦120%
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH, non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
EN55015,EN61000-3-2,3 (≧50%loading)
EMC IMMUNITY
EN61000-4-2,3,4,5,6,11(Surge 4KV）
Others
Net.Weight
0.55Kg
Size
180*60*34mm（L*W*H）
packing
355*215*215mm/20pcs/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
Label

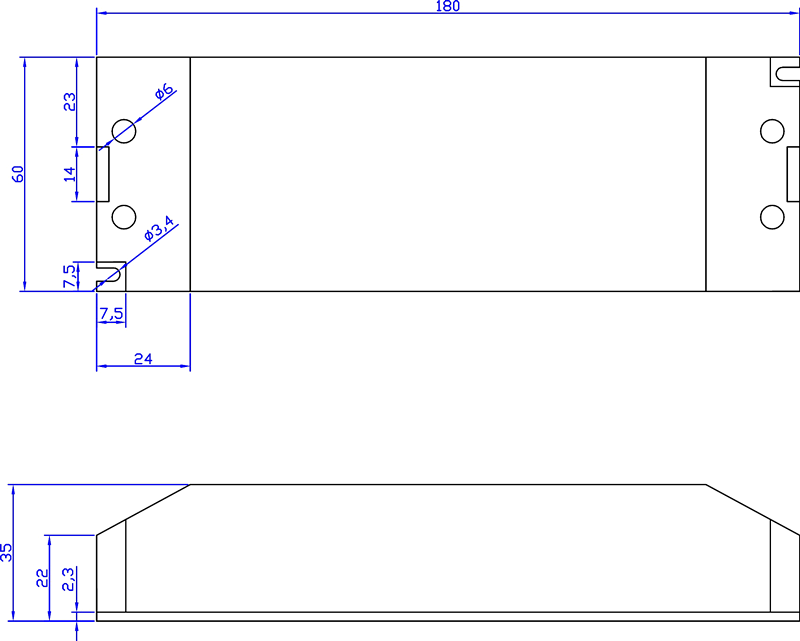

Mechanical Specification
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Opreation reference
Instruction
1)This driver should be installed by qualified and professional person;
2)Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3)Ensure that wiring is correct before test in order to avoid light and power supply damage;
4)If driver Cannot work normally, don’t maintain privately; Have any question, please contact: sales1@smarts-electronics.com Thanks.
