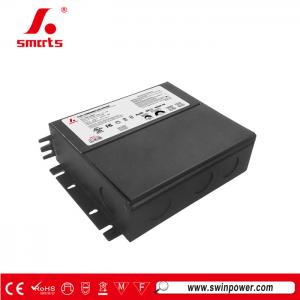

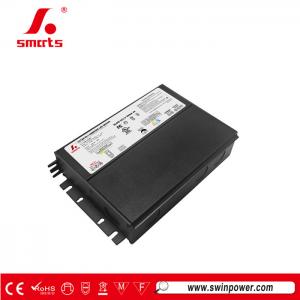

Specification                                           Model SMT-012-300VTHWH SMT-024-300VTHWH Output DC Voltage 12V 24V Voltage Tolerance ±0.5V Voltage Regulation ±0.5% Voltage Tolerance ±0.5V Load Regulation ±2% ±1% ±1%   Rated current 25.0A 12.5A Rated power 300W Input Voltage Range 220-240VAC Frequency Range 47～63HZ Power Factor（Typ.） PF≥0.95（Full loading） Full Load Efficiency（Typ.） >88% >90% AC Current（Typ.） 2.0A 1.76A .A 1.74A Leakage current <0.50mA Protection Short Circuit No output, remove the fault and re-power on to recover Over load ≤120% Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover Environment Working TEMP. -40～+60℃ Working Humidity 20～90%RH,non-condensing Storage TEM.,Humidity -40～+80℃，10～95%RH TEMP.coefficient ±0.03%/℃（0～50℃） Vibration 10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes       Safety&EMC Safety standards EN61347-1 EN61347-2-13 Withstand voltage I/P-O/P:3.75KVACI/P-FG:1.88KVAC O/P-FG:0.5KVAC  Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH EMC EMISSION EN55015,EN61000-3-2,3 (≥60%loading) EMC IMMUNITY EN61000-4-2,3,4,5,6 ,11,EN61547 Others Weight 1.67kg Size 276*78*47mm(L*W*H) packaging 336*121*61mm inner box,350*310*260mm outside carton 10PCS /CTN   Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3. Loading range from 10% to 100%    ■Mechanical Specification   MODEL:   SMT-012-300VTHWH                                                                                                          Model:   SMT-024-300VTHWH   Ø Input Rubber cable H05RN-F 3*1.0mm² ,the green /yellow cable connect with (FG),Brown with AC (L),Blue with AC(N) Ø Output Rubber cable H07RN-F 2*1.5mm²,Red is output(V+) Positive,Black is output (V-) negative.Connected to LED Lamps. Ø  Note:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.   ■Dimming Operation  Ø Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer. Ø Compatible with Leading edge and tailing edge triac dimmers.  Ø Please use a dimmer with max. power at least 1.5 times than the load. ■Derating Curve     Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.     ■ Simple Connection Diagram Or   ■Connecting Diagram                                                                                                                                                                                                                 ■ Instruction: ※This driver should be installed by qualified and professional person; ※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation. ※Ensure that wiring is correct before test in order to avoid light and power supply damage; ※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: [email protected]  Or take a phonecall: 0086-595-22863721 ext.808      Official website:  www.smarts-electronics.com   &   www.swinpower.com

Constant Voltage 150W 1-10v dimmable led driver can effectively power Super Bright 24V comfort tape lights, strip lights, light bars, and more. This power supply has a separate junction box, as well as short-circuit, overload, and over-temperature protection.

12V 300w UL approval enclosed 0 10 volt dimming led driver to be used with Nora Lighting’s 12V LED Standard Tape Light and 12V LED Puck Light.

We are led driver manufacturer usa for dimmble and non dimmable led driver and many of them coud be matched well with First LED Lighting.

Smarts' s driver led 12v 150w is create and innovative for wide dimming range of the Viltrox LED panel.

Smarts led drivers for strip lights are ideal for internally and externally applications or where resistance to water is required.The led driver is fully sealed which it is safe to touch. Most of dimmers can be chose such as PHILIPS SED-200A.

LED Drivers, also called "Power Supplies" or "Transformers,  Use our UL Listed Universal slim size triac dimmable led driver to dim your LED Strip Lights using any standard dimmer switch! Auragami was the world’s first flexible light sheet that maintained its UL Listing even after being cut. SINGLE COLOR WHITE (AG1-24-53) can be work with wholesale triac dimmable led driver of Swinpower.

This slim power supply features a universal input range of 120-277V and has a maximum load of 100W. This 12V 24V (CLASS 2) 100w led outdoor christmas tree power supply has surge, short circuit and overload protection. This 12v constant voltage led dc power supply is UL/cUL recognized for wet dry or damp locations. cUL/UL Classified Kits(VKMUNV008RDyxxA) from Fulham Co. Inc are suited for either field installation or factory retrofits and feature 0-10V dimming LED Driver from Swinpower.
