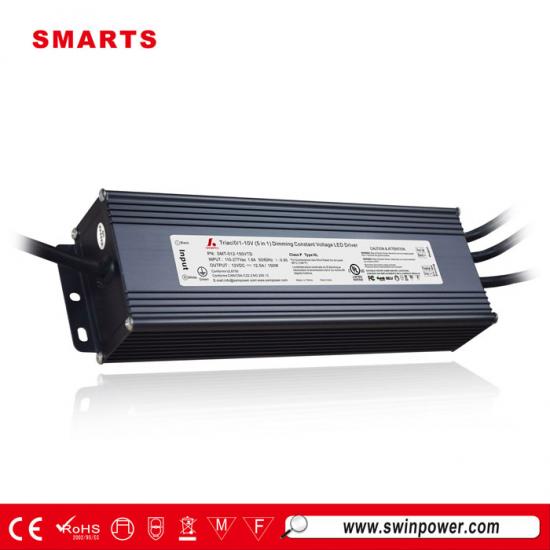

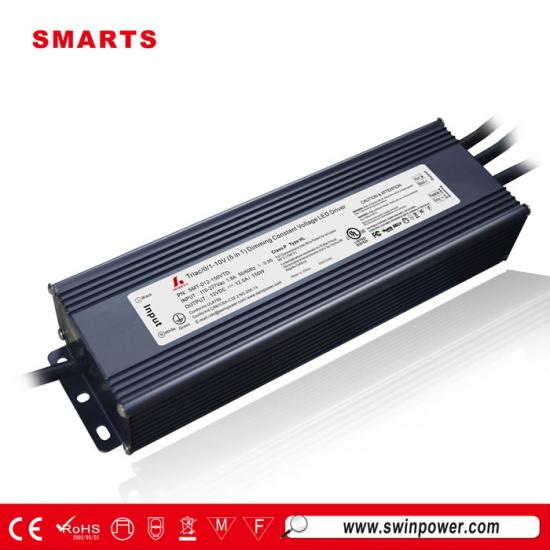

UL cUL approval 12v 150w 0 10v dimming pwm dimmable led driver IP67 version

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-150VTD
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC 24VDC
  • Output Current:

    12.5A 6.25A
  • Working Mode:

    constant voltage
  • Dimming mode:

    Triac + 0-10v dimming
  • Size:

    256*78*47mm
  • Certification:

    UL cUL
Products description



Specification

model

SMT-012-150VTD

SMT-024-150VTD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

12.5A

6.25A

Voltage Regulation

±0.5%

Load Regulation

±2 %

±1 %

Rated power

150W

150W

Input

Voltage Range

100~277V AC

Frequency Range

47~63HZ

THD(Typ.) @full load

<20%

Power Factor ( Typ.)

0.98@120VAC  0.95@277VAC

0.97@120VAC  0.94@277VAC

Full Load Efficiency(Typ.)

85%@120VAC   86%@277VAC

85%@120VAC   87%@277VAC

AC Current(Typ.)

1.8A/110VAC

Inrush Current(Typ.)

15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault condition removed

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.



Over Loading

≤120% constant current limiting, auto-recovery

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750 , CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

NetWeight

1.5Kg

Size

256*78*47mm(L*W*H)

packing

340*280*185mm    10pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

■ Mechanical Specification:



ü Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC

ü Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-). noted that 12V 200W is with 2 group of  2*16AWG output wires to separate the output current.)

ü Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

ü Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

ü Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

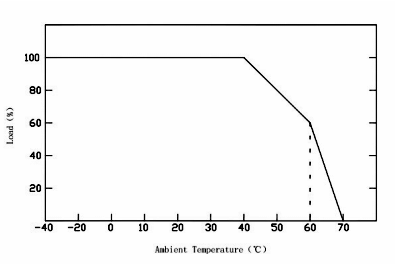

Ø Derating Curve



ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.

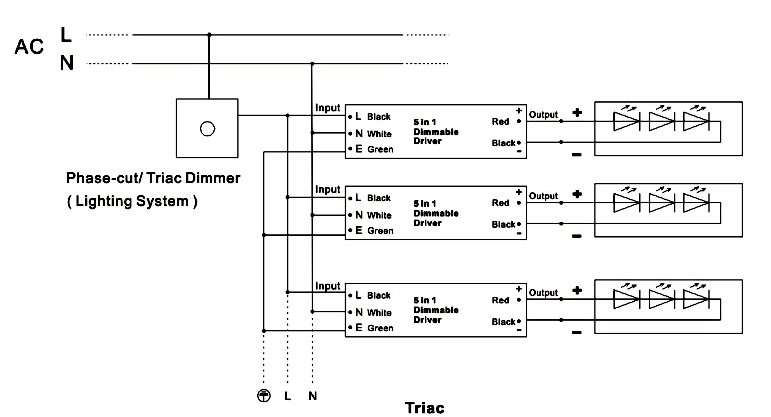

Ø Dimming Operation and Connecting Diagram

窗体顶端

ü Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;



u Using one dimming ---TRIAC/Phase cut dimming

1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2. Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers

3. Min loading is about 10%

4. Please try to use dimmers with power at least 1.5 times as the output power of the driver.









Ø Instruction:

l This driver should be installed by qualified and professional person;

l Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

l Ensure that wiring is correct before test in order to avoid light and power supply damage;

l If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com  Or take a phonecall: 0086-595-22863721 ext.808

Official website: www.smarts-electronics.com   &   www.swinpower.com




  Compatible Dimmer Type


SMARTS's UL Triac Dimmable LED Driver have been tested for compatibility dozens of brands dimmer.such as LEVITON/LEGRAND/LUTRON dimmer
