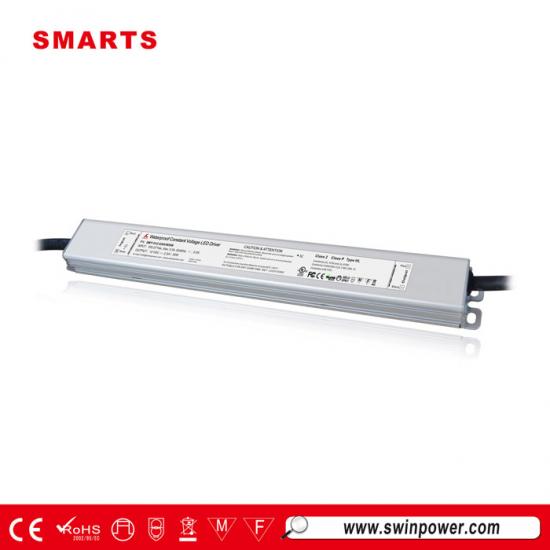

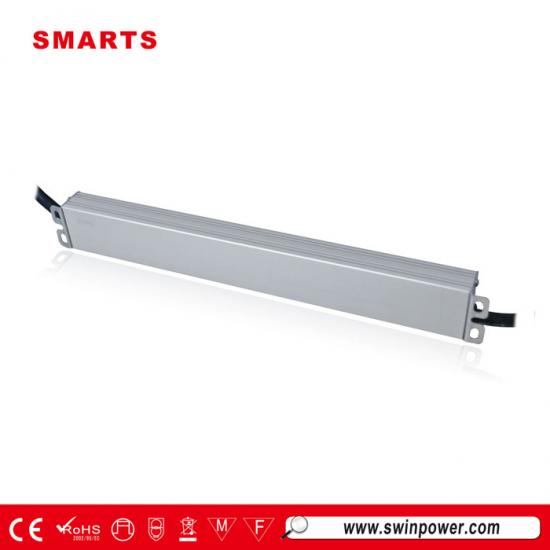

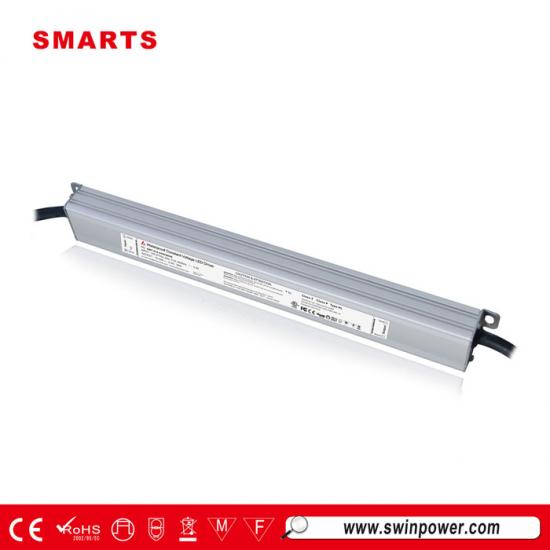

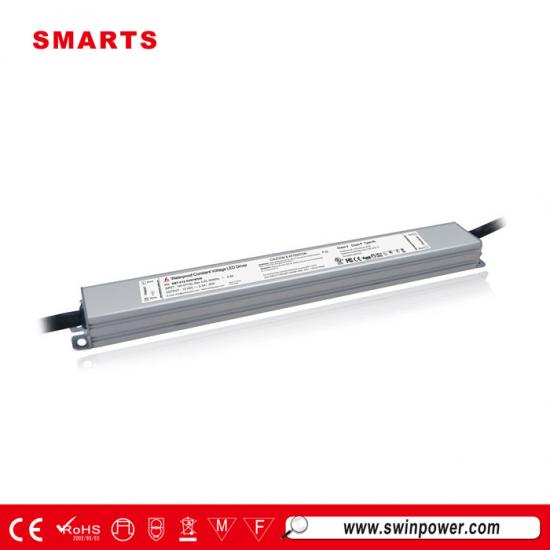

CE 12v dc constant voltage ip67 led driver for led downlight

The led driver is no load limitation and about dimming mode is  triac dimmable. This led power supply 12v is reliable, long-lasting,Can effectively protect Topaz LED Linear T5 lamps and make the lamp life longer

Led transformer is a power regulator. From technically to say it is a circuit which is responsible for regulating and supplying the ideal current to the LED SMT-012-045VN has strong compatibility and can be compatible with multiple brands of Ceiling Light. For example: Access 23089LEDD3FC-ORB Ceiling Light

The CCT triac & 0.10v dimmable LED driver has a built-in NFC smart programming module that allows you to switch between single-color lighting and CCT warm light via NFC. It has a universal input voltage range of 100-277VAC and complies with global safety lighting regulations and comes with a 7-year warranty.

                  Specification:                                   model SMT-012-200VTD SMT-024-200VTD Output DC Voltage 12V 24V Voltage Tolerance ±0.5V Voltage Regulation ±0.5% Rated current 16.66A 8.33A Load Regulation ±2% ±1% Rated power 200W 200W Input Voltage Range 100~277V AC Frequency Range 47～63HZ THD(Typ.) @full load <20%@120VAC &277VAC Power Factor ( Typ.） 0.98@120VAC   0.97@277VAC 0.98@120VAC   0.95@277VAC Full Load Efficiency(Typ.) 84%@120VAC   87%@277VAC 85%@120VAC   88%@277VAC AC Current（Typ.） 2.3A Inrush Current（Typ.） 15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC Leakage current <0.5mA Protection Short Circuit shut down o/p voltage, re-power on to recover afterfault condition removed. Over temperature 100℃±10℃ shut down o/p voltage,automatically recover after cooling.   Over Loading ≤120% constant current limiting, auto-recovery Environment Working TEMP. -40～+60℃ Working Humidity 20～90%RH,non-condensing Storage TEM.,Humidity -40～+80℃，10～95%RH TEMP.coefficient ±0.03%/℃（0～50℃） Vibration 10～500Hz，2G 10min./1 cycle，period for60min. each along X,Y,Z  axes Safety&EMC Safety standards UL8750 , CAN/CSA-C22.2 No.250.13   Withstand voltage I/P-O/P:1.88KVac  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH  EMC EMISSION FCC 47 CFR Part 15 ,Subpart B  Others NetWeight 1.5Kg Size 256*78*47mm (L*W*H)     packing 329*279*176mm ,10PCS/ctn Notes 1. All parameters NOT specially mentioned are measured at120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. ■ Mechanical Specification:                                       ü Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC ü Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-). noted that 12V 200W is with 2 group of  2*16AWG output wires to separate the output current.) ü Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-) ü Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection. ü Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.   Ø Derating Curve    ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.         Ø Dimming Operation and Connecting Diagram    ü Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming; ² Using one dimming ---TRIAC/Phase cut dimming 1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system. 2. Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers  3. Min loading is about 10% 4.  Please try to use dimmers with power at least 1.5 times as the output power of the driver.   Ø Instruction: l This driver should be installed by qualified and professional person; l Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation. l Ensure that wiring is correct before test in order to avoid light and power supply damage; l If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com  Or take a phonecall: 0086-595-22863721 ext.808   Official website: www.smarts-electronics.com  &  www.swinpower.com     Compatible Dimmer Type   SMARTS's UL Triac Dimmable LED Driver have been tested for compatibility dozens of brands dimmer.such as LEVITON/LEGRAND/LUTRON dimmer   Related Products   24v dimmable led driver 96W are UL CE ROHS approval.it is widely used in various industries, such as:INdoor LED illuminating lights,LED Neon,LED City Decoration,LED Lighting Advertising,LED Display,Safety Protection Apparatus....... Mode：SMT-024-096VTHW intput voltage：100~277V AC Efficiency > 82% Size：230*70*46mm   （L*W*H） Weight：1.1Kg/pcs

220vAC dimmable driver are 3 years warranty longer service life than done 12W power supply, if there is any defective happen (normal using) during the warranty period, we promise to give replacement (the same item)

Smarts have two kinds of dali dimmable led driver, one is constant voltage, the other is constant current. it's 100-265vac with ETL/cETL,CE,FCC,ROHS listed.SMARTS DALI constant current power supply 1050ma is commonly used in LEPOWER’s LED floodlight 220v.
