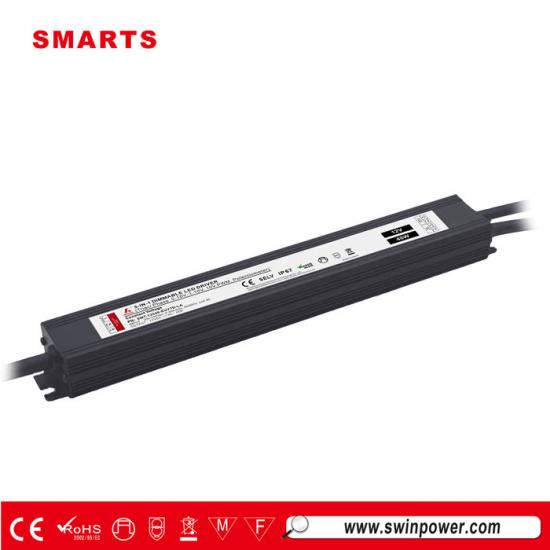

waterproof ip67 constant voltage triac & 0 10v dimmable led power supply 12v 24v 36w
Support 200-240VAC wide voltage input triac & 0 10v dimmable 48W led power supply with built-in active PFC function. Energy-saving and stable. Waterproof grade ip65, suitable for outdoor humid space lighting projects.
Specification
| Model Number | SMT-12048-EUVTD-LA | SMT-24048-EUVTD-LA | |
| Output | Rated Power | 48W | |
| Rated Voltage | DC12V | DC24V | |
| Rated Current | 4A | 2A | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 200-240V | |
| Frequency Range | 47-63Hz | ||
| Efficiency (Typ.) | 84%@230VAC | 85%@230VAC | |
| THD | THD≤20% (@100% load) | ||
| Power Factor (Typ.) | 0.95@ 230VAC (full loading) | ||
| AC Current (Typ.) | 0.25A | ||
| Inrush Current (Typ.) | <20A | ||
| Leakage Current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Protection Class | I | ||
| Environment | Working Temp. | Tcase=-40℃ ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working Humidity | 20 ~ 95% RH non-condensing | ||
| Storage Temp. Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp. Coefficient | ±0.03%/℃ (0~50℃) | ||
| Vibration | 10-500Hz,2G 12 minutes/cycle, Period 72 minutes each along X,Y,Z axes | ||
| Safety & EMC | Safety Standards | EN613471, EN61347-2-13 | |
| Withstand Voltage | I/P-O/P:3KVAC I/P-shell:1.5KVAC O/P-shell:0.5KVAC | ||
| Isolation Resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMS | EN61000-3-2; EN61000-3-3; EN61547 | ||
| EMF | EN62493-2010 | ||
| Others | IP Rating | IP65 | |
| Weight | 0.35Kg | ||
| Size | L262xW34xH21mm | ||
|
|
 |
 |
 |

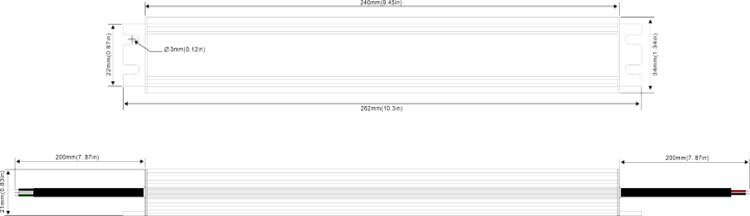

Mechanical Specification
MCB recommendation：
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 18 | |
| 25A | 23 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 24 |
| 13A | 32 | |
| 16A | 40 | |
| 20A | 50 | |
| 25A | 62 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Derating Curve
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
(The driver input is connected to the dimmer.)
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
(The driver is independently connected to the input.)
Dimming Operation
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
Related Products
|

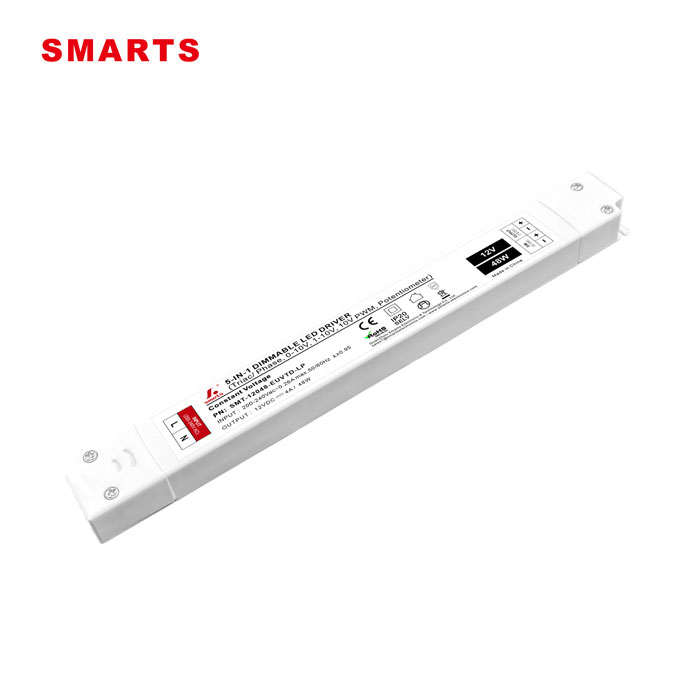

Constant voltage 48W triac & 0 10v dimmable led driver with built-in active PFC function. PWM output mode 4000Hz constant frequency ensures no flicker. Supports various dimmers. With 7 years warranty
