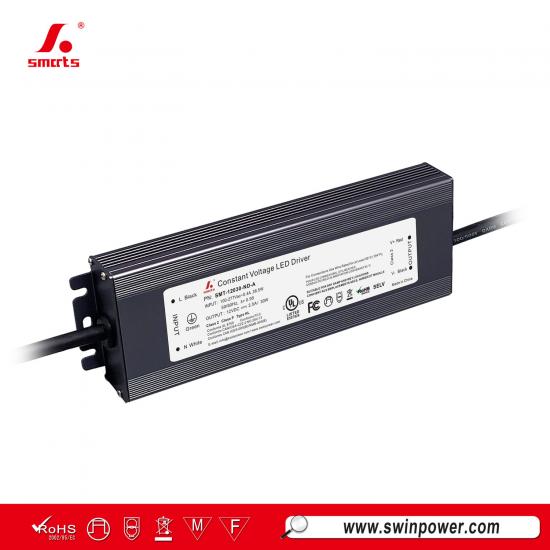

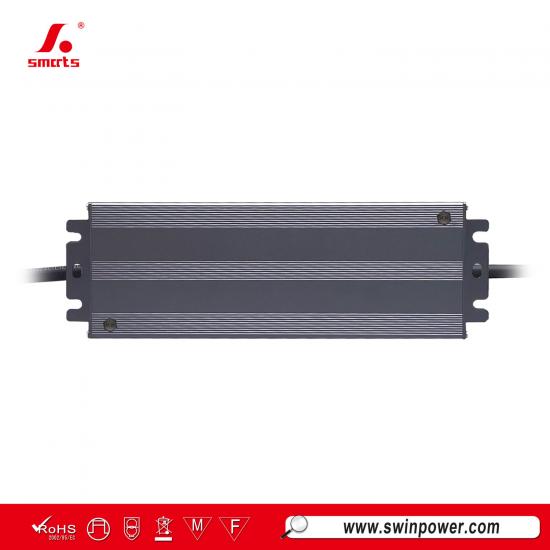

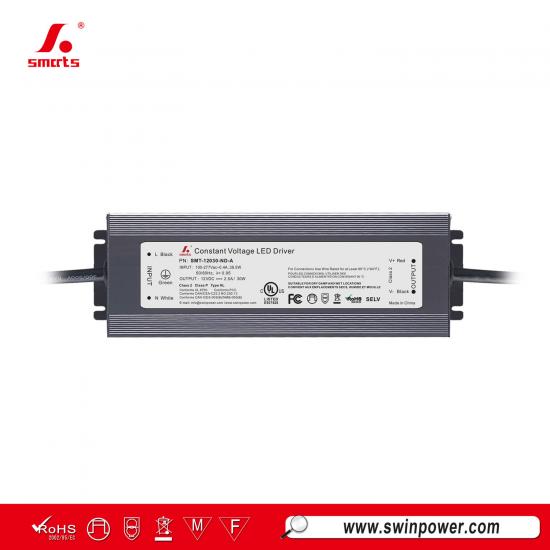

constant voltage Non dimmable led driver led lights 12v 24v 30w for sale
This constant-voltage LED power supply features a non-dimmable mode and a full-aluminum housing design. Boasting an operating efficiency of up to 84.5% and an exceptionally long 7-year warranty, it is UL-certified and primarily marketed to the North American region.
Specification
| Model | SMT-12030-ND-A | SMT-24030-ND-A | SMT-48030-ND-A | |
| Certificate | UL / cUL / FCC / Class P / Type HL / Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±5% | ±3% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤1% | ≤1% | |
| Rated current | 2.5A | 1.25A | 0.63A | |
| Rated power | 30W | |||
| Voltage Ripple | 500mVp-p | 400mVp-p | 350mVp-p | |
| Overshoot voltage | <10%(full load) | <10%(full load) | <10%(full load) | |
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.95@120VAC |
>0.98@120VAC >0.95@120VAC |
>0.98@120VAC >0.95@120VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | |||
| Efficiency(Typ.) @ full load |
≥79%@120VAC ≥80.5%@277VAC |
≥81%@120VAC ≥83.5%@277VAC |
≥83.5%@120VAC ≥84.5%@277VAC |
|
| AC Current (Max.) | ≤0.4A @120VAC ≤0.16A@277VAC | |||
| Inrush Current (Typ.) | 25A,120us@50%Ipeak 120VAC 60A,136us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | ||
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | |||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40-+80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | |||
| EMC Immunity | FCC/ICES do not request this test | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | |||
| Others | Net Weight | 0.45kg | ||
| Dimension | 166.9*61.4*25.5mm(L*W*H) | |||
| Packing | 415*230*170mm 20 pcs / CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||||
| 4. Default states:The dimming curve is a gamma2.2 curve. | ||||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |

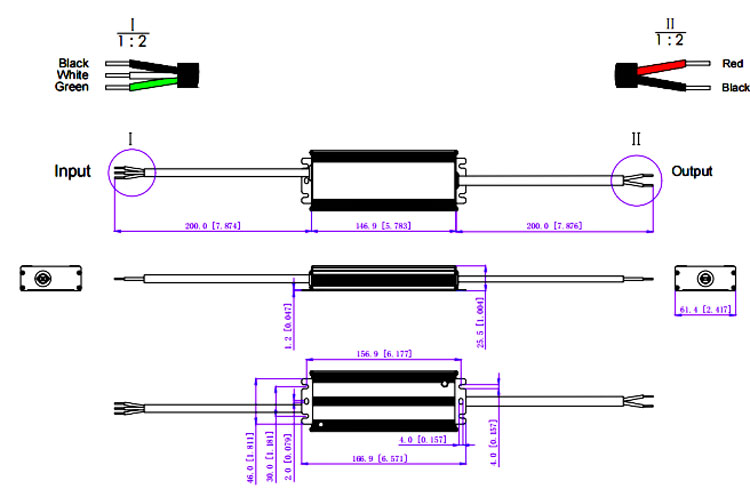

Mechanical Specification
MCB recommendation：
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 35 | |
| 25A | 45 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 45 |
| 13A | 58 | |
| 16A | 72 | |
| 20A | 89 | |
| 25A | 112 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ° C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

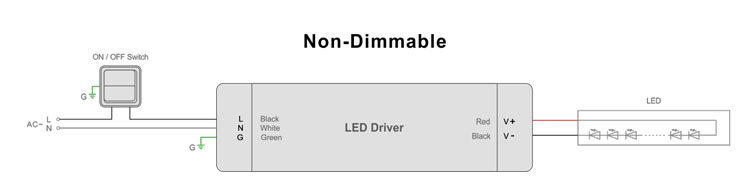

Dimming Operation
Related Products
|

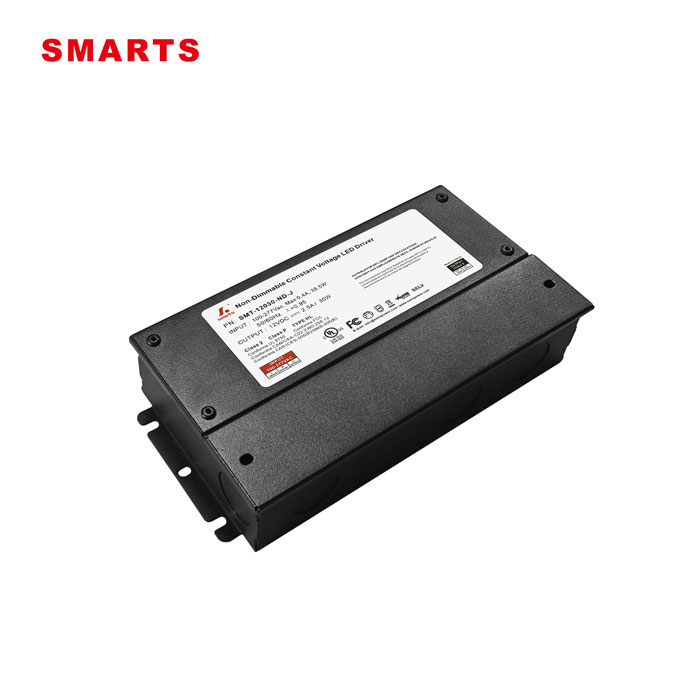

This non-dimmable LED power supply 30W features an integrated design with a junction box and a full-metal housing, ensuring excellent heat dissipation, and comes with a 7-year warranty.
Model: SMT-12030-ND-J Input Voltage: 100-277Vac
Dimming Mode: Non dimmable
|
