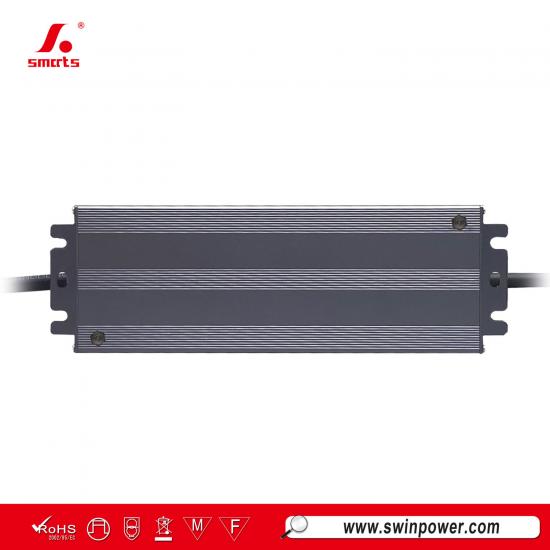

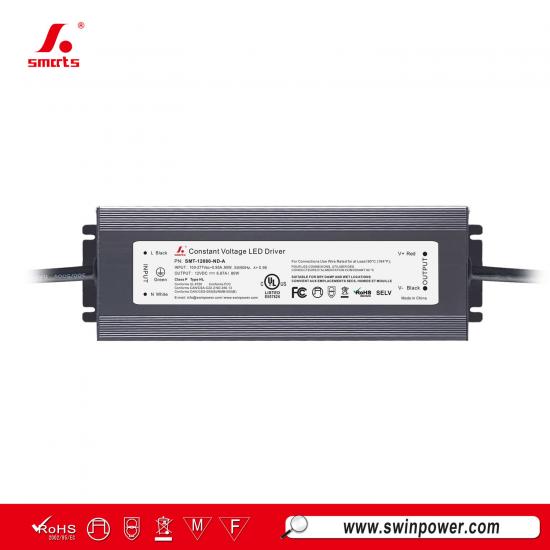

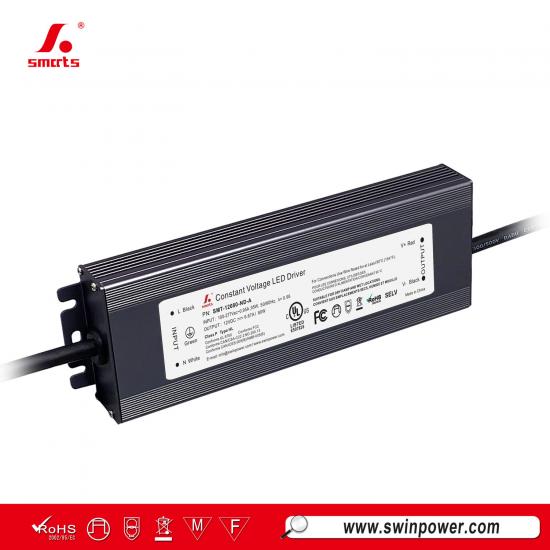

100-277vac Non dimmable constant voltage led driver 12v 24v 80w waterproof ip67
This 80W constant-voltage, non-dimmable LED driver features built-in active PFC functionality and achieves an operating efficiency of up to 91%. Housed in a full aluminum casing, it is ideally suited for outdoor lighting applications in commercial settings. It comes with an exceptionally long 7-year warranty.
Specification
| Model | SMT-12080-ND-A | SMT-24080-ND-A | SMT-48080-ND-A | |
| Certificate | UL / cUL / FCC / Class P / Type HL / Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±4% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤4% | ≤4% | ≤2% | |
| Rated current | 6.67A | 3.33A | 1.67A | |
| Rated power | 80W | |||
| Voltage Ripple | 400mVp-p | 296mVp-p | 176mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | |||
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load | >0.98@120VAC | >0.98@120VAC | >0.98@120VAC | |
| >0.96@277VAC | >0.96@277VAC | >0.96@277VAC | ||
| THD(Typ. ) @ full load | <15%@120V <15%@277V | |||
| Efficiency(Typ.) @ full load | ≥88.0%@120VAC | ≥88.4%@120VAC | ≥89.2%@120VAC | |
| ≥91.4%@277VAC | ≥92.0%@277VAC | ≥91.8%@277VAC | ||
| AC Current (Max.) | ≤0.83A @120VAC ≤0.38A@277VAC | |||
| Inrush Current (Typ.) | 51A@50%Ipeak 208us @120VAC,118A@50%Ipeak 452us @277VAC. | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | ||
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | |||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 ~ +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | |||
| EMC Immunity | FCC/ICES do not request this test | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | |||
| Others | Net Weight | 0.56KG | ||
| Dimension | 188*61.4*25.5mm(L*W*H) | |||
| Packing | 415*230*170mm 20 pcs / CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since | ||||
| EMC performance will be affected by the complete installation, the final equipment manufactures must | ||||
| be-qualify EMC Directive on the complete installation again. | ||||
| 4. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |
Mechanical Specification
MCB recommendation：
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 35 | |
| 25A | 45 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 45 |
| 13A | 58 | |
| 16A | 72 | |
| 20A | 89 | |
| 25A | 112 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ° C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
Related Products
|

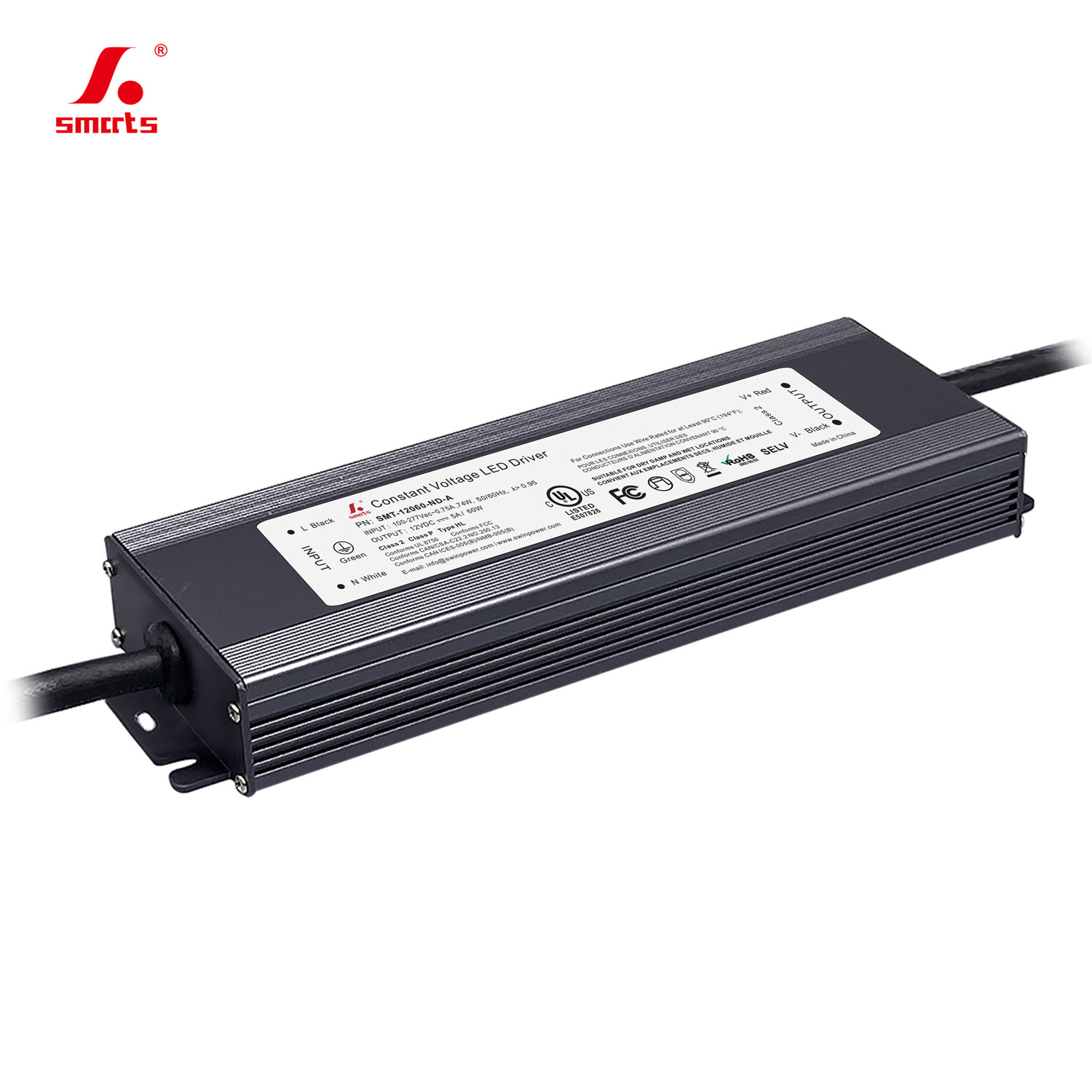

Featuring an aluminum housing design, this 60W non-dimmable LED power supply offers short-circuit, over-temperature, and overload protection. Operating in constant voltage mode, it achieves an impressive efficiency of up to 91% and comes with an extended 7-year warranty.
