20W Round Shape TRIAC & 0 10V dimmable constant current led driver for indoor

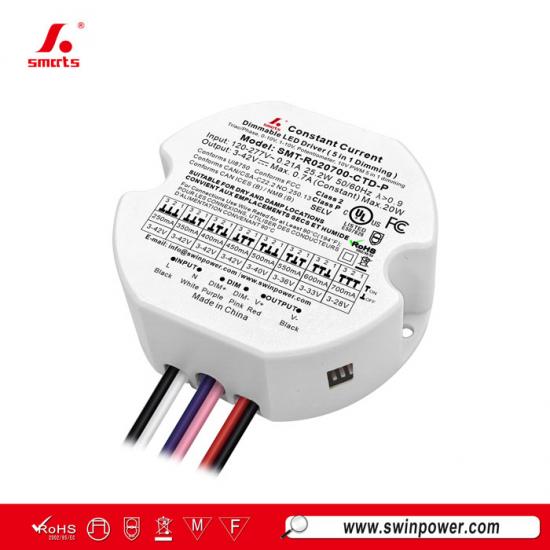

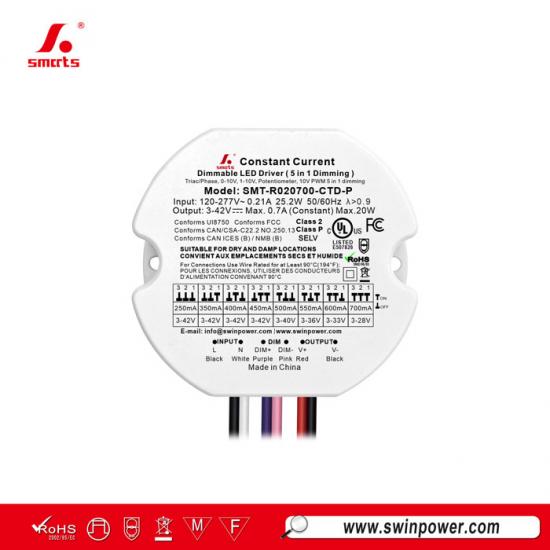

This 5-in-1 dimmable LED power supply features a circular plastic housing and offers short-circuit and over-temperature protection. It utilizes natural air cooling for effective heat dissipation and is compatible with most TRIAC and 0-10V dimmers on the market.

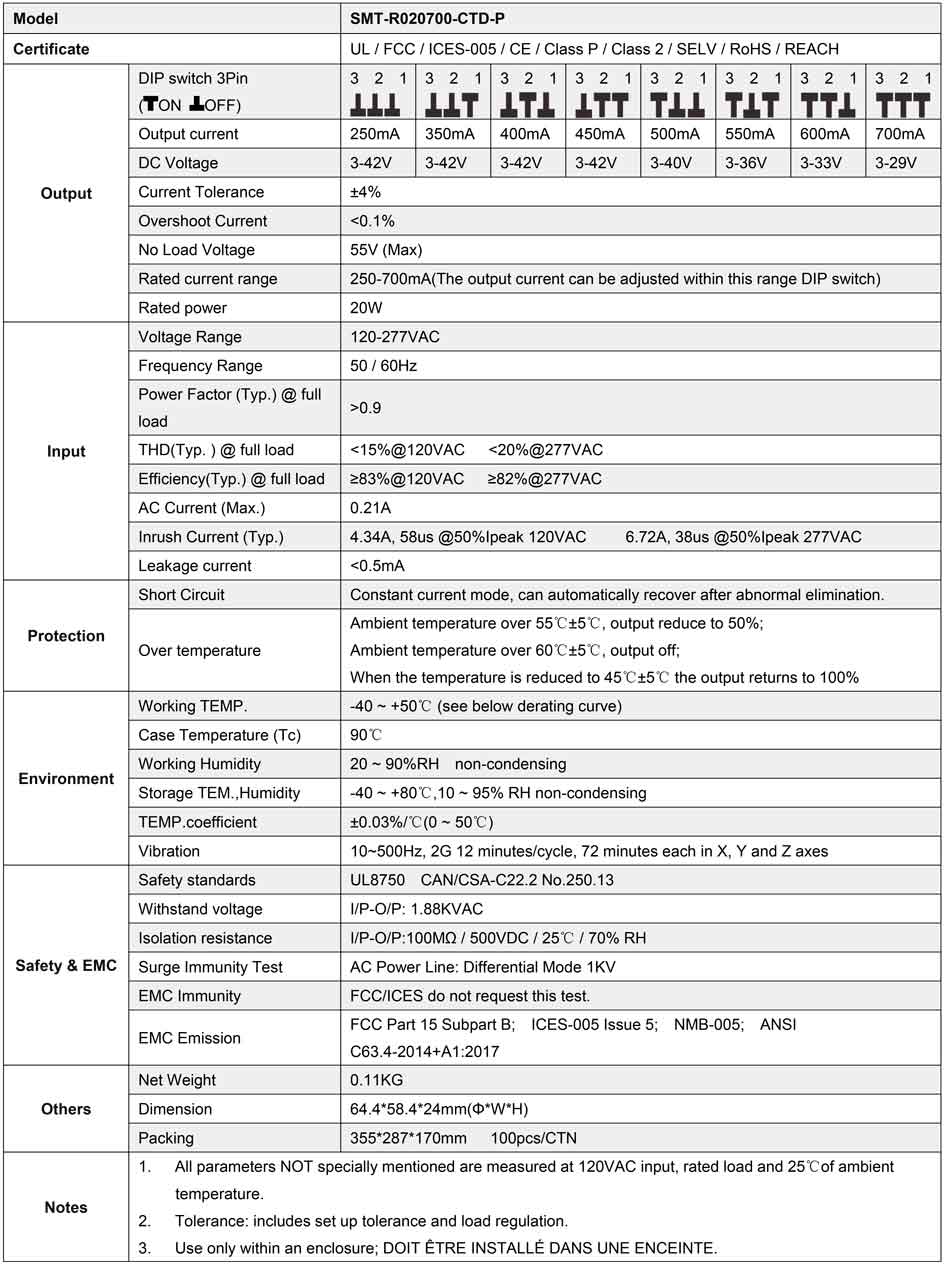

Specification
|
|
 |
 |
 |

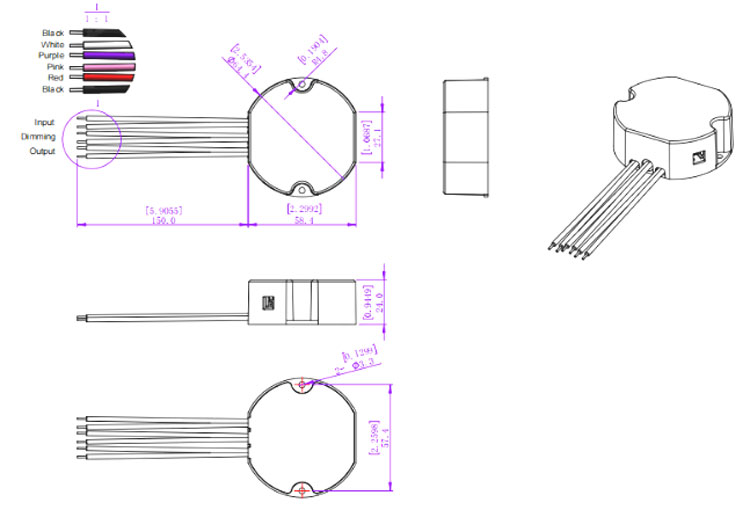

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|

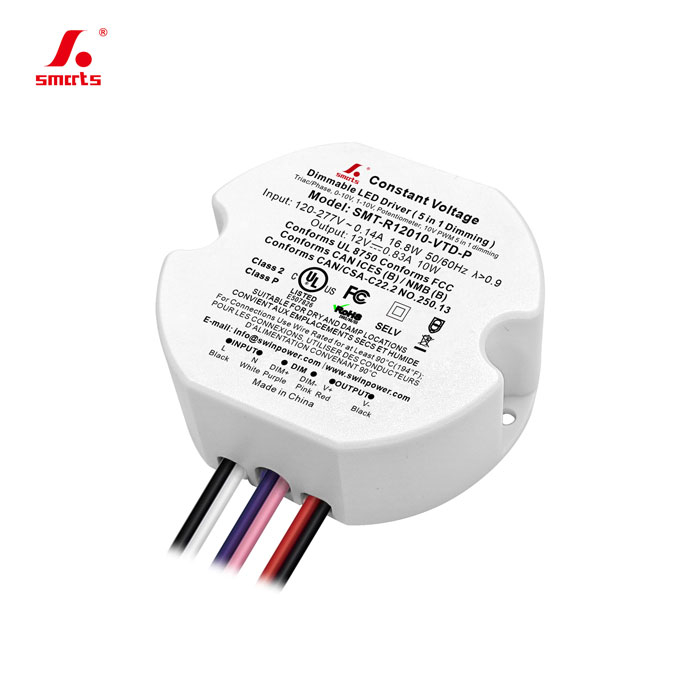

20W constant-voltage LED power supply, compatible with Triac and 0-10V dimming. It features a compact design for quick and easy installation, a plastic housing with an IP20 waterproof rating, and comes with an exceptional 7-year warranty.
Model: SMT-R12020-VTD-P Input Voltage: 100-277Vac
Dimming Mode: 5 in 1 dimmable
|
