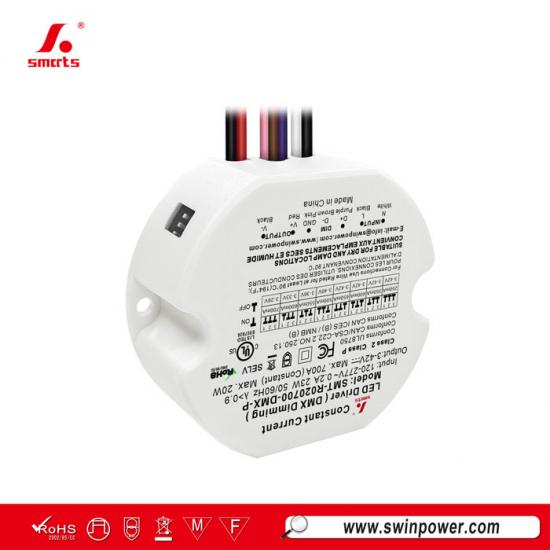

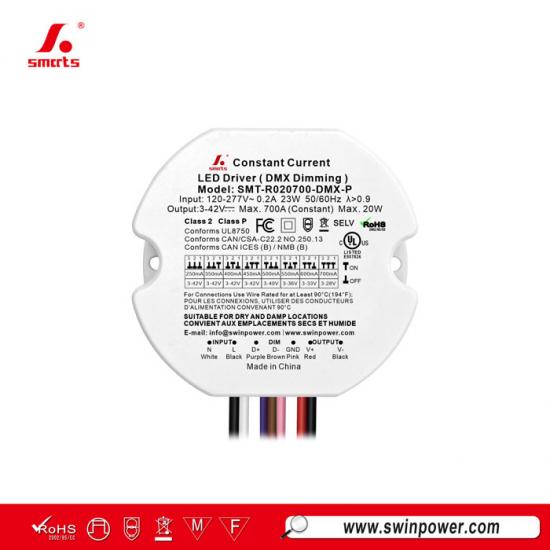

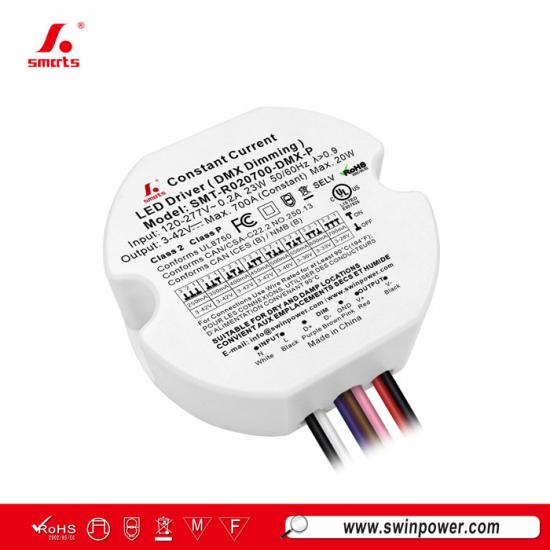

Digital Precision 20W DMX512 Dimmable Constant Current Round LED Driver
From cove lighting that shifts with the music to facade accents on a DMX512 loop, the 20W constant-current driver keeps up. Choose 250–700mA by DIP switch, manage addresses remotely via RDM, and dim smoothly from 1% to 100% without flicker. The compact plastic housing suits dry and damp locations; fanless cooling runs silent. 7-year warranty.

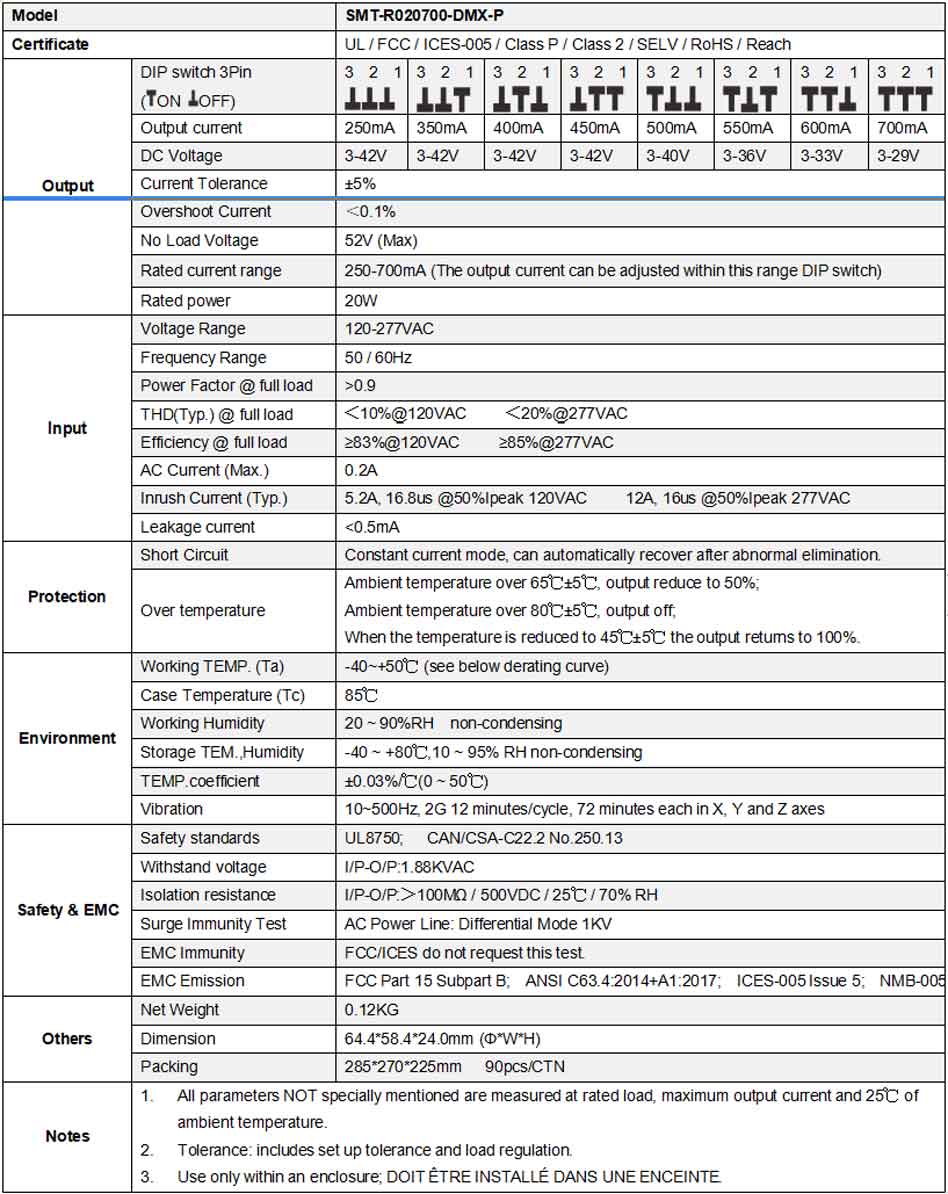

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Related Products
|

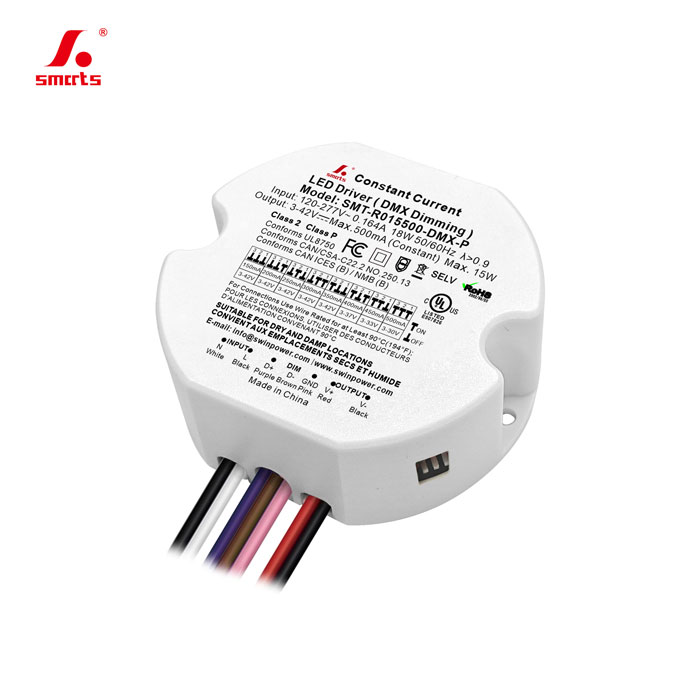

120–277VAC 15W round plastic LED driver input with PF correction and up to 80% efficiency keeps it efficient. Short-circuit and over-temperature protection plus fanless cooling round it out. Dry/damp rated; 7-year warranty.
Model: SMT-R015500-DMX-P Input Voltage: 100-277Vac
Dimming Mode: DMX512 dimmable
|
