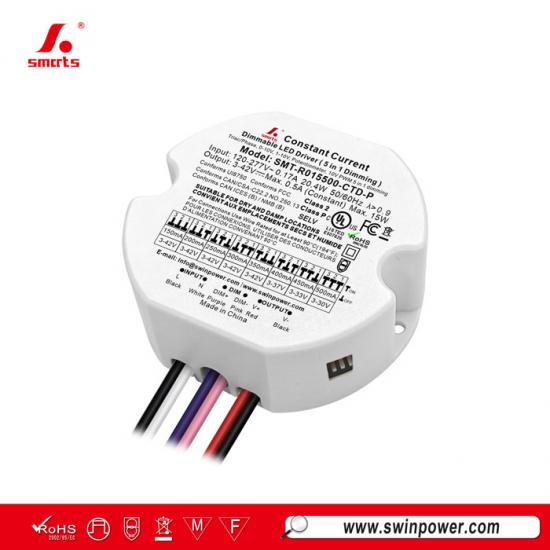

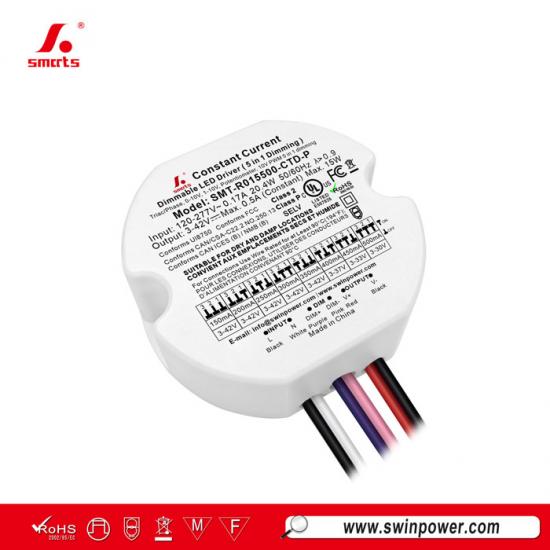

Round Shape 15W 100MA-450MA Triac & 0-10V Dimming Constant Current LED Driver
This 15W constant-current LED power supply features a round plastic housing and 5-in-1 dimming capability. It offers multiple protections—including short-circuit and over-temperature protection—and supports a wide range of mainstream dimmers on the market, delivering smooth and stable dimming performance.

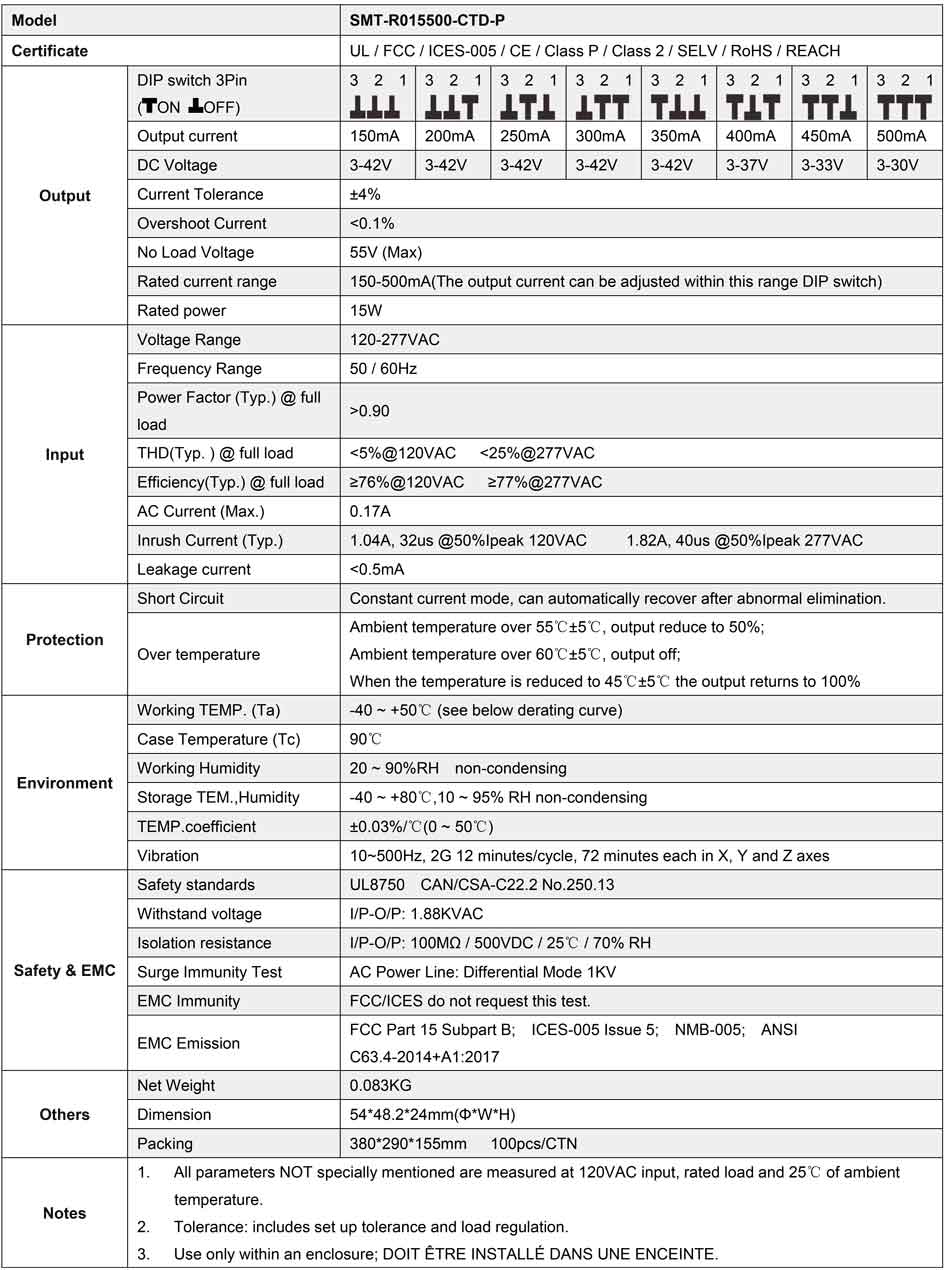

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|
This 10W TRIAC & 0-10V dimmable LED power supply featuring constant voltage operation and built-in active PFC, with an efficiency of up to 80%. It offers excellent compatibility with most TRIAC dimmers on the market, ensuring smooth and stable dimming.
Model: SMT-R12010-VTD-P Input Voltage: 100-277Vac
Dimming Mode: 5 in 1 dimmable
|
