ultra thin constant voltage 5 in 1 dimmable led driver 12v 24v 18w for indoor

ultra thin constant voltage 5 in 1 dimmable led driver 12v 24v 18w for indoor

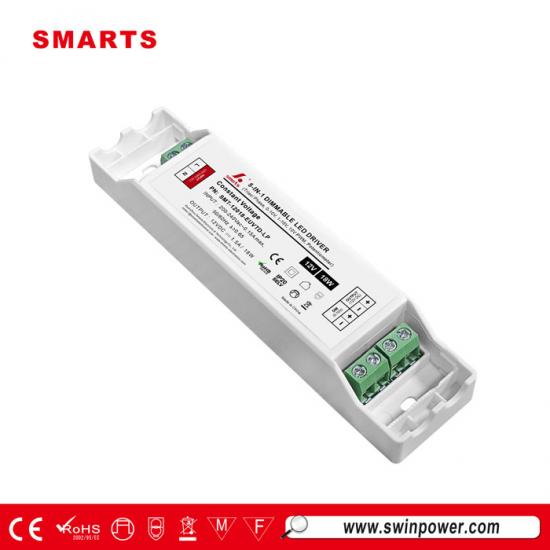

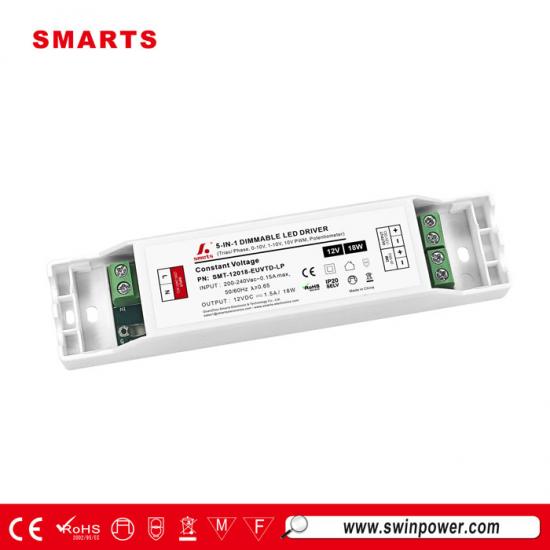

This 18W 5 in 1 dimmable LED power supply has a constant voltage working mode and an efficiency of up to 91%. With good heat dissipation and plastic shell design, it is suitable for indoor small space lighting project installation and use, with a 7-year warranty

  Specification

  Mechanical Specification

MCB recommendation：

Note：

1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃

2. The  breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

 Derating Curve

Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

Using one dimming ---TRIAC/Phase cut dimming

1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection

a phase /Triac dimmer or lighting system.

2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.

3. Min. loading is about 10%

4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming

(The driver is independently connected to the input.)

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming

(The driver is independently connected to the input.)

  Dimming Operation

1. To extend their life, please refer to the Derating Curve and derate according to the temperature.

2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.

Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
