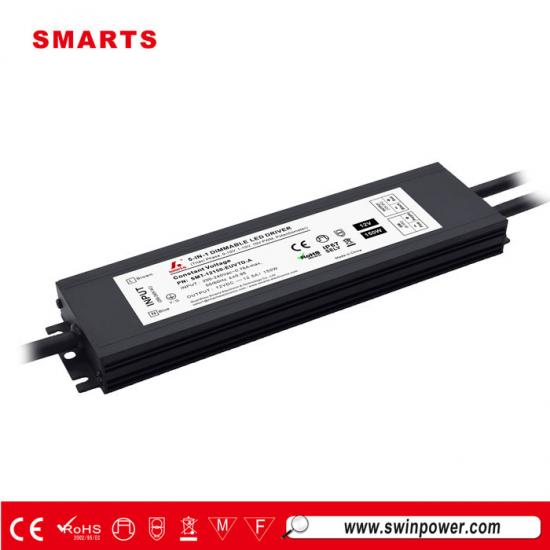

Constant voltage 150w 12v 24v pwm output triac & 0 10v dimmable led driver for outdoor

This constant voltage 150W TRIAC & 0 10V dimmable led power supply has built-in active PFC function and works with up to 80% efficiency. It is compatible with most triac dimmers and 0 10V dimmers on the market to achieve smooth flicker-free dimming.
  • Brand:

    SMARTS
  • Item No.:

    SMT-12150-EUVTD-A
  • Input Voltage:

    200-240VAC
  • Output Voltage:

    12VDC/24VDC
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    5 in 1 dimmable
  • Size:

    L182xW59xH21mm
  • Certification:

    CE
Products description

Constant voltage 150w 12v 24v pwm output triac & 0 10v dimmable led driver for outdoor

CE certified 150W constant voltage dimmable led power supply with dimming range between 0.1-100% smooth and flicker-free, waterproof grade ip65 aluminum housing design, suitable for indoor and outdoor humid space led lighting project installation and use.


  Specification

Model Number SMT-12150-EUVTD-A SMT-24150-EUVTD-A
Output Rated Power 150W
Rated Voltage DC12V DC24V
Rated Current 12.5A 6.25A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 200-240V
Frequency Range 47-63Hz
Efficiency (Typ.) 87%@230VAC 89%@230VAC
THD THD≤20% (@100% load)
Power Factor (Typ.) 0.96@ 230VAC (full loading)
AC Current (Typ.) 0.74A
Inrush Current (Typ.) <25A
Leakage Current <0.5mA
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Protection Class I
Environment Working Temp. Tcase=-40℃ ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working Humidity 20 ~ 95% RH non-condensing
Storage Temp. Humidity -40 ~ +90, 10 ~ 95% RH
Temp. Coefficient ±0.03%/℃ (0~50℃)
Vibration 10-500Hz,2G 12 minutes/cycle, Period 72 minutes each along X,Y,Z axes
Safety & EMC Safety Standards EN613471, EN61347-2-13
Withstand Voltage I/P-O/P:3KVAC  I/P-shell:1.5KVAC  O/P-shell:0.5KVAC
Isolation Resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMS EN61000-3-2; EN61000-3-3; EN61547
EMF EN62493-2010
Others IP Rating IP65
Weight 0.75Kg
Size L232xW59xH21mm

Click Send Email for Details

Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


MCB recommendation

When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of LED Driver
C type 10A 6
13A 8
16A 9
20A 12
25A 15
When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of LED Driver
C type 10A 14
13A 18
16A 22
20A 28
25A 35

Note

1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃

2. The  breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.


 Dimming Operation

Using one dimming ---TRIAC/Phase cut dimming

1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection

a phase /Triac dimmer or lighting system.

2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.

3. Min. loading is about 10%

Please try to use dimmers with power at least 1.5 times as the output power of the driver.


Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming

(The driver input is connected to the dimmer.)



Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming

(The driver is independently connected to the input.)

  Related Products



150w led driver

200-240Vac input voltage range plastic housing ip20 150W triac & 0 10v dimmable led power supply suitable for indoor small space lighting project installation


Model: SMT-12150-EUVTD-P

Input Voltage: 200-240Vac

Dimming Mode: 5 in 1 dimmable
Size: 185x56x19mm (L*W*H)
Certification:CE/ROHS
