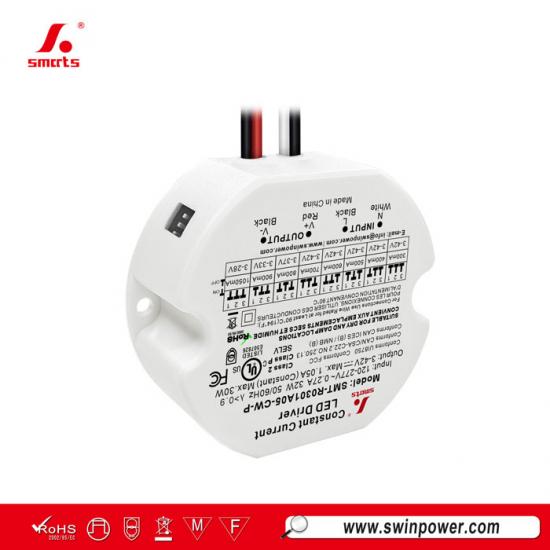

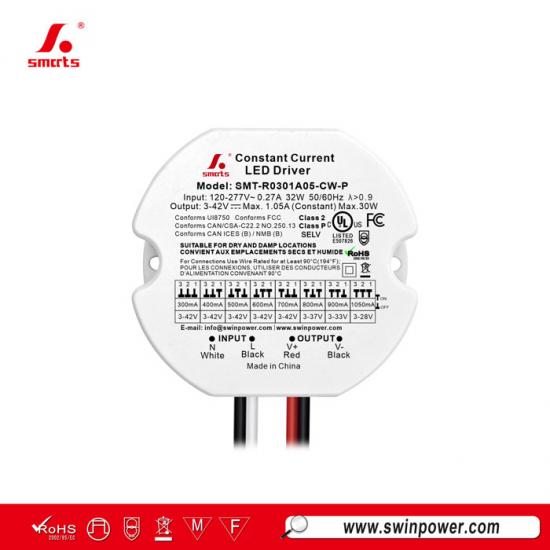

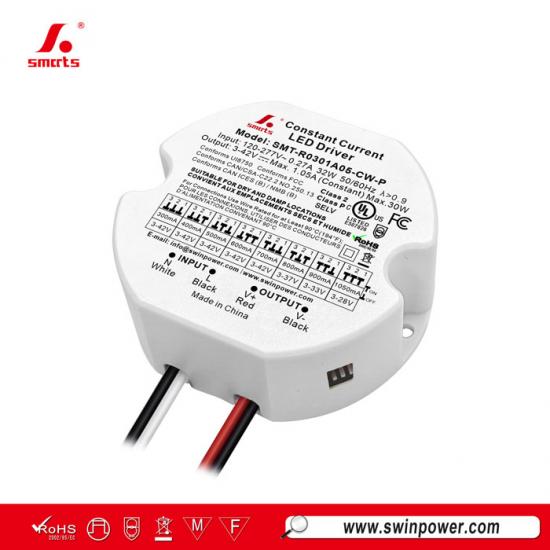

300–1050mA 30W Constant Current Round LED Driver for indoor
Contractors value the 30W constant-current driver for its range: 300–1050mA set by DIP switch, one unit serving multiple fixture types. The 120–277VAC universal input, PF correction, and up to 80% efficiency keep installs simple and efficient, while over-temperature and short-circuit protection safeguard every run. Compact round plastic housing for dry and damp locations. 7-year warranty.

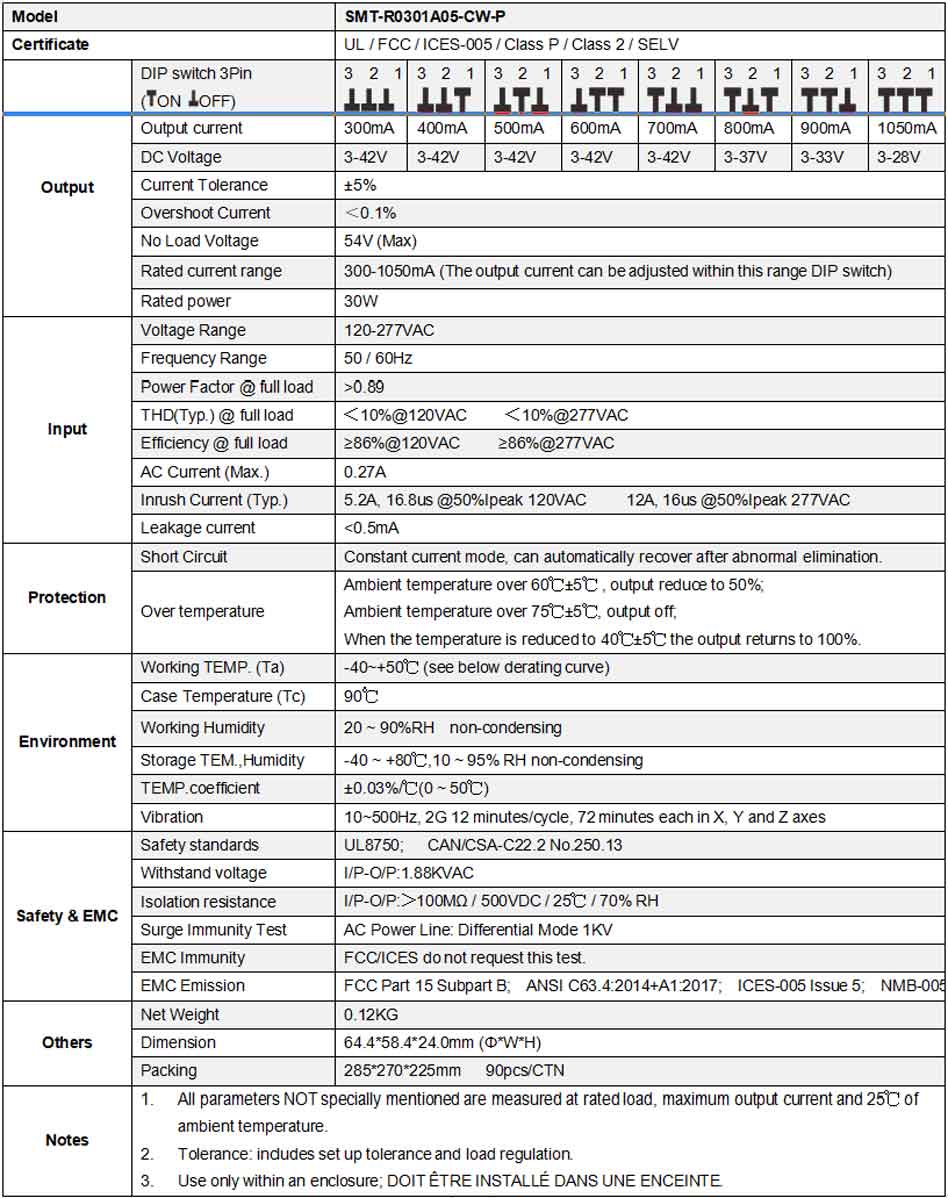

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
Dimming Operation
Related Products
|

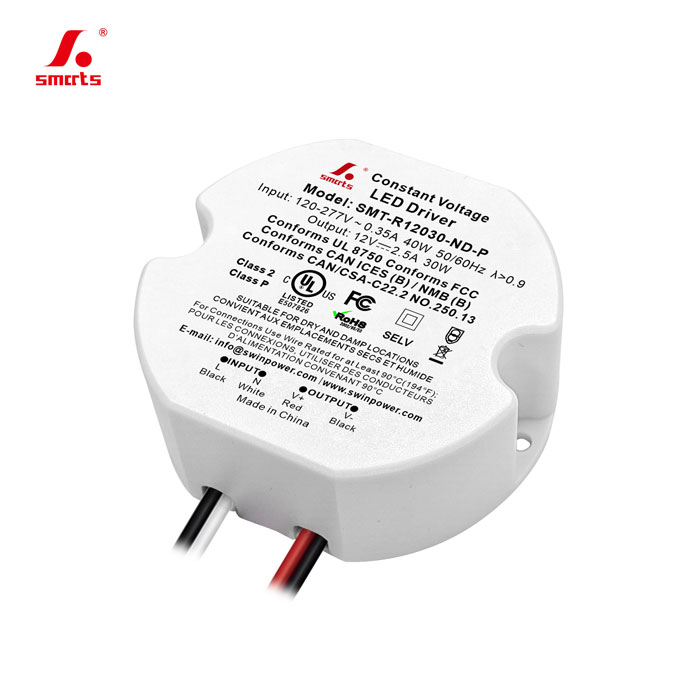

At the top of the compact range, the 30W round LED driver delivers the most constant-voltage power in the same small, non-dimming body. Spanning 120–277VAC, it drives demanding LED strips and modules for both residential and commercial use. Active PFC and up to 86% efficiency keep it efficient and cool, while short-circuit and overload protection add safeguards. Fanless convection cooling, a dry/damp-rated plastic housing, and a 7-year warranty make it the dependable workhorse of the series.
Model: SMT-R12030-ND-P Input Voltage: 100-277Vac
Dimming Mode: Non dimmable
|
