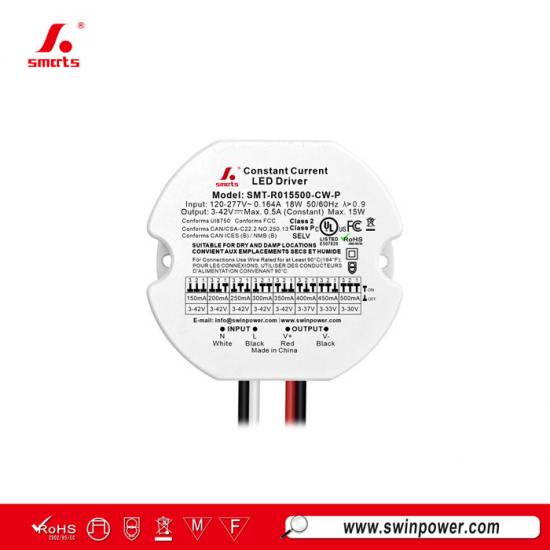

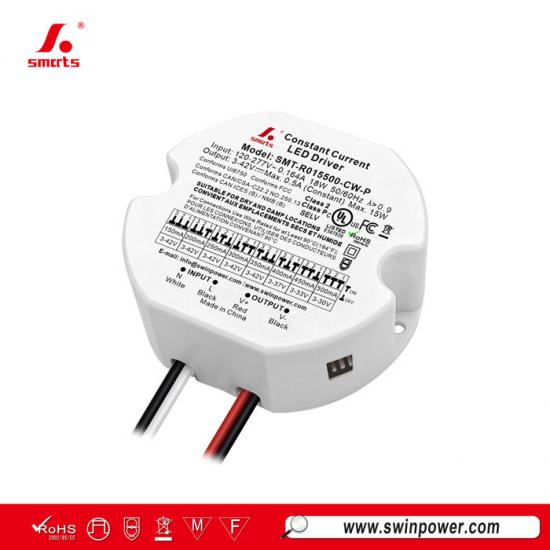

120-277vac Stable Light 15W Constant Current Round LED Driver for led lighting
The 15W constant-current driver handles them with a single SKU — just set 150–500mA on the DIP switch. The 120–277VAC universal input suits any North American site, and the compact round plastic body installs quickly in panels and fixtures. Over-temperature and short-circuit protection plus silent convection cooling deliver worry-free running. 7-year warranty

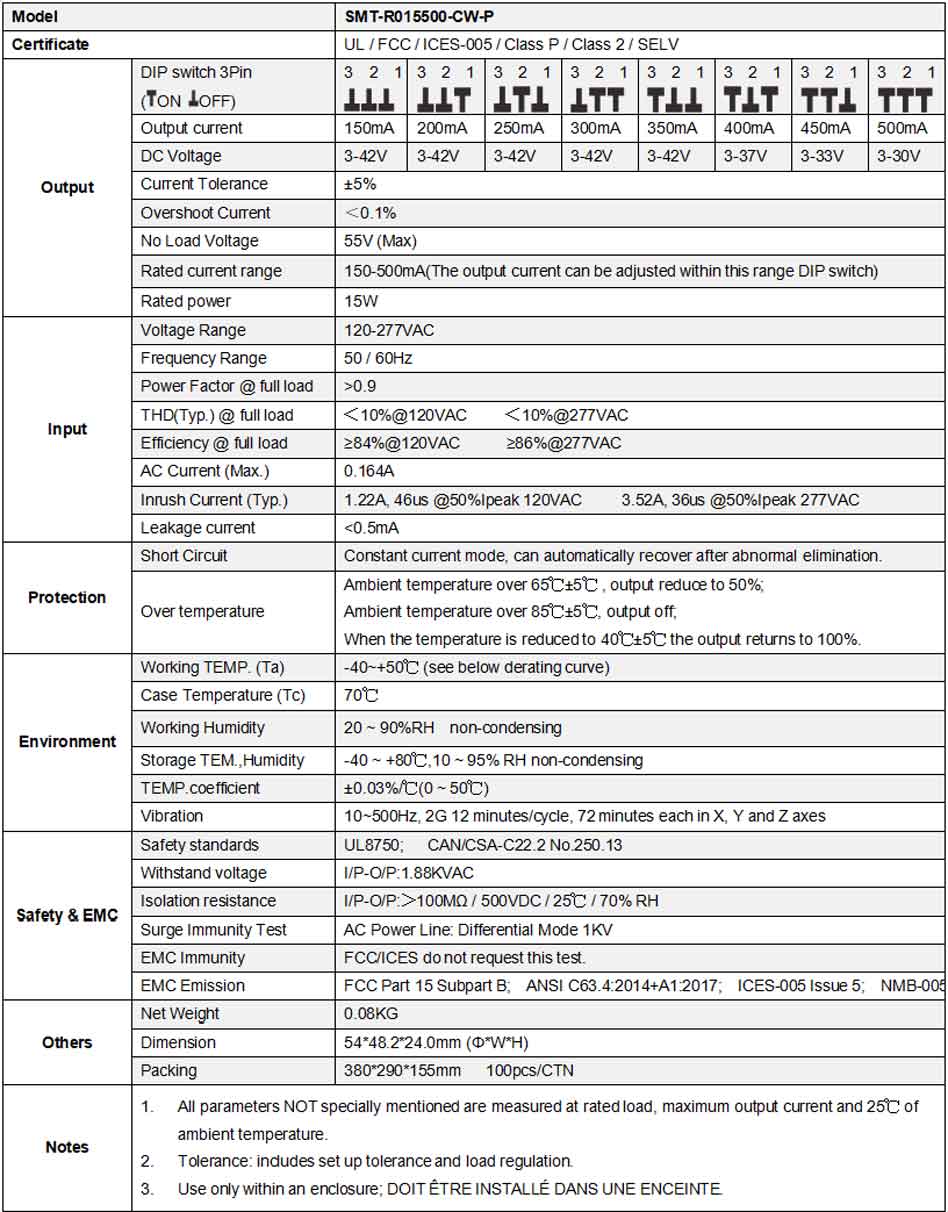

Specification
|
|
 |
 |
 |

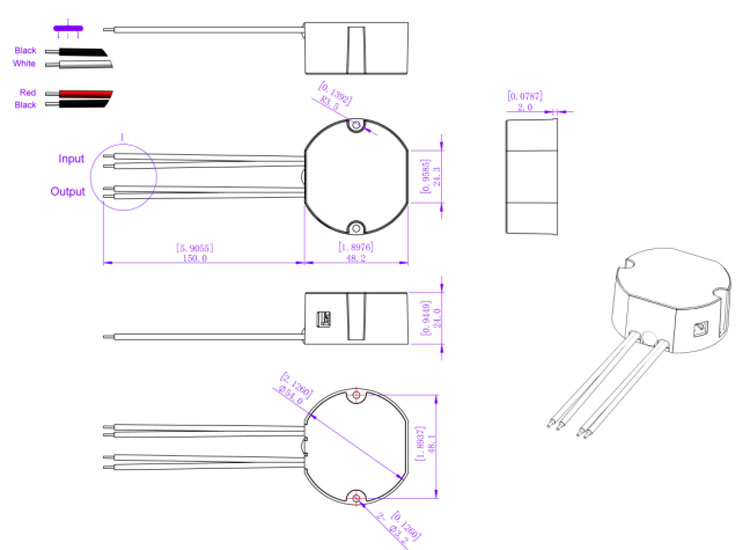

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
Dimming Operation
