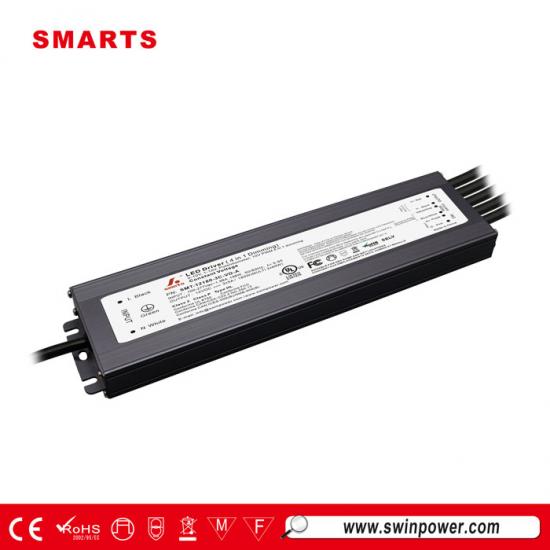

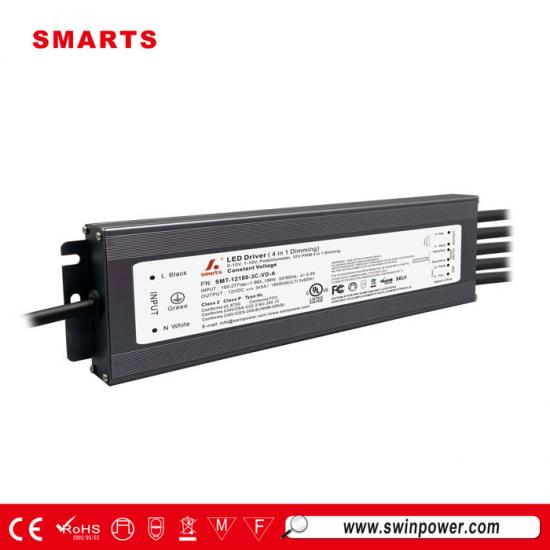

waterproof pwm 180w 0 10 volt dimmable led driver light strip power supply
This new upgraded 0 10v dimmable led power supply 180W 12V constant voltage working mode has a working efficiency of up to 91.5%. Aluminum shell design, waterproof grade ip67, suitable for outdoor humid space lighting project installation.
Specification
| Model | SMT-12180-3C-VD-A | |
| Certificate | UL / FCC / Type HL/ Class P / Class 2 / SELV / CE / RoHS / REACH | |
| Output | DC Voltage | 12V |
| Voltage Tolerance | ±1% | |
| Voltage Regulation | ≤0.5% | |
| Rated current | 3*5A | |
| Rated power | 180W(3*60W) | |
| Load Regulation | ≤1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) @ full load | ≥0.99@120VAC ≥0.95@277VAC | |
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | |
| Efficiency(Typ.) @ full load |
≥90%@120VAC ≥91.5%@277VAC |
|
| AC Current (Max.) | 2.1A | |
| Standby power | ≤0.5W | |
| Inrush Current (Typ.) | 23A,1.3ms@50%Ipeak120VAC;49A,960us@50%Ipeak277VAC | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Load | ≤120% Constant current mode, recover automatically after fault condition is removed | |
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after coolingg | |
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 - 95%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Ambient TEMP. | 45℃ | |
| Case TEMP. | 90℃ | |
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No. 250.13 (US) |
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |
| EMC Emission | FCC 47 CFR Part 15, Subpart B (US) | |
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | |
| Others | Net Weight | 1.45KG |
| Dimension | 232*78.1*25.3mm(L*W*H) | |
| Packing | 10pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
| 2. Tolerance: includes set up tolerance and load regulation . | ||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||
| 4. Default states:The output mode is VR output by default. The dimming curve is a gamma2.2 curve. | ||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| DH101 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire(12V) | Red(V+) Black(V-)(2*18AWG) |
| Red(V+) Black(V-)(2*18AWG) | |
| Red(V+) Black(V-)(2*18AWG) | |
| Function switching wire | Blue&White and Yellow&Gray (2*18AWG) |
| Dimming wire | Purple(D+) Pink(D-)(2*18AWG) |
| Remarks:Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged | |
MCB recommendation：
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 3 |
| 13A | 4 | |
| 16A | 6 | |
| 20A | 7 | |
| 25A | 9 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 8 |
| 13A | 12 | |
| 16A | 15 | |
| 20A | 19 | |
| 25A | 24 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic
curve.
Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
