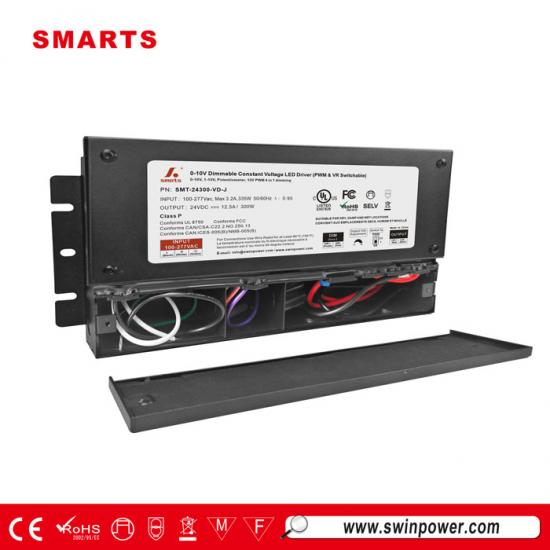

288w 0 10V dimmable constant voltage led driver power supply with Junction Box
Smartspower's new upgraded 0-10v dimmable constant voltage LED driver can switch between PWM output and VR output mode through the joystick. It has short circuit/overload/over-temperature protection. It is suitable for indoor and outdoor smart dimmable LED lighting project installation and use.
Specification
| Model | SMT-24288-3C-VD-J | SMT-48288-3C-VD-J | |
| Certificate | UL / FCC / Type HL/ Class P / Class 2 / SELV / CE / RoHS / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Fine-tune Voltage | 24V-25.5V | 48V-49.5V | |
| Voltage Tolerance | ±0.5% | ±1% | |
| Voltage Regulation | ≤0.5% | ||
| Rated current | 3*4A | 3*2A | |
| Rated power | 288W | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 110-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | ≥0.99@120VAC ≥0.95@277VAC | ||
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
| Efficiency(Typ.) @ full load |
≥90.5%@120VAC ≥92.5%@277VAC |
≥90%@120VAC ≥92.5%@277VAC |
|
| AC Current (Max.) | 3.1A | ||
| Standby power | ≤0.5W | ||
| Inrush Current (Typ.) | 38A,640us@50%Ipeak120VAC;79A,920us@50%Ipeak277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after coolingg | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Ambient TEMP. | 45℃ | ||
| Case TEMP. | 90℃ | ||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13(US) | |
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| EMC Emission | FCC 47 CFR Part 15, Subpart B(US) | ||
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | ||
| Others | Net Weight | 2.373Kg | |
| Dimension | 275*116*40mm(L*W*H) | ||
| Packing | 353*295*297mm 10pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||
|
|
 |
 |
 |
Mechanical Specification
1. Input cable 3*18AWG, the Green cable to (G), Black cable to L and White cable to N of Mains AC.
2. Output cable 2*16AWG, Red cable (+) to LED Positive side (+) , Black cable (-) to LED Negative side (-).
3. Dimming cable 2*18AWG, Purple cable DIM (+) to 0/1-10V dimmer signal(+ ), Pink cable DIM (-) to 0/1-10V dimmer signal (-).
4. Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+”, or other incorrect connection.
5. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.
Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
