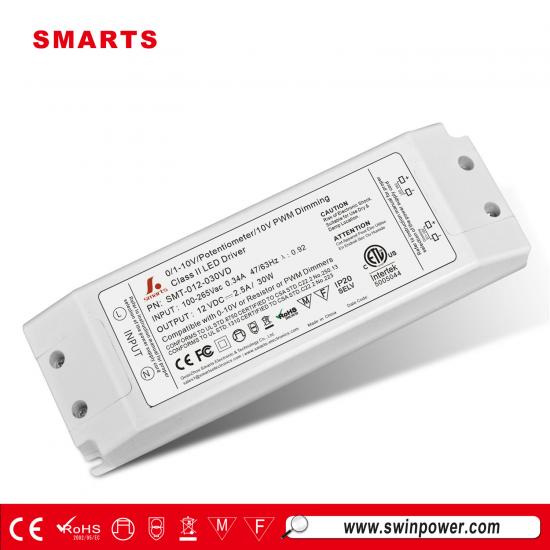

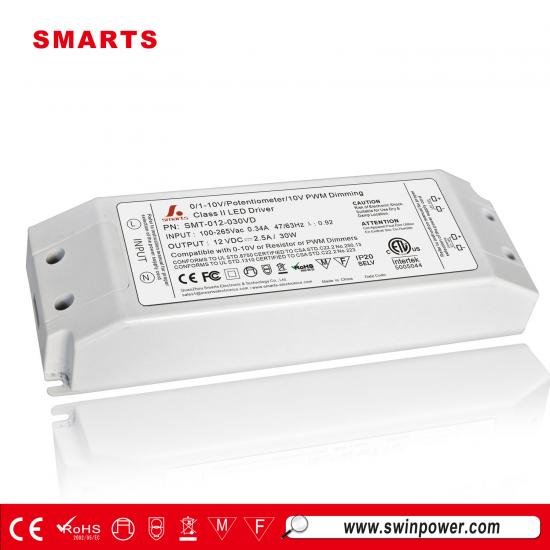

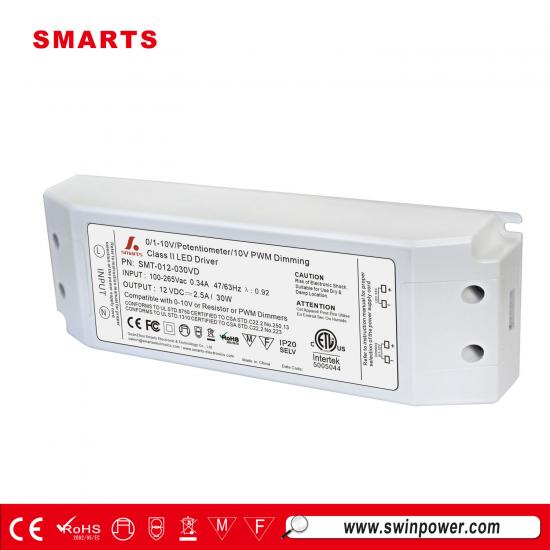

SMT-012-030VD 0-10v led driver will provide up to 30W of output power and a maximum output current of 2.5A. They are designed to be highly efficient and highly reliable. Features include lightning protection, over voltage protection, over current protection, short circuit protection and over temperature protection.The safety is much higher than MOSO's 30W 0-10V dimming LED Driver.
|
Features for pwm led driver |
|
|
Output constant current Range 100-265VAC Built-in PFC function, PF> 0.9 Efficiency> 88% Protections:short circuit/over current/over voltage Cooling by free air convection IP20 design for indoor installation . Dimming function:0/1-10V/ 10V PWM or potentiometer. Dimming range:0-100% Suitable for LED lighting and moving sign applications with dimming Compliance to worldwide safety regulations for lighting 3 years warranty |
|
Model |
SMT-012-030VD |
SMT-024-030VD |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
voltage Accuracy |
±3% |
||
|
Current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Input |
Voltage Range |
100～265VAC,100-130VAC, 170-265VAC |
|
|
Frequency Range |
47～63HZ |
||
|
PF(Typ.） |
PF>0.90 |
||
|
Full Load Efficiency（Typ） |
>88% |
>88% |
|
|
AC Current (Typ.） |
0.34A |
0.17A |
|
|
Leakage current |
﹤0.7mA/110-220VAC |
||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
|
Over voltage |
≦280VAC |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
|
Environme |
Working TEMP. |
-40～+50℃ |
|
|
Working Humidity |
20～95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP40 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
|
||
|
Others |
Weight |
0.4Kg |
|
|
Size |
180*60*34mm（L*W*H） |
||
|
packing |
355*215*215mm/20pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
What kinds of dimmer Swinpower recommended with our 0-10V dimmable led drivers?
Answer: Our 0-10V dimmable led drivers can match with most of the 0-10V dimmable led drivers in the market.Such as LUTRON /路创, LEVITON /力维腾.

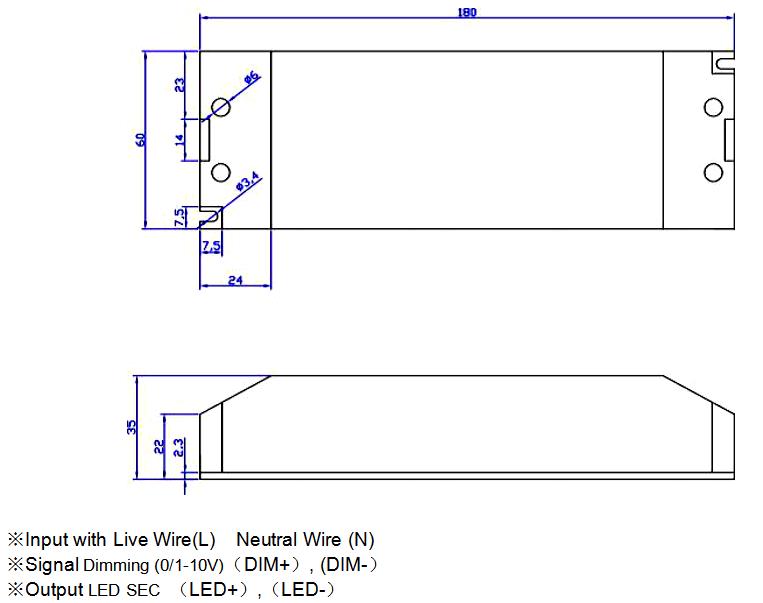

30W immabe driver Mechanical Specification
Dimming Operation for constant voltage led driver
Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
