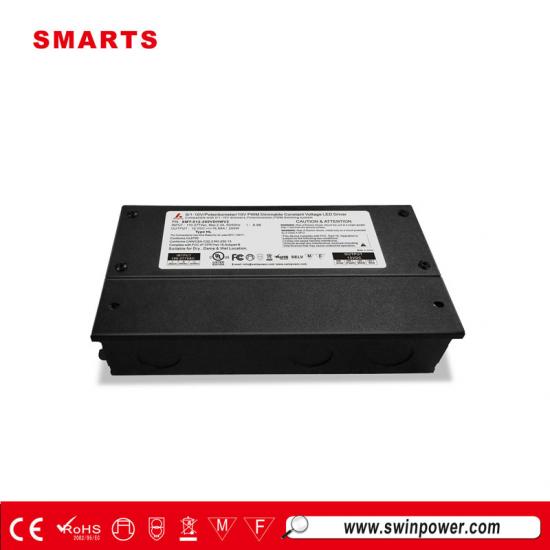

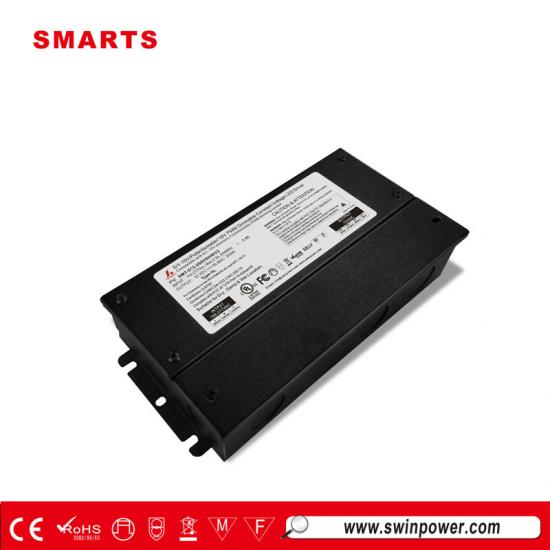

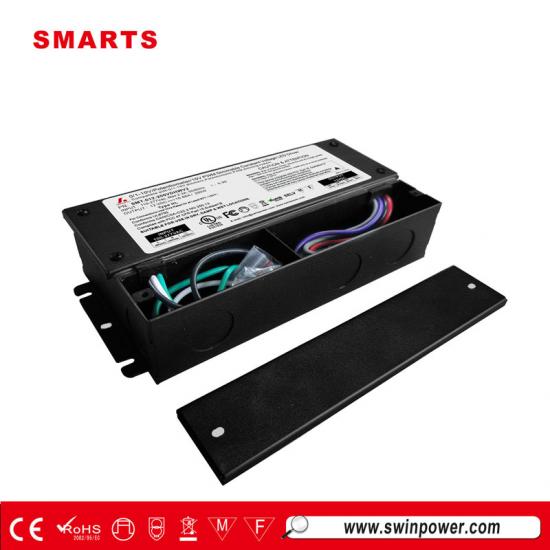

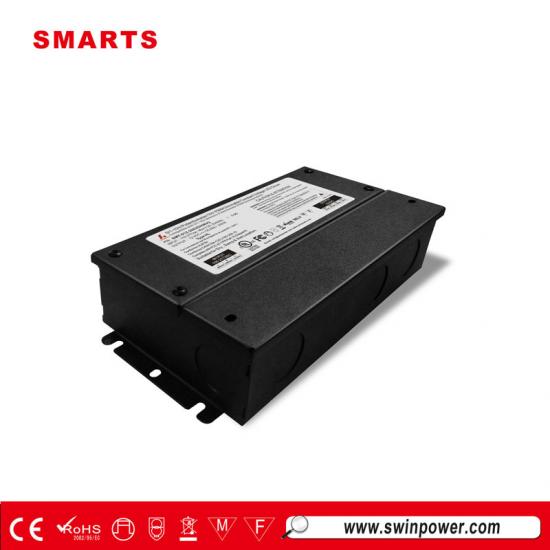

UL 200w led driver 12v 0-10V dimmable power supply

Model

SMT-012-200VDH (1.0 version)

SMT-012-200VDHV2 (2.0 version)

SMT-012-200VDHWV2 (3.0 version)

SMT-024-200VDH (1.0 version)

SMT-024-200VDHV2 (2.0 version)

SMT-024-200VDHWV2 (3.0 version)

Output

DC Voltage

12V

24V

Rated Current

16.67A

Rated Power

200W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

Input

Voltage Range

110-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.98@120VAC  0.97@277VAC

0.98@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Efficiency(Typ)@ full load

83% @120Vac /  87%@277Vac

79%

86% @120Vac  / 88%@277Vac

AC Current（Max.）

2.3A@100Vac

Inrush Current (Typ.)

15A, 50%, 1.4ms @120Vac     30A, 50%, 1.4m,s @277Vac

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40～+60℃ (see below derating curve)

Working Humidity

20～90%RH, non-condensing

Storage TEMP. Humidity

-40～+80℃，10～95%RH

TEMP .coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

1.8Kg (1.0 version)

Size

1.0 version: 260*103*46mm /2.0 version: 260*105*45mm (L*W*H)

3.0 version: 260*125*45mm (L*W*H)

packaging

Packaging: 10PCS

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .
