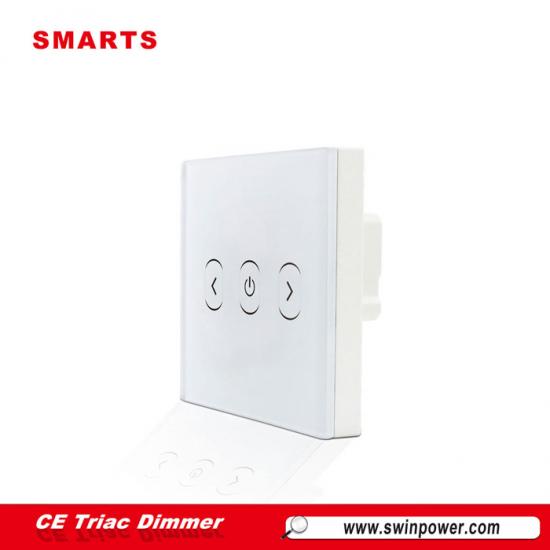

EU Standard triac Dimmer Led Light dimming 250w Control Wall Dimmer Switch
 |

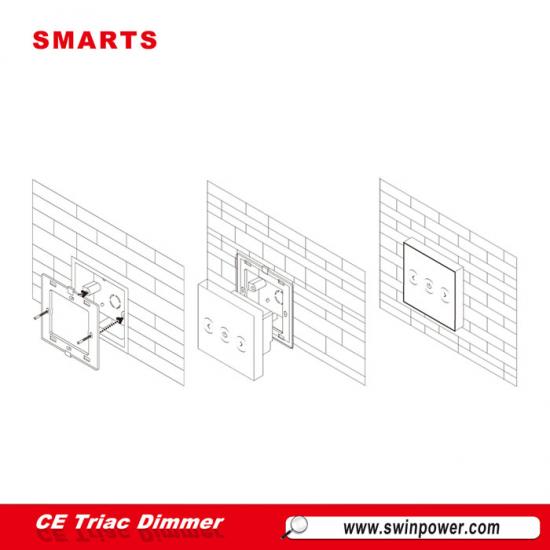

Smarts Electronics provide wall dimmer switch for Single Color LED Strip, which is easy Installation. Without extra wiring as traditional switch. You can manually turn on or off your strip or adjust the light intensity by turning the knob. |
Description:

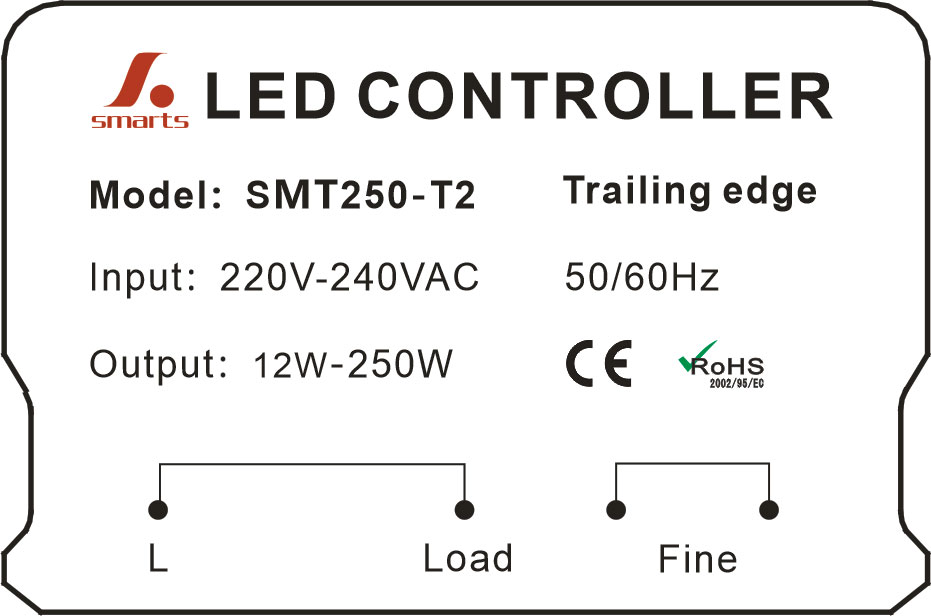

| Model | SMT250-T2 |
| Input Voltage | 220V/240V |
| Frequency | 50/60Hz |
| Working temp. | -25-40℃ |
| Load | 12W-250W |
| Size | 86*86*38mm(L*W*H) |
| Weight | 170G |
Feture:
1) Only connect L(LIVE).
2) Dimming operation:Touch panel with one touch button.
3) Phase-cut model: trailing edge dimming.
4) Memory function: remember the last brightness when turn on
dimmer again.
5) Over current protection.

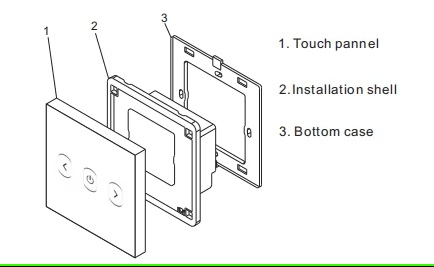

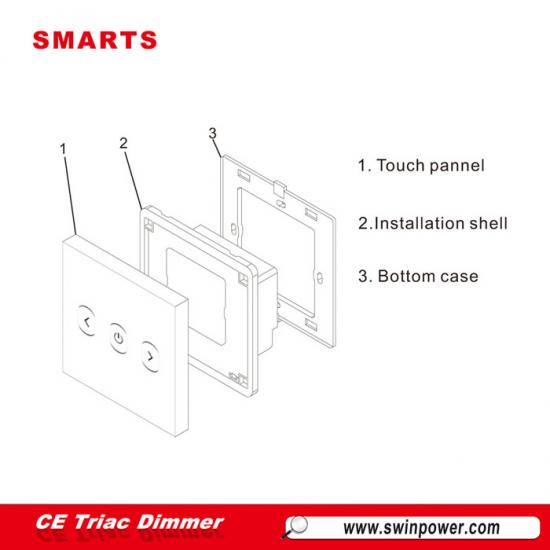

Part of device

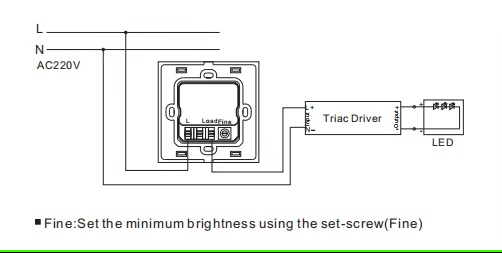

Wiring diagram
Operation:
When dimmer under turn off status,Press the Touch key ( ) to turn on the dimmer,and dimmer recover the status(dimming level )
same as last time before it turning off.
When dimmer under turn on status, press the Left ( ) Key the brightness down; press the Right ( ) Key,the brightness up; press
on the ON/OFF ( ) Key ,dimmer shut down.
Working principle:
1. Working principle :Sine wave phase-cut.
2. Control the driver to soft start to achieve continuous,soft dimming.
3. Over-current protection,pretend the driver and dimmer from the damage caused by huge current.
4. A load fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting.

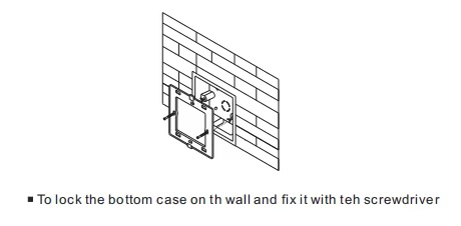

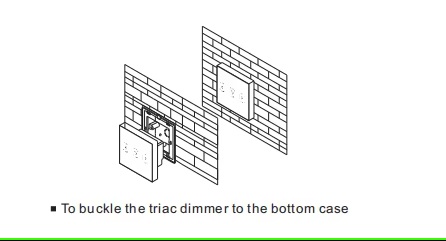

Instruction mannal
Packing & Shipping
inner box-white box + outer carton- standard exporting carton for packing
- MOQ: 1 pcs
- Delivery: 7 working days for sample order,12 working days for 500pcs.
- Shipping freight are quoted under your requests.
- Loading port: Xiamen
