Triac Dimmer

 |Newly Design European Standard LED Light Dimmer 220VAC trailing edge dimming.

led light dimmer
led light dimmer led light dimmer led light dimmer led light dimmer led light dimmer

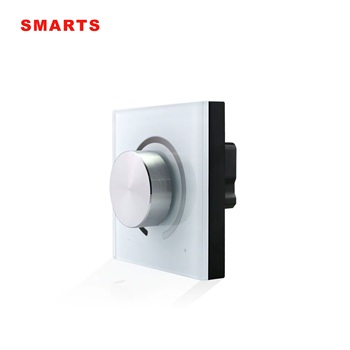

Newly Design European Standard LED Light Dimmer 220VAC trailing edge dimming.

SMT300-R-T2 led light dimmer are our newli design,all are Europran standard.

Triac dimmer with switch are Only connect L(LIVE). the dimming operation is Knob pannel with a rotary.

  • Brand:

    SMARTS

  • Item No.:

    SMT300-R-T2

  • Input Voltage:

    220-240vAC

  • Output Current:

    300W

  • Working Mode:

    220-240vAC

  • Dimming mode:

    TRIAC

  • Size:

    86*86*51mm

  • Certification:

    CE ROHS
Inquiry now
Products description

 Newly Design European Standard LED Light Dimmer 220VAC trailing edge dimming





Dimmer 220VAC trailing edge dimming
 SMT300-R-T2 is the best led dimmer switch which provides the best dimming performance for dimmable LED bulbs
Click Send Email for Details
 Click skpye 24 hours Online Reply
 Scan to start our communication
Back to top


Product description


  Description



Model SMT300-R-T2
Input Voltage 220V/240V
Frequency 50/60Hz
Working temp. -20-40℃
Load 12W-300W
Size 86*86*51mm(L*W*H)
Weight 190G



12v led dimmer



 Feture


1) Soft locking.
2) Only connect L(LIVE).
3) Dimming operation: Knob pannel with a rotary.
4) Phase-cut model: trailing edge dimming.
5) Memory function: remember the last brightness when turn on
dimmer again.
6) Over current protection.

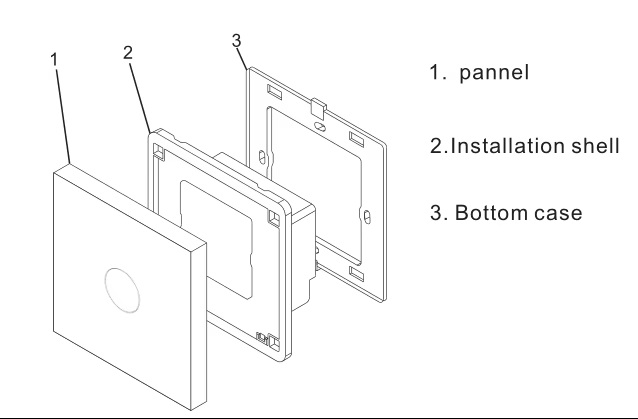

 Part of device



12v led dimmer

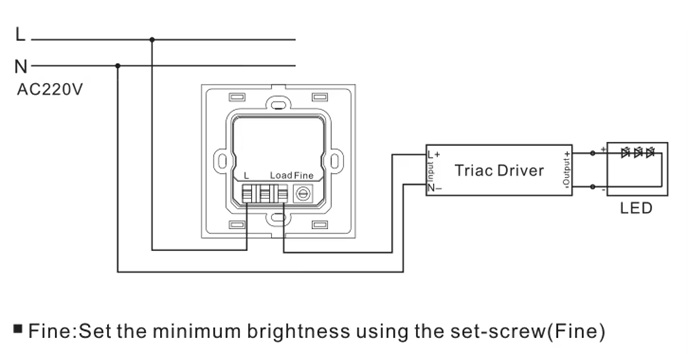

 Wiring diagram



dimmer switch



 Operation

  • Turn on/off dimmer by short press knob.
  • When dimmer is on, turn knob to dim brightness.
  • Turn off dimmer and then turn on again, dimmer will remember the last brightness.



 Working principle


1. Dimming pinciple: Phase-cut sine wave.

2. Control the driver to soft start to achieve continuous, soft dimming.
3. Over-current protection, pretend the driver and dimmer from the damage caused by huge current.
4. A fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting.

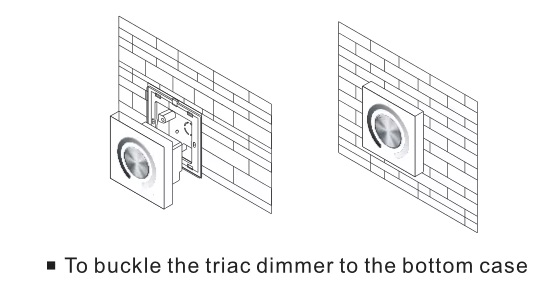

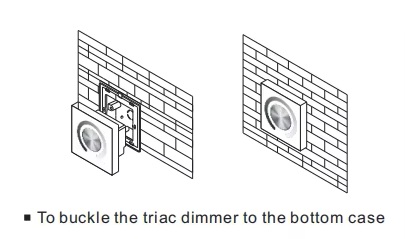

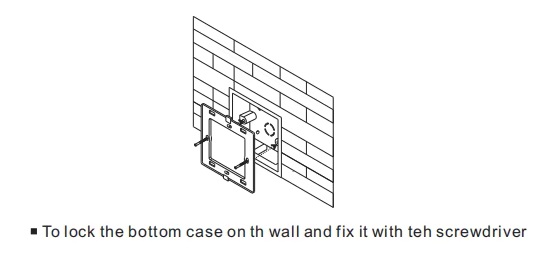

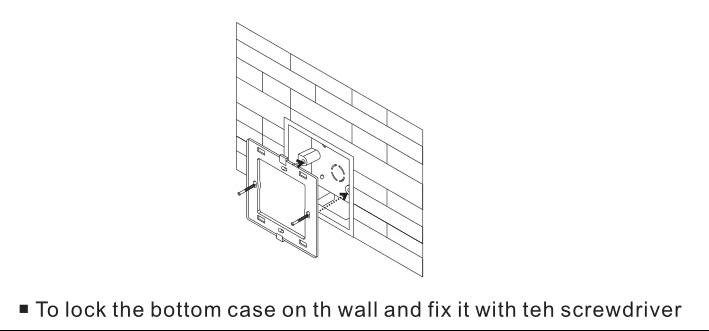

Instruction mannal



 dimmer switchdimmer switch


dimmer switchdimmer switch



  Packing & Shipping


inner box-white box + outer carton- standard exporting carton for packing



dimmer switch





  1. MOQ: 1 pcs
  2. Delivery: 7 working days for sample order,12 working days for 500pcs.
  3. Shipping freight are quoted under your requests.
  4. Loading port: Xiamen


Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
