0-10v dimming 12Vdc 30w UL calss 2 constant voltage led strip driver
ul class 2 led drivers 12 volts 30w built with junction box is popular in North American. Universal input range from 100 to 277VAC.Flicker-free and dimming range from 0 to 100%. High power factor over 0.99. Eaton dimmer DF10P-C1 is compatible.
Specification
|
model |
SMT-012-030VDH(1.0 version) SMT-012-030VDHV2 (2.0 version) |
SMT-024-030VDH(1.0 version) SMT-024-030VDHV2 (2.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
RatedCurrent |
2.5A |
1.25A |
||
|
RatedPower |
30W |
30W |
||
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% ±1% |
|||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47-63Hz |
|||
|
Power Factor(Typ.)@ full load |
0.99@120VAC 0.98@277VAC |
0.99@120VAC 0.95@277VAC |
||
|
THD（Typ.）@ full load |
<20% |
|||
|
Efficiency（Typ.）@ full load |
79% @120Vac 80%@277Vac 79% |
79% @120Vac 80%@277Vac
|
||
|
AC Current（Max.） |
0.5A@100Vac |
|||
|
Inrush Current（Typ.） |
7A, 50%, 420us @120Vac 12A, 50%, 480us @277Vac |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault conditionisremoved |
||
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover afterfault conditionisremoved |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
|||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
Working Humidity |
20～90%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP .coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC Part 15 B |
|||
|
Others |
Weight |
0.95Kg(1.0 version) |
||
|
Size |
1.0 version: 165*92*26mm (L*W*H) / 2.0 version: 165*94.5*40mm (L*W*H) |
|||
|
packing |
305*200*150mm /10PCS/CTN
|
|||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
 |
 |
 |
 |
■ Mechanical Specification
SMT-012-030VDH (1.0 version) SMT-012-030VDHV2 (2.0 version)
SMT-024-030VDH (1.0 version) SMT-024-030VDHV2 (2.0 version)
(Used in dry & damp Location) (Used in dry & damp & Wet Location)
Ø Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Ø Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Ø Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■Dimming Operation
Ø Built-in 4 in 1 dimming function, IP20 / IP67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
Ø Reference resistance value for output current adjustment (Typical)
|
Resistance value |
Signal driver |
0Ω |
10KΩ |
20KΩ |
30KΩ |
40KΩ |
50KΩ |
60KΩ |
70KΩ |
80KΩ |
90KΩ |
100KΩ |
OPEN |
|
Multiple drivers |
0Ω/N |
10KΩ/N |
20KΩ/N |
30KΩ/N |
40KΩ/N |
50KΩ/N |
60KΩ/N |
70KΩ/N |
80KΩ/N |
90KΩ/N |
100KΩ/N |
—— |
|
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
|
Ø 1-10/0-10V dimmable function for output current adjustment(Typical)
|
Dimming value |
0V |
1V |
2V |
3V |
4V |
5V |
6V |
7V |
8V |
9V |
10V |
OPEN |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
Ø 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ
|
Duty value |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
OPEN |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
■Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

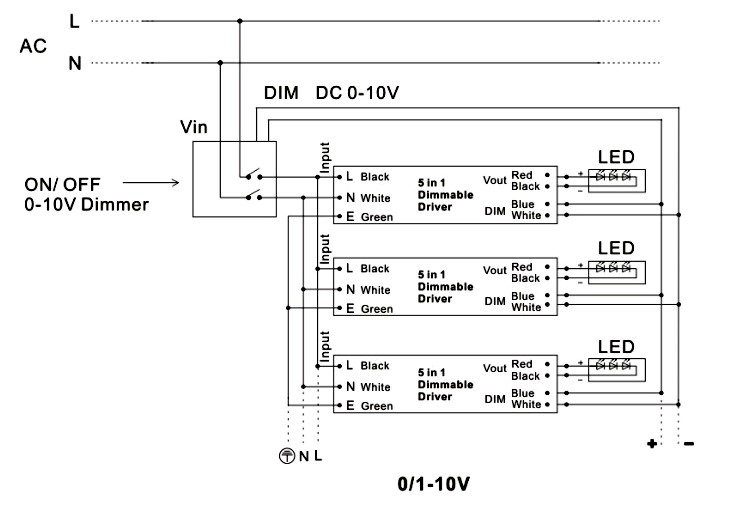

■Connecting solution:
Diagram 1 as below:
Diagram 2 as below:
■ Instruction:
Ø This driver should be installed by qualified and professional person;
Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;
Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall:86 18016688251
Our official website: www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type
Smarts constant voltage led driver 0 10v dimming is built-in active PFC function. 0-10v constant voltage power supply listed by UL will be free from defects in material or workmanship for a period of 7 years . SMT-012-030VDHV2 could be worked with Nilight led light bar.
|
|
