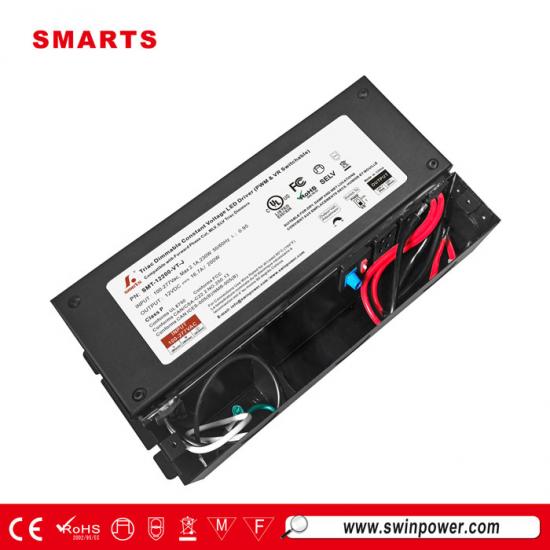

12v 200w triac dimmable constant voltage led driver power supply with Junction Box
This new upgraded 200W 12V triac dimmable led power supply has short circuit/overload/over temperature protection. Built-in fine-tuning voltage function knob. Dimming range is smooth and flicker-free between 0-100%. Comes with 7 years warranty.
Specification
| Model | SMT-12200-VT-J | SMT-24200-VT-J | SMT-48200-VT-J | |
| Certificate | UL / cUL / FCC / Class P | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2.5% | ±1.25% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤1% | ≤1% | |
| Rated current | 16.67A | 8.33A | 4.17A | |
| Rated power | 200W | |||
| Voltage Ripple | 250mVp-p | 250mVp-p | 250mVp-p | |
| Overshoot voltage | <5%(full load) | <20%(full load) | <10%(full load) | |
| Output volt Adjustment | 12-13V | 24-26V | 48-50V | |
| Output mode selection | The DIP switch in the "ON" position represents the PWM (Pulse - Width Modulation) mode, and in the "1" represents the VR (Modulation of DC Voltage) mode.position | |||
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | ||||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.96@277VAC |
>0.98@120VAC >0.96@277VAC |
>0.98@120VAC >0.96@277VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | |||
| Efficiency(Typ.) @ full load |
≥86.5%@120VAC ≥90%@277VAC |
≥89%@120VAC ≥92%@277VAC |
≥90%@120VAC ≥92%@277VAC |
|
| AC Current (Max.) | ≤2.2A @120VAC ≤0.91A@277VAC | |||
| Standby power | ≤0.5W | |||
| Inrush Current (Typ.) | 40.8A, 50%, 480us @120VAC; 96.7A, 50% 192us @277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | ||
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | |||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | |||
| EMC Immunity | FCC/ICES do not request this test | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | |||
| Others | Net Weight | 1.35KG | ||
| Dimension | 205.4*118*42.7mm(L*W*H) | |||
| Packing | 293*260*265cm 10 pcs / CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||
|
4. Default states: The output mode is PWM output by default. The dimming curve is a gamma2.2 curve. |
||||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |
Mechanical Specification
1.Input 1015 0.824mm2 3*18AWG: Black cable (L), White cable (N), Green cable (G).
2.Output 1015 0.824mm2 2*18AWG: Red cable(V+) connect to positive(+), Black cable(V-) connect to negative(-).
3.Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming Operation
TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2. phase /Triac dimmer or lighting system.
3. Working with forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
4. Min. loading is about 10%.
5. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
