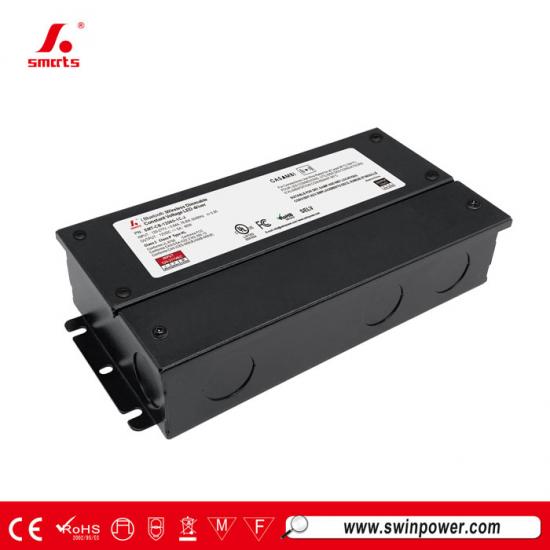

ul listed 12v 60W Casambi wireless dimmable constant voltage led power supply with junction box
This constant voltage LED driver is integrated with a junction box and features Bluetooth CASAMBI wireless dimming mode. It provides smooth and stable, flicker-free dimming from 0-100%, and is available in 1 to 5 channels for users to choose from.
Specification
| Model | SMT-CB-12060-xC-J | SMT-CB-24060-xC-J | SMT-CB-48060-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class 2 / Class P / ROHS / REACH | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 376mVp-p | 248mVp-p | 208mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor @ full load | >0.95 | |||
| THD(Typ. ) @ full load | ≤10%@120VAC ≤15%@277VAC | |||
| Efficiency(Typ.) @ full load | 86.9%@120VAC 90.9%@277VAC | 87.0%@120VAC 89.8%@277VAC | 86.3%@120VAC 89.6%@277VAC | |
| AC Current (Max.) | 0.64A | |||
| Inrush Current (Typ.) | 26.4A/136 us@50%Ipeak 120VAC 63.2A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV,Common Mode 2KV | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | |||
| Others | Net Weight | 1.2KG | ||
| Dimension | 188*95.4*42.7mm (L*W*H) | |||
| Packing | 415*265*270MM 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |
Mechanical Specification

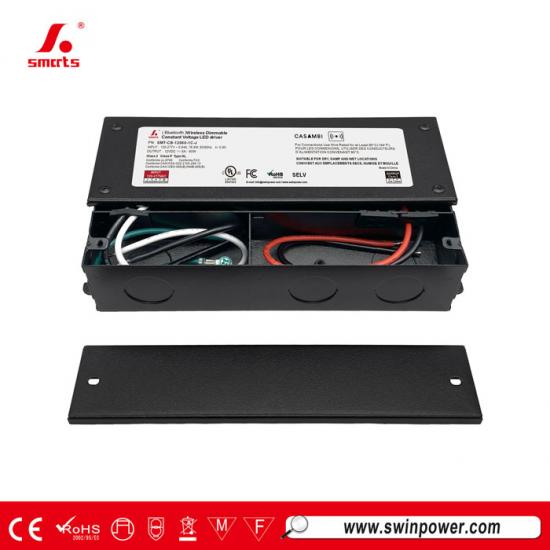

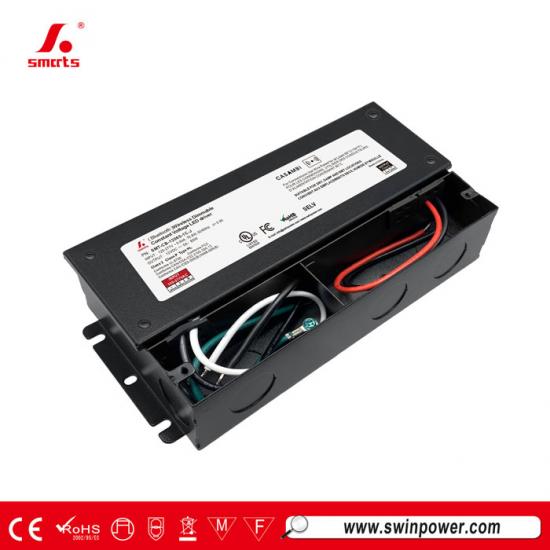

1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|

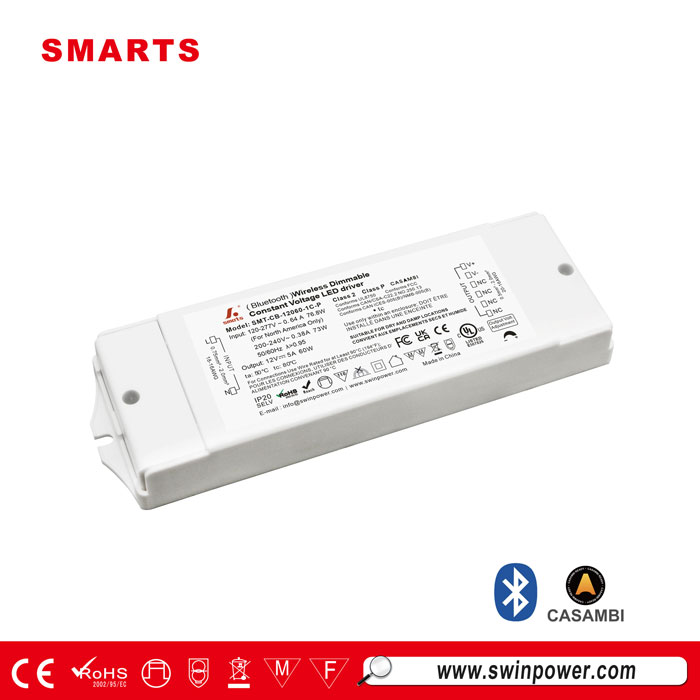

Plastic casing design, IP20 waterproof rating, constant voltage 60W Bluetooth CASAMBI wireless dimmable LED power supply. Easy and quick installation, suitable for LED lighting projects in confined indoor spaces. Comes with a 7-year warranty.
