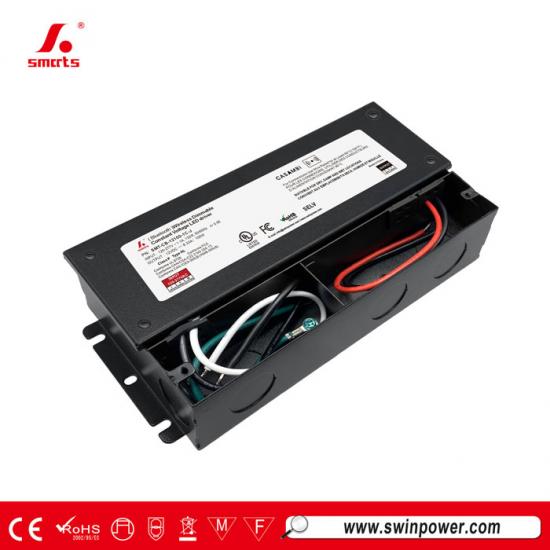

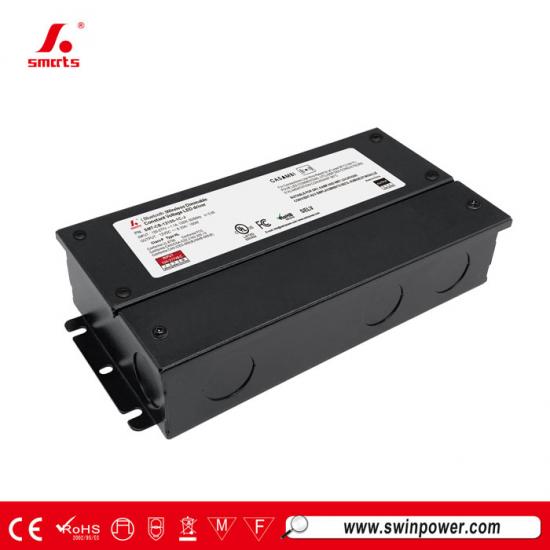

Bluetooth Wireless dimmable 100W led power supply junction box for led strip lights
This 100W 12V/24V/48V CASAMBI wireless dimmable LED driver features built-in active PFC function. It has multiple protection features including short circuit, overload, and over-temperature protection. It can be dimmed via a mobile app and comes with a 7-year warranty.
Specification
| Model | SMT-CB-12100-xC-J | SMT-CB-24100-xC-J | SMT-CB-48100-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class P / ROHS / REACH | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | |
| Rated current | 8.33A | 4.17A | 2.08A | |
| Rated power | 100W | 100W | 100W | |
| RIPPLE & NOISE (max.) | 300mVp-p | 244mVp-p | 208mVp-p | |
| Overshoot voltage | <3% (full load),<4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor @ full load | >0.95 | |||
| THD(Typ. ) @ full load | ≤10%@120VAC ≤15%@277VAC | |||
| Efficiency(Typ.) @ full load |
87.5%@120VAC 90.0%@277VAC |
90.0%@120VAC 92.6%@277VAC |
88.6%@120VAC 91.9%@277VAC |
|
| AC Current (Max.) | 1.1A | |||
| Inrush Current (Typ.) | 49.6A/136 us@50%Ipeak 120VAC 96.0A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV,Common Mode 2KV | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | |||
| Others | Net Weight | 2KG | ||
| Dimension | 188*95.4*42.7mm (L*W*H) | |||
| Packing | 415*265*270MM 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |

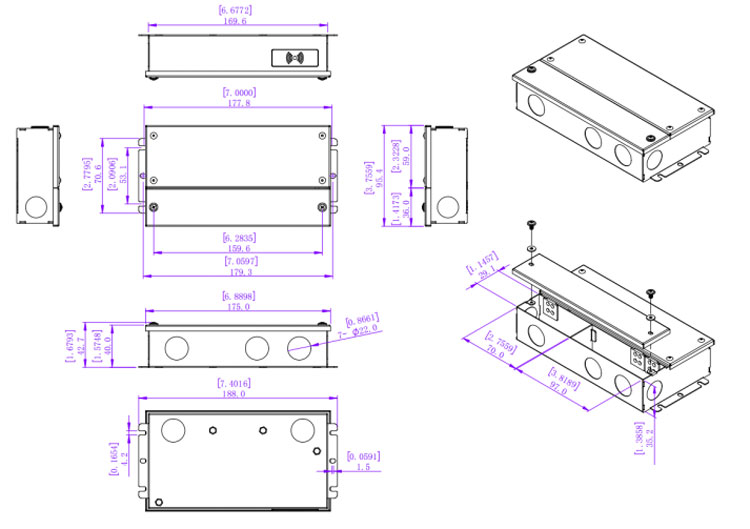

Mechanical Specification
1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|
Constant voltage Bluetooth CASAMBI wireless dimmable LED driver with aluminum casing design for excellent heat dissipation and IP67 waterproof rating. Provides smooth and stable dimming from 0-100% without flickering. Complies with global safety lighting regulations.
Model: SMT-CB-12100-1C-A Input Voltage: 100-277Vac
Dimming Mode: CASAMBI Bluetooth dimmable
|
