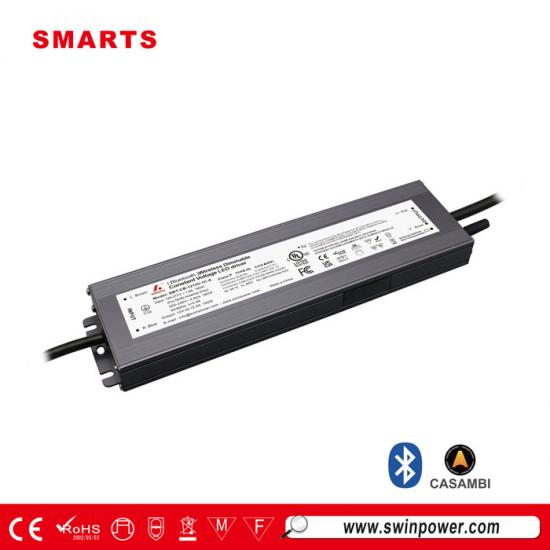

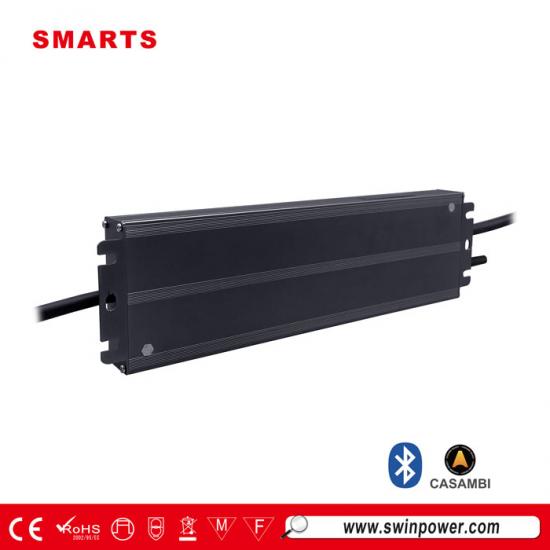

CASAMBI bluetooth constant voltage led power supply 12v/24v for led lighting
110-277VAC constant voltage, Bluetooth CASAMBI wireless dimmable led driver, IP66 waterproof rating, good heat dissipation, easy and quick installation, UL certified, suitable for indoor smart LED lighting projects in North America.
Specification
| Model | SMT-CB-12150-1C-A | SMT-CB-24150-1C-A | SMT-CB-48150-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±0.5V | |||
| Voltage Regulation | ≤0.5% | |||
| Rated current | 12.5A | 6.25A | 3.13A | |
| Rated power | 100W | |||
| Load Regulation | ≤2% | ≤1% | ||
| Input | Voltage Range | 110~277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor @ full load | <15% | |||
| THD(Typ.) @ full load | ≥0.98@230VAC | |||
| Efficiency @ full load | 89%@120VAC 91%@230VAC | |||
| AC Current (Max.) | 1.8A | |||
| Inrush Current (Typ.) | 35.2A, 510us@50%Ipeak 230VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | ||
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC CFR 47 Part 15,Subpart B (US) | |||
| Others | Net Weight | ?KG | ||
| Dimension | 279*78*25.1mm (L*W*H) | |||
| Packing | 20PCS/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
|
|
 |
 |
 |

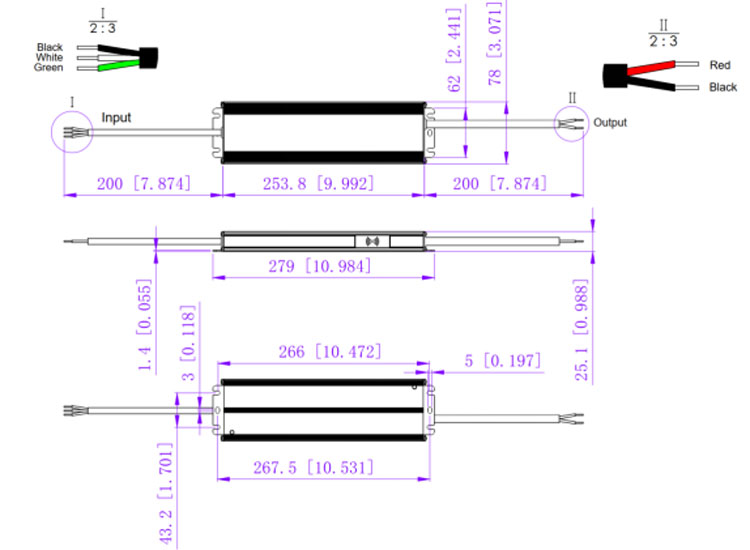

Mechanical Specification
1. Input cable 3*18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 2*16AWG, Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 4 |
| 13A | 6 | |
| 16A | 7 | |
| 20A | 9 | |
| 25A | 22 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 8 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 17 | |
| 25A | 22 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 10 |
| 13A | 13 | |
| 16A | 16 | |
| 20A | 20 | |
| 25A | 26 | |
Note：
①The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ° C
②The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic
curve.
