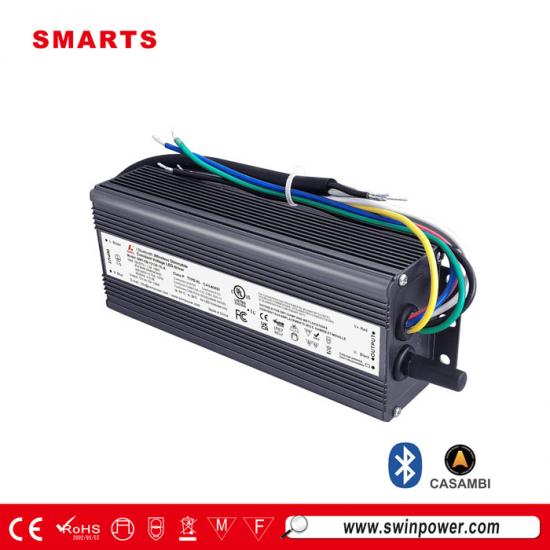

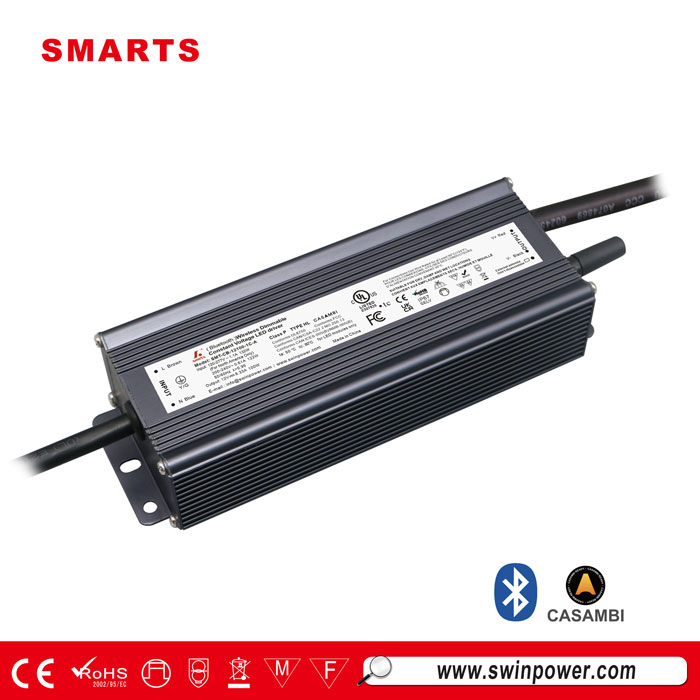

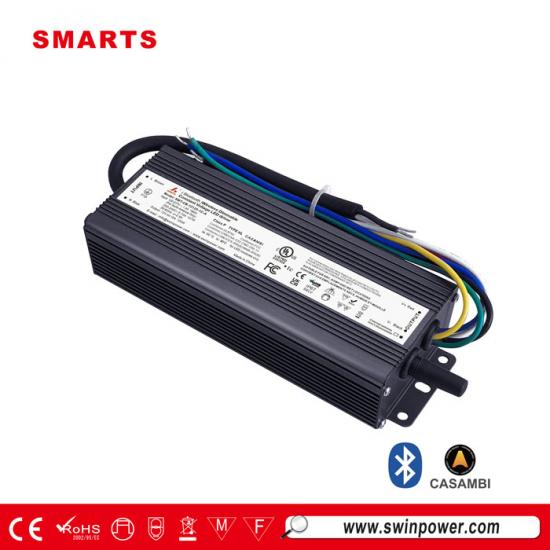

CASAMBI Bluetooth Wireless Dimmable 120w led driver power supply for outdoor
100-277VAC universal input voltage range, 120W CASAMBI dimmable LED power supply with short circuit/over-temperature/overload/over-voltage protection. Simple and convenient wiring, precise control, smooth and stable dimming without flicker, and comes with a 5-year warranty.
Specification
| Model | SMT-CB-12120-1C-A | SMT-CB-24120-1C-A | SMT-CB-48120-1C-A | |
| Certificate | UL / FCC / Class P / SELV / CE | |||
| Output | DC Rate Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ±1% | ±1% | ±1% | |
| Rated current | 10A | 5A | 2.5A | |
| Rated power | 120W | 120W | 120W | |
| RIPPLE & NOISE (max.) | 240mVp-p | 144mVp-p | 408mVp-p | |
| Overshoot voltage | <3% (full load),<4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor @ full load | 0.99@120VAC 0.98@230VAC 0.96@277VAC | |||
| THD(Typ.) @ full load | ≤10%@120VAC ≤10%@230VAC ≤10%@277VAC | |||
| Efficiency @ full load |
85.8%@120VAC 89.4%@230VAC 90.0%@277VAC |
89.5%@120VAC 92.5%@230VAC 93.0%@277VAC |
88.0%@120VAC 90.5%@230VAC 91.0%@277VAC |
|
| AC Current (Max.) | 1.3A@120VAC 0.68A@230VAC 0.56A@277VAC | |||
| Inrush Current (Typ.) | 49.6A/136 us@50%Ipeak 120VAC 90.0A/208 us@50%Ipeak 230VAC 96.0A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed | ||
| Over Load | ≥120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US)EN61347-1 EN61347-2-13(EU) | ||
| Withstand voltage |
I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (US) I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) |
|||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV,Common Mode 2KV | |||
| EMC Immunity | FCC/ICES do not request this test(US) EN61000-4-2,3,4,5,11 EN61547 (EU) | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4a-2017 (US) EN55015 EN61000-3-2,3(≥50%)(EU) | |||
| Others | Net Weight | 0.896KG | ||
| Dimension | 196*69.8*42mm (L*W*H) | |||
| Packing | 355*250*170mm 10pcs/CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
|
2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. |
||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |
Mechanical Specification
1. Input cable 3*16AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 2*16AWG, Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna.
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 4 |
| 13A | 6 | |
| 16A | 7 | |
| 20A | 9 | |
| 25A | 22 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 8 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 17 | |
| 25A | 22 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 10 |
| 13A | 13 | |
| 16A | 16 | |
| 20A | 20 | |
| 25A | 26 | |
Note：
①The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ° C
②The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic
curve.
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|

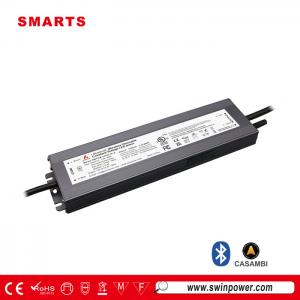

Aluminum casing, waterproof (IP67) CASAMBI Bluetooth Wireless Dimmable 100W LED power supply. Smooth, stable, and flicker-free dimming range from 0-100%. Remote dimming via mobile app. 5-year warranty.
