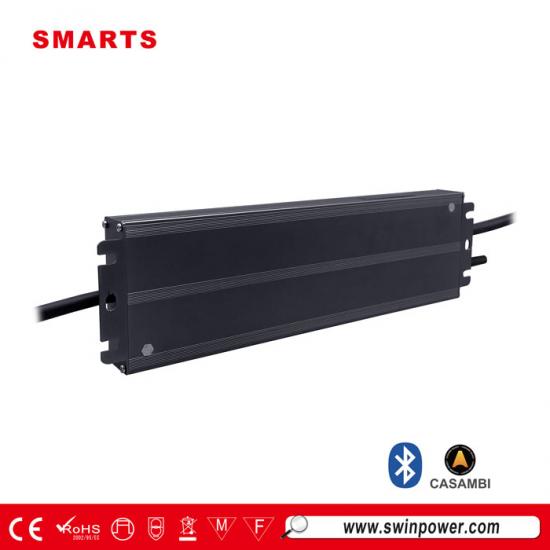

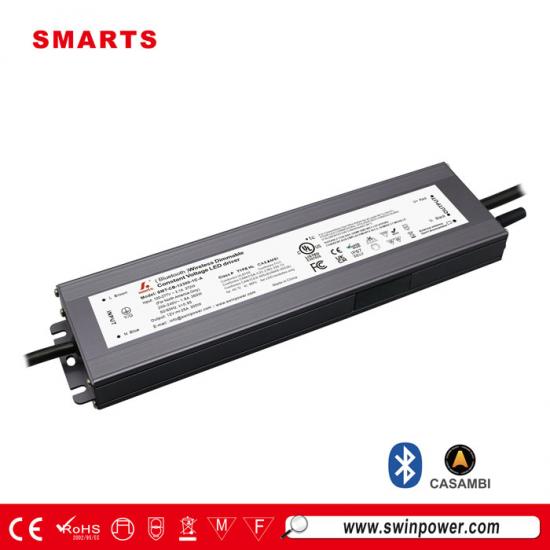

CASAMBI Bluetooth wireless dimmable 12v/24v 300w constant voltage led driver for outdoor
CASAMBI wireless dimmable 300W LED power supply features an aluminum housing and an IP66 waterproof rating, suitable for indoor and outdoor LED lighting projects in damp environments. It offers smooth, stable, and flicker-free dimming between 1-100%. Complies with global safety lighting regulations.
Specification
| Model | SMT-CB-12300-1C-A | SMT-CB-24300-1C-A | SMT-CB-36300-1C-A | SMT-CB-48300-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ≤0.5% | ||||
| Rated current | 25A | 12.5A | 8.33A | 6.25A | |
| Rated power | 300W | ||||
| Load Regulation | ≤3% | ||||
| Input | Voltage Range | 110~277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor @ full load | ≥0.95 | ||||
| THD(Typ.) @ full load | ≤15% | ||||
| Efficiency @ full load | ≥89%@120VAC | ≥91%@120VAC | ≥89%@120VAC | ≥91%@120VAC | |
| ≥90%@230VAC | ≥93%@230VAC | ≥90%@230VAC | ≥93%@230VAC | ||
| ≥91%@277VAC | ≥93%@277VAC | ≥91%@277VAC | ≥93%@277VAC | ||
| AC Current (Max.) | 3.2A | ||||
| Inrush Current (Typ.) | 45.6A, 440us@50%lpeak@120VAC 114A, 55us@50%lpeak@230VAC | ||||
| 94A, 480us@50%lpeak@277VAC | |||||
| No-load Power | ≤5W | ||||
| Leakage current | ≤0.5W | ||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after | ||||
| temperature drop | |||||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ≤95℃ | ||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) | ||||
| I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC Part 15B(US) | ||||
| Others | Net Weight | ?KG | |||
| Dimension | 279*78*25.1mm (L*W*H) | ||||
| Packing | 20PCS/CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance and load regulation . | |||||
|
|
 |
 |
 |

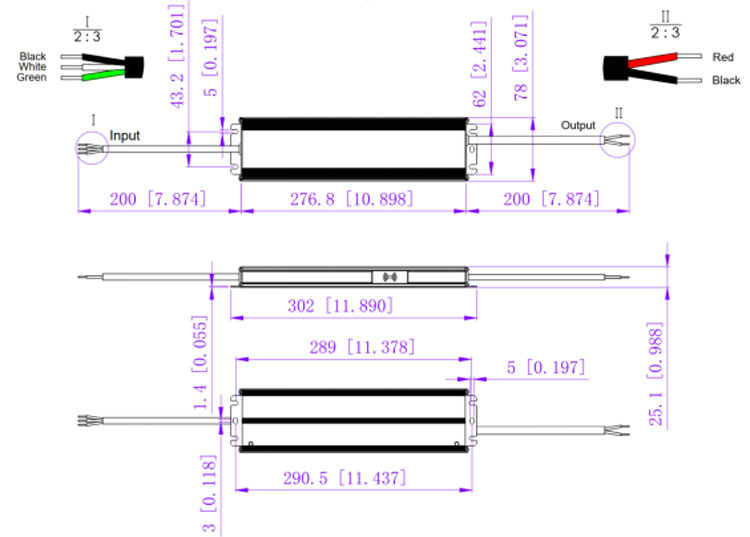

Mechanical Specification
1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|

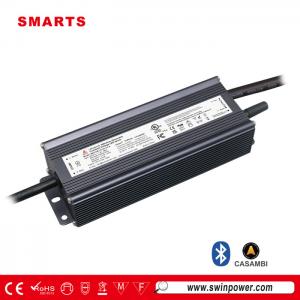

This 150W constant voltage casambi dimmable LED power supply features an aluminum housing design for excellent heat dissipation, making it suitable for indoor smart LED lighting projects and enabling smooth and stable dimming.
