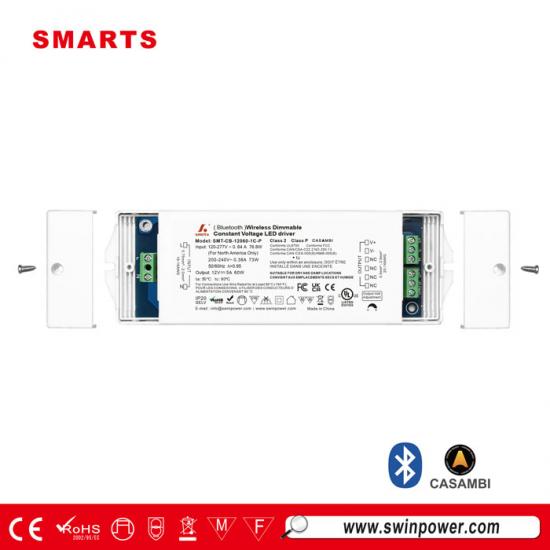

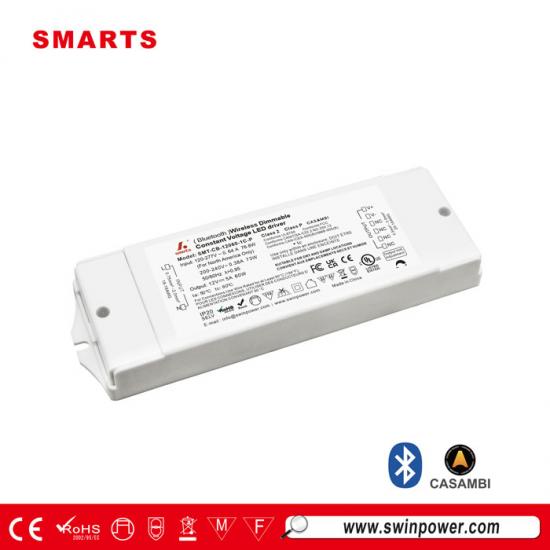

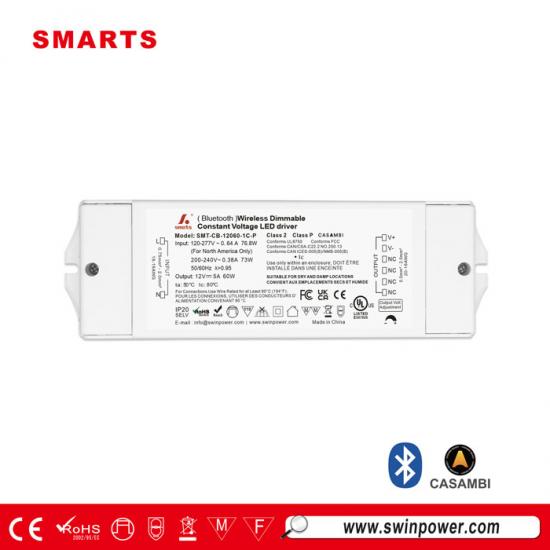

Wireless CASAMBI Bluetooth 12 volt power supply for led strips lights
This constant voltage LED driver features an integrated design, a metal housing for excellent heat dissipation, built-in active PFC, ultra-low load capability, and a 7-year warranty.
Specification
| Model | SMT-CB-12060-XC-P | SMT-CB-24060-XC-P | SMT-CB-48060-XC-P | |
| Certificate | UL / FCC / CE / SAA / UKCA / RoHS / Reach | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 376mVp-p | 248mVp-p | 208mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
|
| THD(Typ. ) @ full load | ≤10%@120VAC ≤15%@277VAC | |||
| Efficiency(Typ.) @ full load |
86.5%@120VAC 90.0%@230VAC 90.5%@277VAC |
87.0%@120VAC 88.5%@230VAC 89.5%@277VAC |
86.0%@120VAC 89.5%@277VAC | |
| AC Current (Max.) | 0.64A@120VAC 0.28A@277VAC | |||
| Inrush Current (Typ.) | 26.4A/136 us@50%Ipeak 120VAC 46.7A/140us@50%Ipeak 277VAC 63.2A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed | ||
| Over Load | ≥120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage |
I/P-O/P:3.75KVAC (EU) I/P-O/P:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV | |||
| EMC Immunity |
FCC/ICES do not request this test(US) EN61000-4-2,3,4,5,11 EN61547 (EU) |
|||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4a-2017 (US)EN55015 EN61000-3-2,3(≥50%)(EU) | |||
| Others | Net Weight | 0.35KG | ||
| Dimension | 192*62*24mm (L*W*H) | |||
| Packing | 280*210*160MM 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
|
|
 |
 |
 |

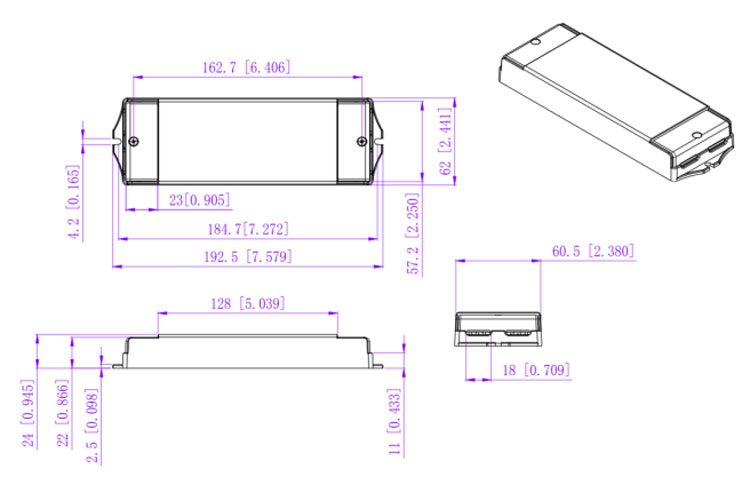

Mechanical Specification
1. Input DG128 terminal with 3P: Live Wire(L) , Neutral Wire (N) .
2. Output DG128 terminals with XC:(X+1)P: LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design.
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Warm tips:
1. Suggested wire diameter: Primary 0.75-2.5mm2 (18-14 AWG); Secondary 0.5-2.5mm2 (20-14 AWG).
2. Any other requests for, we can customized.
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 12 | |
| 16A | 15 | |
| 20A | 19 | |
| 25A | 23 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 28 | |
| 20A | 36 | |
| 25A | 45 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 21 |
| 13A | 28 | |
| 16A | 34 | |
| 20A | 43 | |
| 25A | 52 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ° C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|

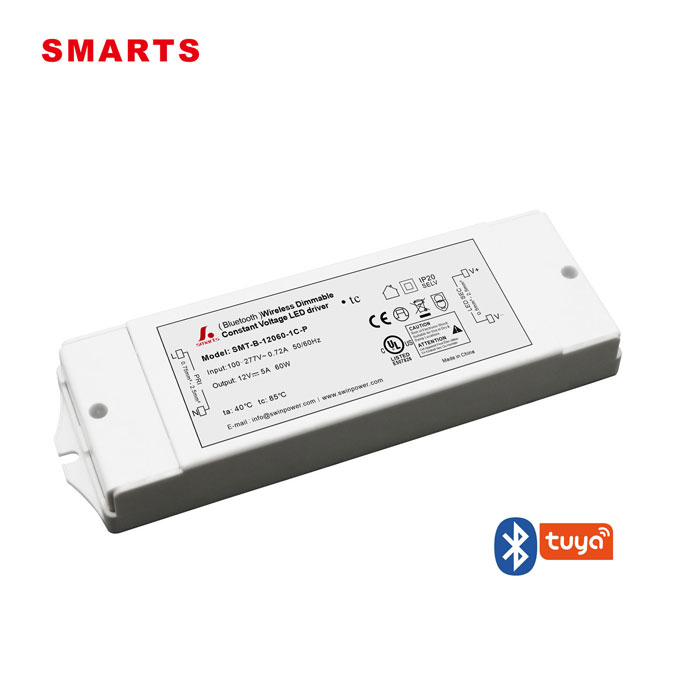

This Bluetooth 60W constant voltage LED power supply features a compact plastic casing, making it easy and quick to install. It's suitable for indoor LED lighting projects in confined spaces and comes with a 7-year warranty.
