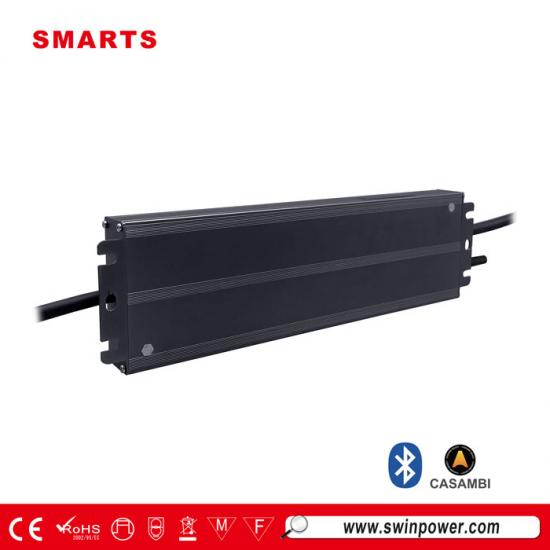

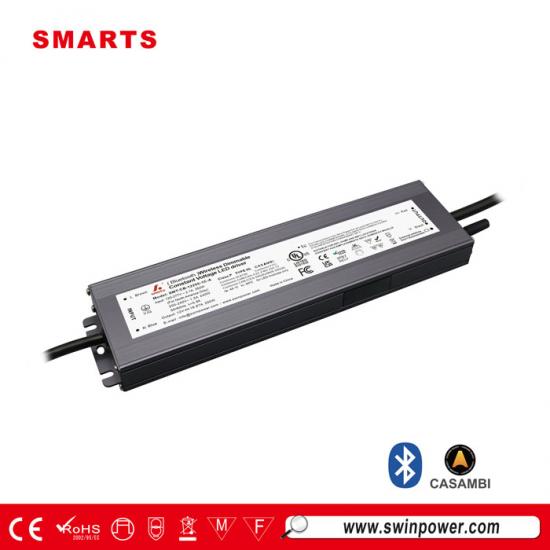

waterproof ip67 constant voltage CASAMBI dimmable led driver 12v/24v for led lighting
Smartspower's new CASAMBI Bluetooth wireless dimming LED driver features constant voltage operation and short-circuit/over-temperature/overload protection. Its aluminum housing design provides excellent heat dissipation, making it suitable for installation in indoor and outdoor damp environments.
Specification
| Model | SMT-CB-12200-1C-A | SMT-CB-24200-1C-A | SMT-CB-48200-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±0.5V | |||
| Voltage Regulation | ≤0.5% | |||
| Rated current | 16.67A | 8.33A | 4.17A | |
| Rated power | 200W | |||
| Load Regulation | ≤2% | ≤1% | ||
| Input | Voltage Range | 110~277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor @ full load | ≥0.98@230VAC | |||
| THD(Typ.) @ full load | <15% | |||
| Efficiency @ full load | 91.5%@230VAC | 93%@230VAC | 93%@230VAC | |
| AC Current (Max.) | 2.1A | |||
| Inrush Current (Typ.) | 88A,140us@50%Ipeak 230VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | ||
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC CFR 47 Part 15,Subpart B (US) | |||
| Others | Net Weight | ?KG | ||
| Dimension | 279*78*25.1mm (L*W*H) | |||
| Packing | 20PCS/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
|
|
 |
 |
 |

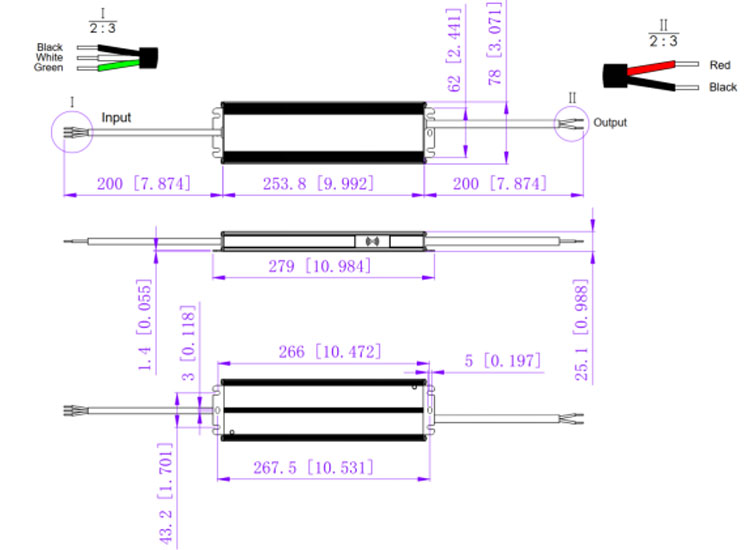

Mechanical Specification
1. Input cable 3*18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 2*16AWG, Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|
This 150W constant voltage casambi dimmable LED power supply features an aluminum housing design for excellent heat dissipation, making it suitable for indoor smart LED lighting projects and enabling smooth and stable dimming.
Model: SMT-CB-12150-1C-A Input Voltage: 100-277Vac
Dimming Mode: CASAMBI Bluetooth dimmable
|
