24v/48v 96W CASAMBI dimmable dimmable constant voltage led driver with junction box

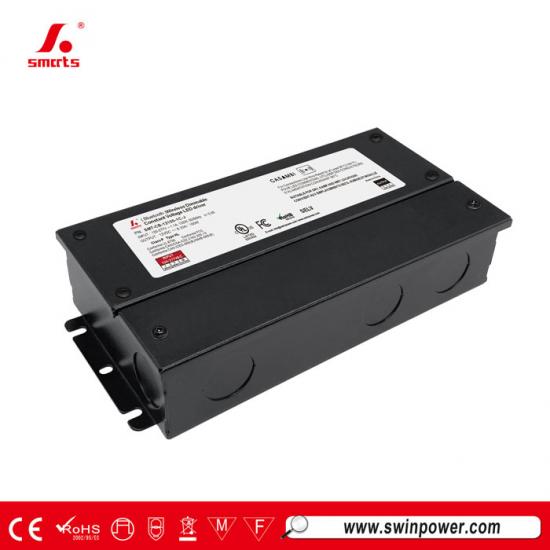

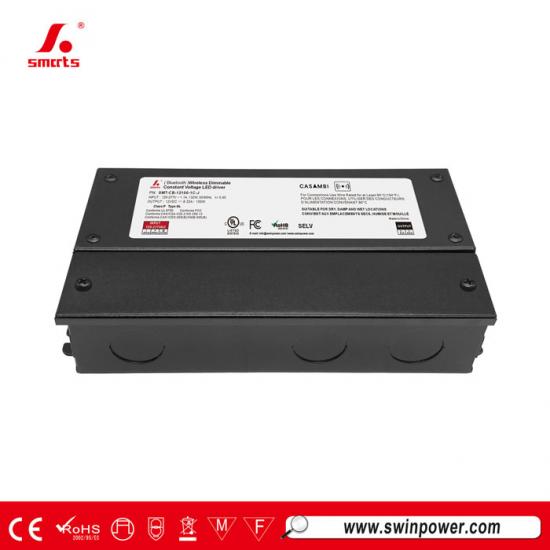

This constant voltage wireless dimmable LED driver features an integrated design with a junction box and a metal casing for excellent heat dissipation. It offers simple wiring and precise dimming control. It is suitable for installation in indoor smart LED lighting projects.
Specification
| Model | SMT-CB-24096-xC-J | SMT-CB-48096-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class 2 / Class P / ROHS / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | |
| Load Regulation | ±3% | ±2% | |
| Line Regulation | ±1% | ±1% | |
| Rated current | 4A | 2A | |
| Rated power | 96W | 96W | |
| RIPPLE & NOISE (max.) | 300mVp-p | 208mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | ||
| Input | Voltage Range | 120-277VAC | |
| Frequency Range | 50 / 60Hz | ||
| Power Factor @ full load | >0.95 | ||
| THD(Typ. ) @ full load | ≤10%@120VAC ≤10%@277VAC | ||
| Efficiency(Typ.) @ full load |
87.5%@120VAC 90.0%@277VAC |
88.6%@120VAC 91.9%@277VAC |
|
| AC Current (Max.) | 1.1A | ||
| Inrush Current (Typ.) | 49.6A/136 us@50%Ipeak 120VAC 96.0A/146us@50%Ipeak 277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed. | |
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | ||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | ||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV,Common Mode 2KV | ||
| EMC Immunity | FCC/ICES do not request this test. | ||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | ||
| Others | Net Weight | 2KG | |
| Dimension | 188*95.4*42.7mm (L*W*H) | ||
| Packing | 415*265*270MM 20pcs /CTN | ||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | ||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||
|
|
 |
 |
 |
Mechanical Specification

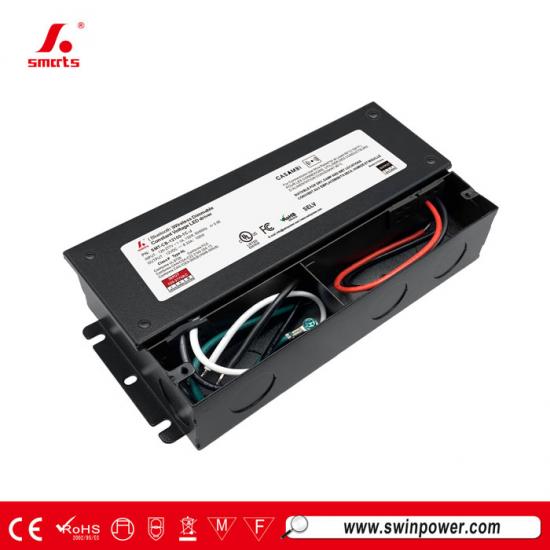

1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|
This 96W constant voltage CASAMBI dimmable LED power supply, available with 1-5 channels, features a full aluminum casing for excellent heat dissipation, easy and quick installation, and comes with a 7-year warranty.
Model: SMT-CB-24096-1C-A Input Voltage: 100-277Vac
Dimming Mode: CASAMBI Bluetooth dimmable
|
