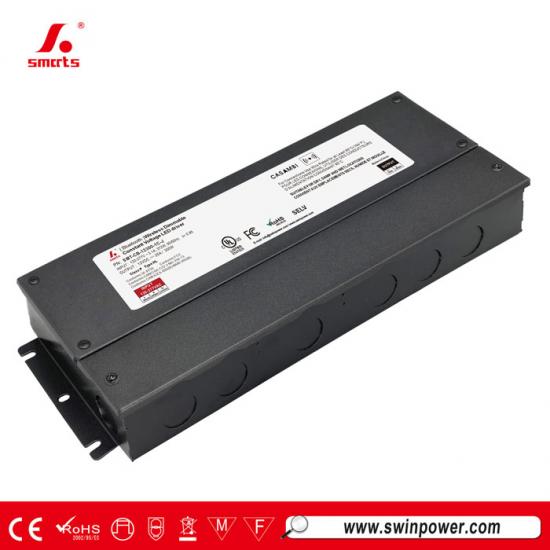

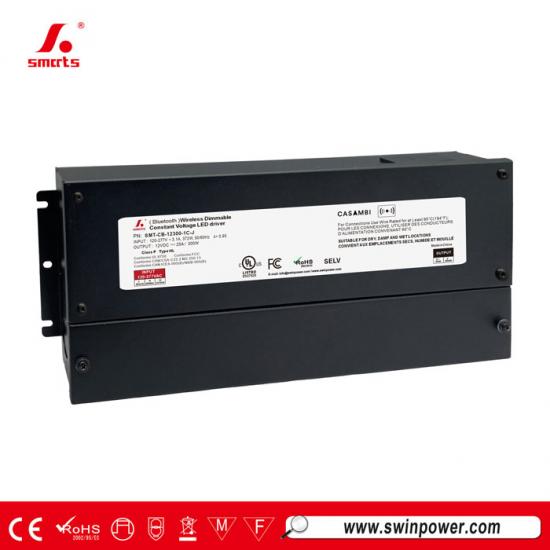

ul listed Wireless dimmable constant voltage 12v/24v/48v led power supply with junction box
The CASAMBI wireless dimmable constant voltage LED driver features an integrated junction box design with built-in active PFC. Wiring is simple and quick, and precise, flicker-free, smooth dimming can be achieved via a mobile app.
Specification
| Model | SMT-CB-12300-xC-J | SMT-CB-24300-xC-J | SMT-CB-36300-xC-J | SMT-CB-48300-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class P / ROHS / REACH | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage Tolerance | ±0.5V | ±0.5V | ±1V | ±1V | |
| Load Regulation | ±3% | ±1% | ±1% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | ≤1% | |
| Rated current | 25A | 12.5A | 8.33A | 6.25A | |
| Rated power | 300W | 300W | 300W | 300W | |
| RIPPLE & NOISE (max.) | 300mVp-p | 400mVp-p | 400mVp-p | 400mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | ||||
| Input | Voltage Range | 120-277VAC | |||
| Frequency Range | 50 / 60Hz | ||||
| Power Factor @ full load | >0.95 | ||||
| THD(Typ. ) @ full load | ≤15%@120VAC ≤15%@277VAC | ||||
| Efficiency(Typ.) @ full load |
89.0%@120VAC 91.0%@277VAC |
91.0%@120VAC 93.5%@277VAC |
89.0%@120VAC 91.0%@277VAC |
90.0%@120VAC 92.0%@277VAC |
|
| AC Current (Max.) | 3.1A | ||||
| Inrush Current (Typ.) | 45.6A/440us@50%lpeak @120VAC 94A/480us@50%lpeak @277VAC | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over Load | 105%~110% Hiccup mode, recovers automatically after fault condition is removed. | ||||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | ||||
| Environment | Working TEMP. | -40~+45℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | |||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | ||||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||||
| EMC Immunity | FCC/ICES do not request this test. | ||||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | ||||
| Others | Net Weight | 2.2KG | |||
| Dimension | 316*125*42.7mm (L*W*H) | ||||
| Packing | 365*270*305mm 10pcs /CTN | ||||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | ||||
| 2. Default states:Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | |||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||||
|
|
 |
 |
 |
Mechanical Specification

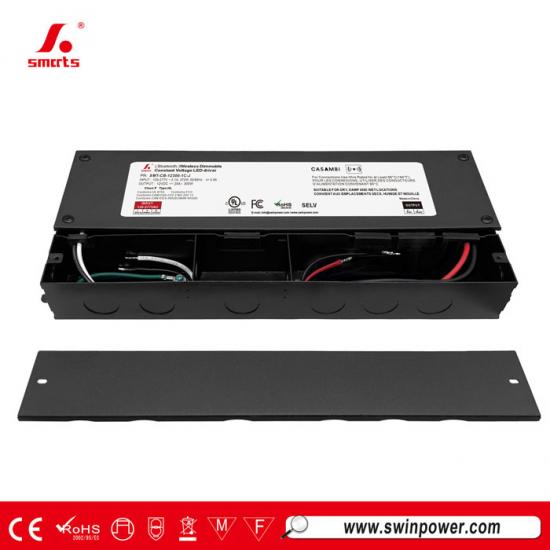

1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|

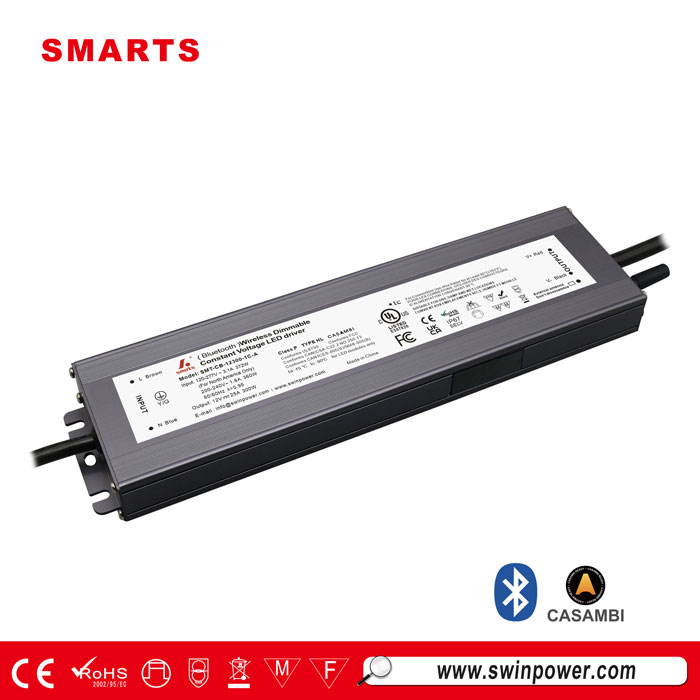

CASAMBI wireless dimming LED power supply operates in constant voltage mode with built-in active PFC, achieving an efficiency of up to 93%. Its all-aluminum casing provides excellent heat dissipation. It complies with global safety lighting regulations and comes with a 7-year warranty. Model: SMT-CB-12300-1C-A Input Voltage: 100-277Vac
Dimming Mode: CASAMBI Bluetooth dimmable
|
