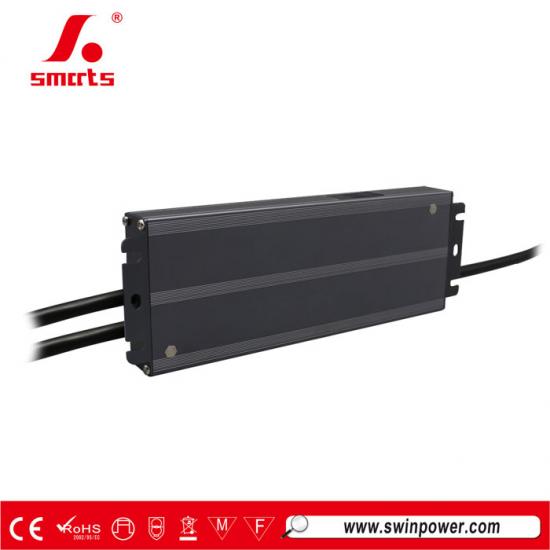

ip67 waterproof 96W 277vac to 24vdc dali 2&push dimmable constant voltage led power supply driver
This new product dali2 dimming 96W LED power supply, built-in active PFC function, constant voltage working mode, working efficiency up to 89%, also has short circuit, overload, overtemperature protection, can well protect the safety of lamps
Specification
| Model | SMT-24096V-DP2-2C | SMT-36096V-DP2-2C | SMT-48096-DP2-2C | |
| Output | DC Voltage | 24V(24-26V adjust by NFC) | 36V(36-38V adjust by NFC) | 48V(48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | |||
| Rated current | 4A | 2.67A | 2.0A | |
| Rated power | 96W | |||
| Load Regulation | 1% | |||
| Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | |||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading) | |||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | |||
| Efficiency(Typ.)@ full load | 86%@120VAC 89%@230VAC/277VAC | |||
| AC Current(Max.) | 1.3A | |||
| Standby power consumption | 0.25W(@120V) | 0.20W(@120V) | 0.20W(@120V) | |
| 0.42W(@230V) | 0.43W(@230V) | 0.43W(@230V) | ||
| 0.47W(@277V) | 0.48W(@277V) | 0.48W(@277V) | ||
| Inrush Current (Typ.) | 23.2A, 50%, 360us @120VAC; 80A, 50% , 104us @230VAC,54A, 50% , 280us @277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | ||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | |||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | |||
| Environ-ment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | ||
| Working Humidity | 20 ~ 95%RH,non-condensing | |||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | |||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | |||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750(US) | ||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US) | |||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | |||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | |||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | |||
| Others | Weight | / | ||
| Dimension | 232*78*25.1mm (L*W*H) | |||
| packing | / | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | ||||
 |
 |
 |
 |
Mechanical Specification
※Input & Output wiring
※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N) (EU);
Input SJOW Rubber cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);
※Output electronic cable 6*14AWG (every color has two cables), to be connected to LED Light (12V output voltage);
Output electronic cable 3*14AWG, to be connected to LED Light (24~48V output voltage)
※Dimming cable
※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.
Brown (N) is connected to AC (N) while Purple (L) and Gray (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
Note: there is external antenna at output side. Don't disassemble!
Dimming Operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that
only one DALI power is need in the DALI bus, so no extra DALI
power is needed if the Master or Dimmer already includes the DALI Power.
Related Products
|
dali dimming 96W LED driver works in constant voltage mode, and the input voltage is 100-265vac. The Dali Dimming 96W LED Driver has passed ETL and CE certification
Model:SMT-012-096VM Input Voltage: 100-265VAC
Dimming Mode: dali Dimmable
|
