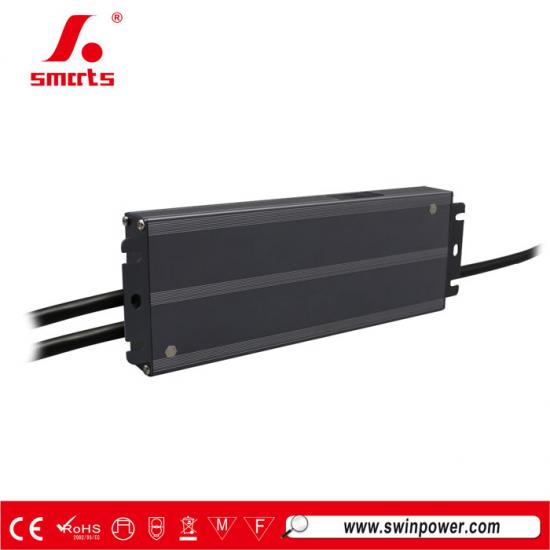

100w 12 volt dali 2 & push dimmable waterproof led power supply light transformer driver price

Waterproof 100W LED driver built-in active PFC function, constant pressure working mode, efficiency up to 89%, aluminum shell, size 231*78*25.1mm, dimming mode dali2 & push dimmable
  • Brand:

    SMARTS
  • Item No.:

    SMT-12100V-DP2-2C
  • Input Voltage:

    100-277Vac
  • Output Voltage:

    12VDC/24VDC/36VDC/48VDC
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    DALI 2&PUSH Dimmable
  • Size:

    231*78*25.1mm
  • Certification:

    UL
Products description

 100w 12 volt dali 2 & push dimmable waterproof led power supply light transformer driver price

smarts dali 2 & push dimming led driver 100W, aluminum housing, cooled by free air convection, waterproof rating ip67 for indoor and outdoor lighting installations


  Specification

Model SMT-12100V-DP2-2C SMT-24100V-DP2-2C SMT-36100V-DP2-2C SMT-48100V-DP2-2C
Output DC Voltage 12V(12-13.5V adjust by NFC) 24V (24-26V adjust by NFC) 36V (36-38V adjust by NFC) 48V (48-50V adjust by NFC)
Voltage Tolerance ±0.2V
Rated current 8.34A  4.17A 2.78A 2.08A
Rated power 100W
Load Regulation 2% 1% 1% 1%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98@120VAC  PF≥0.96@230VAC  PF≥0.95@277VAC (Full loading)
THD(Typ.)@ full load ≤10%@120VAC ;  ≤10%@230VAC;  ≤15%@277VAC
Efficiency(Typ.)@ full load 86%@120VAC   89%@230VAC/277VAC
AC Current(Max.) 1.3A 1.3A 1.3A 1.3A
Standby power consumption 0.20W(@120V)
0.39W(@230V)
0.47W(@277V)
0.25W(@120V)
0.42W(@230V)
0.47W(@277V)
0.20W(@120V)
0.43W(@230V)
0.48W(@277V)
0.20W(@120V)
0.43W(@230V)
0.48W(@277V)
Inrush Current (Typ.) 23.2A, 50%, 360us @120VAC;  80A, 50% , 104us @230VAC54A, 50% , 280us @277VAC
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
Environment Working TEMP. -40 ~ +70℃ (see below derating curve)
Working Humidity 20 ~ 95%RH,non-condensing
Storage TEM.,Humidity -40 ~ +80℃,10 ~ 95%RH
TEMP.coefficient ±0.03%/℃(0 ~ 50℃)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13(EU) & UL8750(US)
Withstand voltage I/P-O/P:3.75KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU)I/P-O/P:1.80KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (US)
Isolation resistance I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
EMC Emission EN55015  EN61000-3-2 EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6,11  EN61547
Others Weight 0.83KG
Dimension 231*78*25.1mm (L*W*H)
packing 355*300*170mm/20PCS/CTN    G.W.:18KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification



Input & Output wiring

※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N) (EU);

Input SJOW Rubber cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);

※Output electronic cable 3*16AWG, to be connected to LED Light;

Dimming cable

Dimming electronic cable 3*18AWGBrown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and Gray (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

※Note: Any other requests we can customize.

CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative



Note:  there is external antenna at output side.  Don't disassemble!


 Dimming Operation

Note: For DALI Dimming Wiring Diagram 3, please noted that

    only one DALI power is need in the DALI bus, so no extra DALI

    power is needed if the Master or Dimmer already includes the DALI Power.
