best 1 Channel 0 10v dimmer Wall Switch Control for led lighting

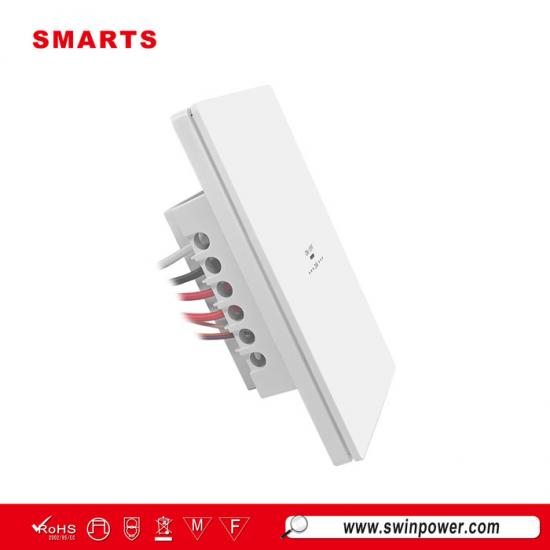

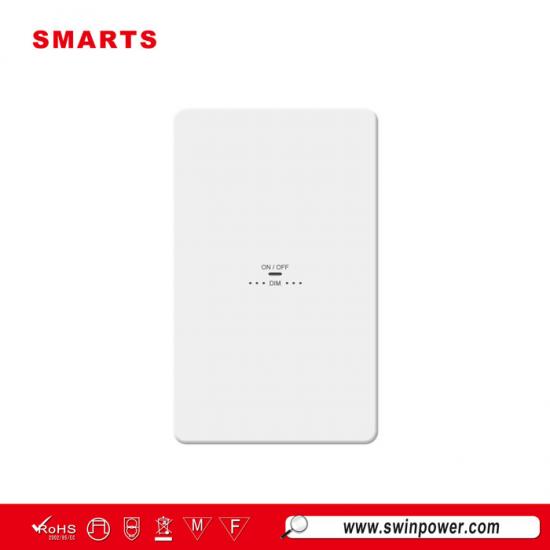

The SmartsPower single-button wall-mounted 0-10V dimmer switch is designed with the size and style of a standard household switch. It offers zero learning curves, high energy efficiency, and smooth, stable dimming without flickering. No professional commissioning is required, saving labor.
Specification
Please read before installing.
|
Model |
SMT-U-1CVDW2 |
SMT-U-1CVDG2 |
|
Colour |
White |
Grey |
110-277 V~50/60 Hz
Maximum Capacity (Limited by whichever is achieved first)
|
0-10V-Sink 50 mA |
50mA |
|
load |
120V:500W 277V:1000W |
1、Turn power OFF at circuit breaker
  |
  WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.
|

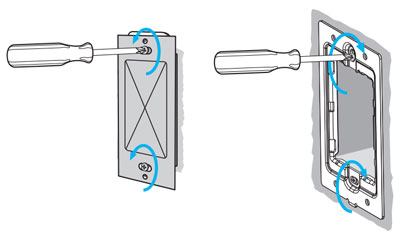

2、Remove existing device & Mount the controller fixed seat

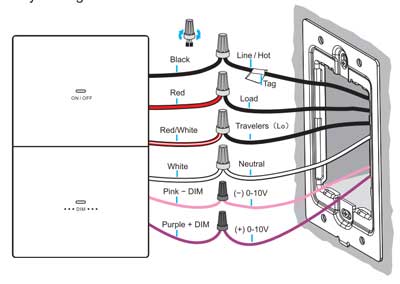

3、Label and remove existing wires
To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.
 |
 |
Note: The dimmer and 0-10V Ballast/driver are independently connected to the input power (AC mains)

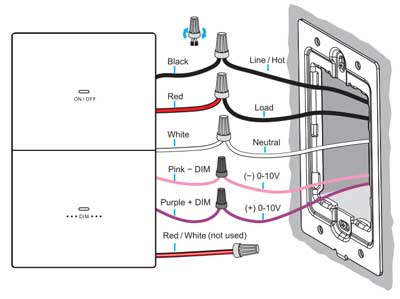

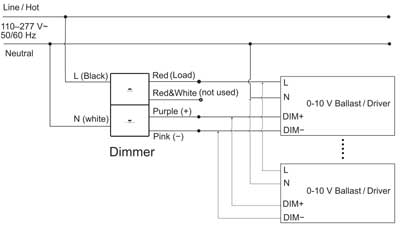

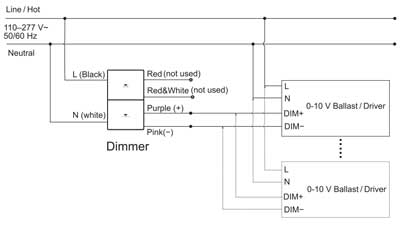

Simple Wiring
  |
  |
Note:Connect the AC input live wire (L) of the 0-10V Ballast/driver to the dimmer's Load wire(Red).
Troubleshooting:
If the dimmer can start ,but the 0-10V Ballast/driver fails to start, please check whether the hot wire and neutral wire at the dimmer (or 0-10V Ballast/driver ) input are reversed.

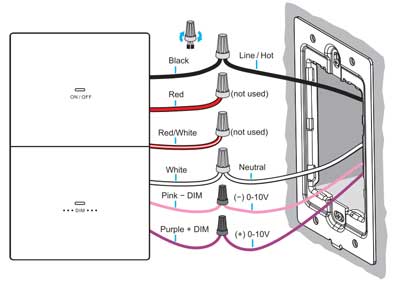

5、Connect the Dimmer (2)

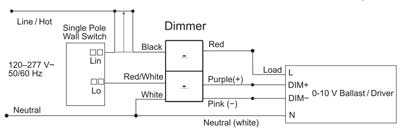

3-Way Wiring
 |
 |
Note: Use standard single pole switch can be combined with a controller to form a dual-control switch system
|
6、Mount the Dimmer
Press and snap into place to complete installation |
7、Turn power ON at circuit breaker
|

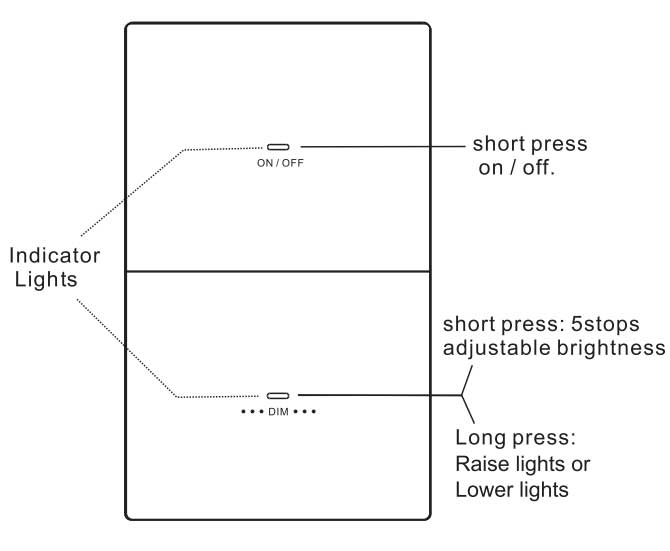

8、Setup Dimmer Operation
|
Note:When the dimming button (long press) reaches maximum or minimum brightness. The indicator light blinks slowly |

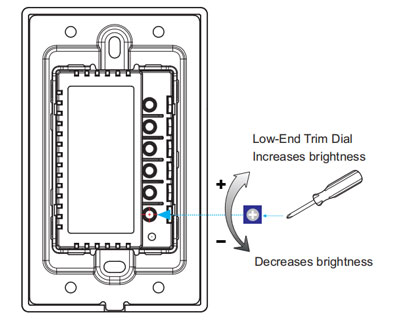

Low-End Trim Adjustment |

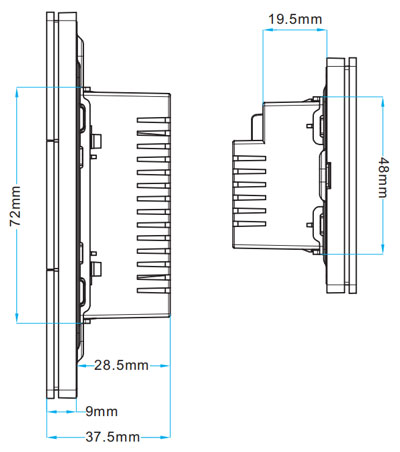

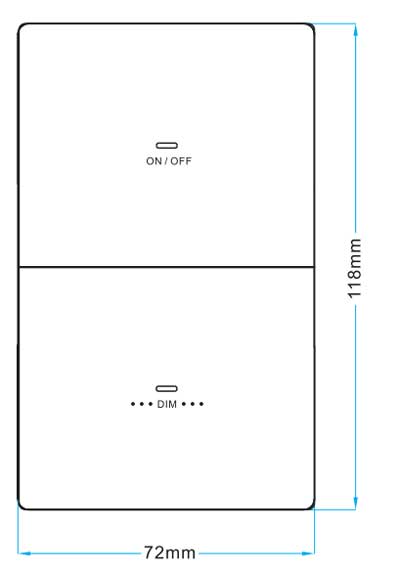

9、Product Dimension
  |
  |
 |
 |
 |
 |
Related Products
|
The white plastic housing of the DALI-2 dimmer uses a two-button design, which is suitable for most modern decoration styles. It has a built-in DALI bus power supply, and the dimming process is smooth, stable and flicker-free.
Model: SMT-U-1CDPW1 Input Voltage: 100-277vac
Dimming Mode: dali-2 Dimmable
|
