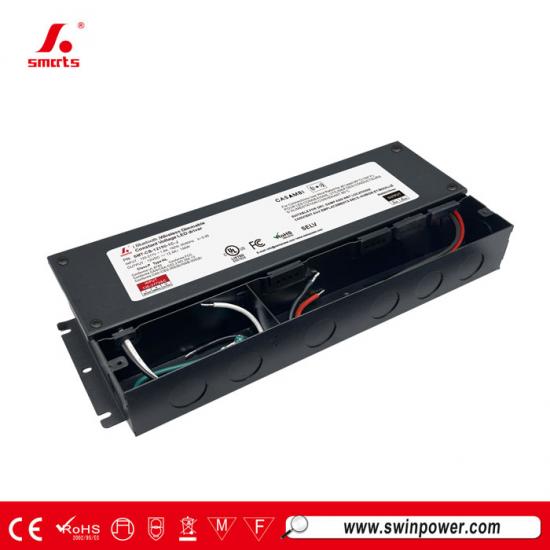

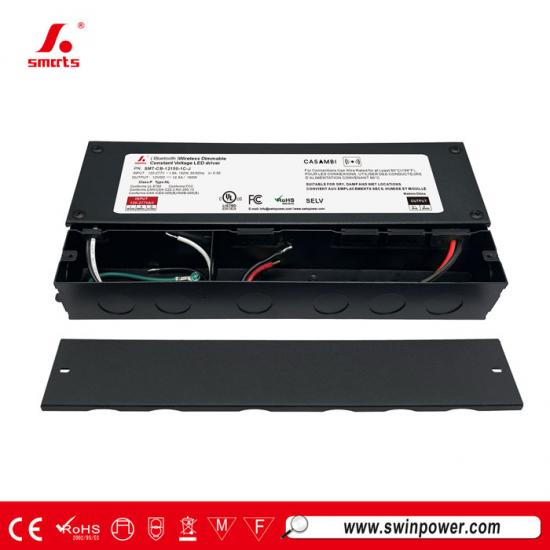

12v 150w constant voltage CASAMBI Bluetooth Wireless dimmable led driver junction box power supply for led strip lights
PWM output mode, constant voltage Bluetooth CASAMBI wireless dimmable LED power supply with short-circuit/over-temperature/overload protection functions. Unique 1-5 channel options are available for users. Features ultra-deep dimming with a dimming range of 0-100%. Complies with global safety lighting regulations.
Specification
| Model | SMT-CB-12150-xC-J | SMT-CB-24150-xC-J | SMT-CB-36150-xC-J | SMT-CB-48150-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class P / ROHS / REACH | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage Tolerance | ±0.5V | ±0.5V | ±1V | ±1V | |
| Load Regulation | ±3% | ±1% | ±1% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | ≤1% | |
| Rated current | 12.5A | 6.25A | 4.17A | 3.125A | |
| Rated power | 150W | 150W | 150W | 150W | |
| RIPPLE & NOISE (max.) | 250mVp-p | 230mVp-p | 270mVp-p | 200mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | ||||
| Input | Voltage Range | 120-277VAC | |||
| Frequency Range | 50 / 60Hz | ||||
| Power Factor @ full load | >0.95 | ||||
| THD(Typ. ) @ full load | ≤15%@120VAC ≤15%@277VAC | ||||
| Efficiency(Typ.) @ full load |
89.0%@120VAC 91.5%@277VAC |
91.5%@120VAC 93.5%@277VAC |
89.0%@120VAC 91.5%@277VAC |
89.5%@120VAC 91.5%@277VAC |
|
| AC Current (Max.) | 1.6A | ||||
| Inrush Current (Typ.) | 33A/99us@50%Ipeak 120VAC 85.6A/266us@50%Ipeak 277VAC | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over Load | 105%~110% Hiccup mode, recovers automatically after fault condition is removed. | ||||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | ||||
| Environment | Working TEMP. | -40~+45℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | |||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | ||||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||||
| EMC Immunity | FCC/ICES do not request this test. | ||||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | ||||
| Others | Net Weight | 2KG | |||
| Dimension | 293*125*42.7mm (L*W*H) | ||||
| Packing | 335*270*280mm 10pcs /CTN | ||||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | ||||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | |||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||||
|
|
 |
 |
 |
Mechanical Specification
1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Connecting Diagram
Substantive Use:
CASAMBI USE Operation:
Related Products
|
Constant voltage 150W wireless Bluetooth CASAMBI dimmable LED driver with aluminum casing design for excellent heat dissipation and IP67 waterproof rating. Complies with global safety lighting regulations. Comes with a 7-year warranty.
Model: SMT-CB-12150-1C-A Input Voltage: 100-277Vac
Dimming Mode: CASAMBI Bluetooth dimmable
|
