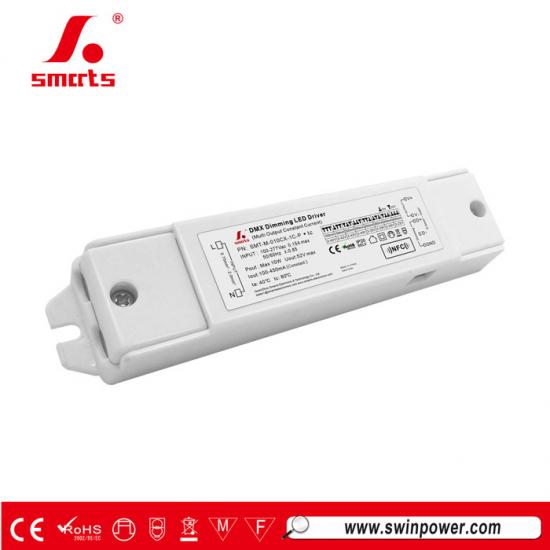

dmx512 dimmable led driver, the dimming range is adjustable between 0-100%, with short circuit, overload, overtemperature protection, built-in NFC function, you can use the NFC function to read and write DMX512 address, and set the address code

  Specification

  Mechanical Specification

 Input with ULO-126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

 Output LED SEC with ULO-381 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

 Suggested wire diameter: Input 0.75-2mm²; Output:0.5-2mm².

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

 Dimming Operation

DMX512 dimming:

 Input terminal with 3P;  Live Wire(L)  , Neutral Wire (N)  . Note: vacant for middle terminal

 Output terminals with 5P;  LED SEC positive (LED+), LED negative (LED-). Connected to LED light;

 Common anode design 3P for DIM (DMX512) dimming;

 Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.

 The default address for our DMX LED driver is 001.

 Address settings device:

  Address settings:

① RDM setting address:

Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.

② NFC setting address:

The DMX address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.

 Setting Operation Steps

 Simple operation about DMX512 address reset and adjusting output voltage slighting by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW)
