200 Watt 300W triac phase 0-10v 1-10v dimmable led driver 277v 12v manufactures

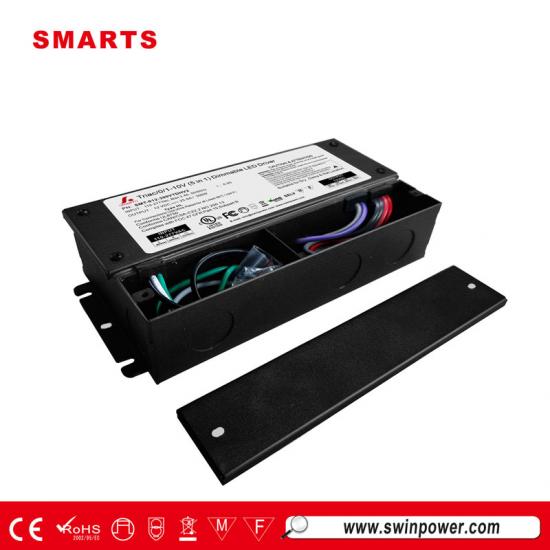

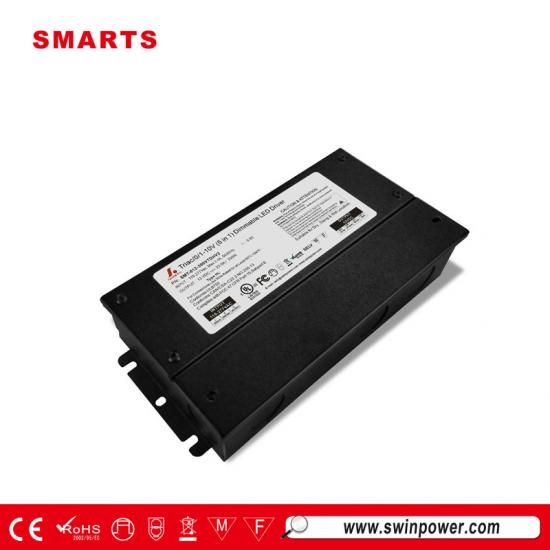

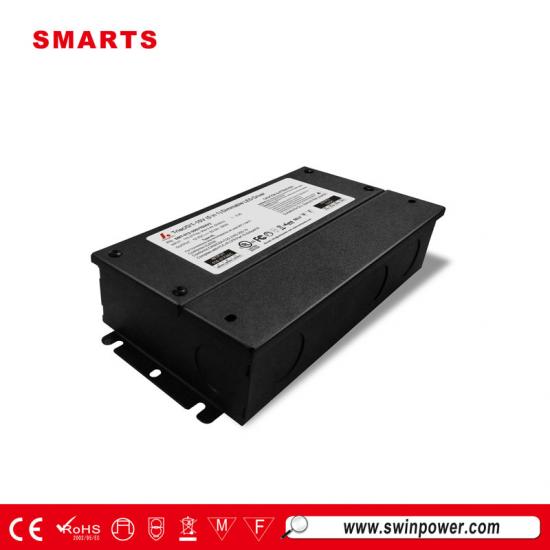

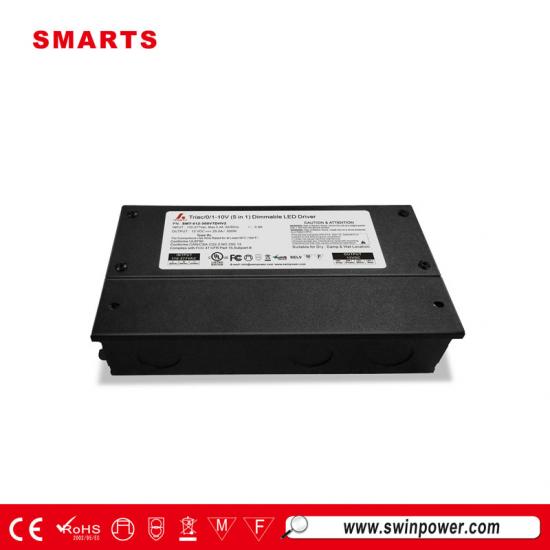

SMT-012-300VTDHV2 12v 300w dimming constant voltage led driver 277v has 5 in 1 dimming option (Triac/0-10V/1-10V/Potentiometer/10V PWM dimming), One dimming driver SKU# with both triac dimming and 0-10v dimming option in your inventory. It's able to replace Magnitude magnetic dimmable led driver PS-MT-300-12 and Meanwell 0-10v dimming driver HLG-240H-12B.
Specification:
|
model |
SMT-012-300VTDHV2 |
SMT-024-300VTDHV2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
25A |
12.5A |
|
|
Load Regulation |
±2%
|
||
|
Rated power |
300W |
300W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
86% @120Vac 88%@277Vac |
88% @120Vac 92%@277Vac |
|
AC Current（Typ.） |
0.9A/110VAC |
||
|
Inrush Current （Typ.） |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over voltage |
≦140VAC(90~135V) , ≦285VAC(170~277V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
About 1.1Kg |
|
|
Size |
278*110*45mm (L*W*H) |
||
|
packing |
10PCS/CTN （L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

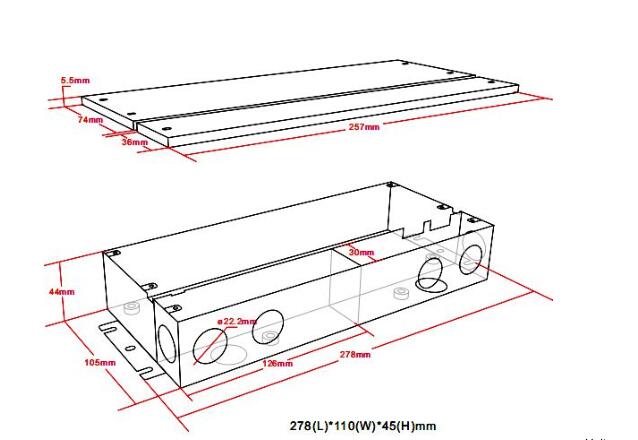

Dimension:
Compatible Dimmer type
SMT-012-300VTDHV2 12v 300w triac phase 0-10v 1-10v dimmable led driver is compatiable with most of the forward phase, reverse phase triac dimmers and 0-10v dimmers in market, such as LUTRON forward phase dimmer CTCL-153PDH-LA and 0-10v dimmer DVSTV-WH.

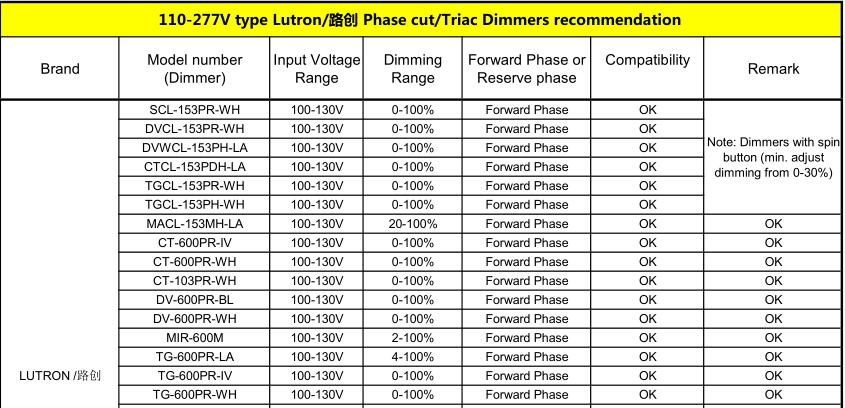

See dimmer cometiable list as below:
|
|
|
Related Products
|
|

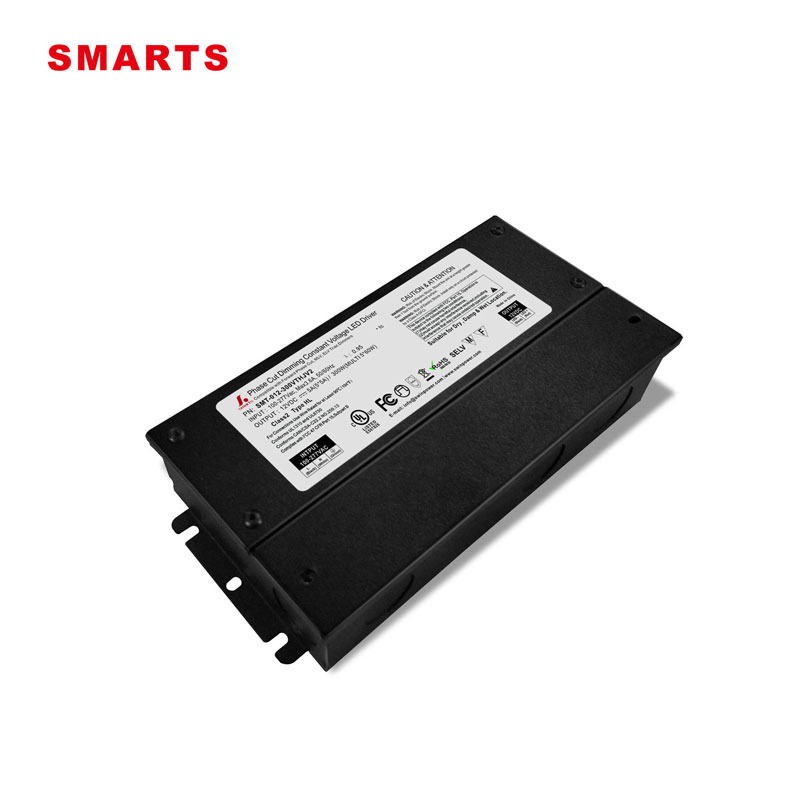

12v dimmable led driver 300w is constant voltage type UL listed phase cut dimming MLV ELV driver, 7 years warranty.
Model：SMT-012-300VTHV2 intput voltage：100~277V AC Efficiency > 86% PFC:93% Size：278*110*45mm （L*W*H） Weight：2.5Kg/pcs |
|
|

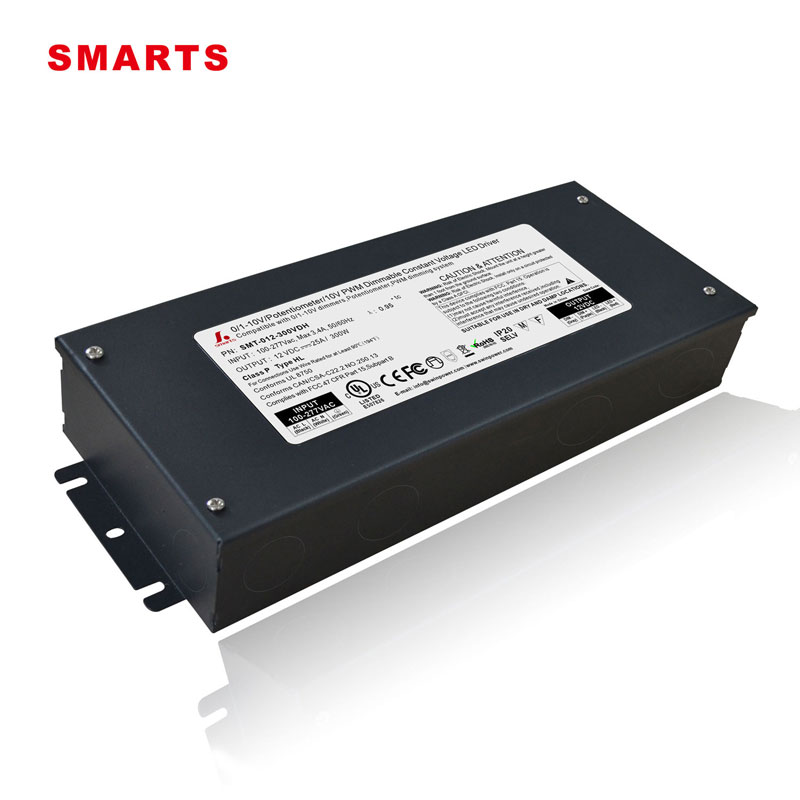

0-10v dimmable led driver 12v 300w led constant volatge, suitable for using in indoor locations, 0-100% dimming range , dimming by PWM duty cycle.
