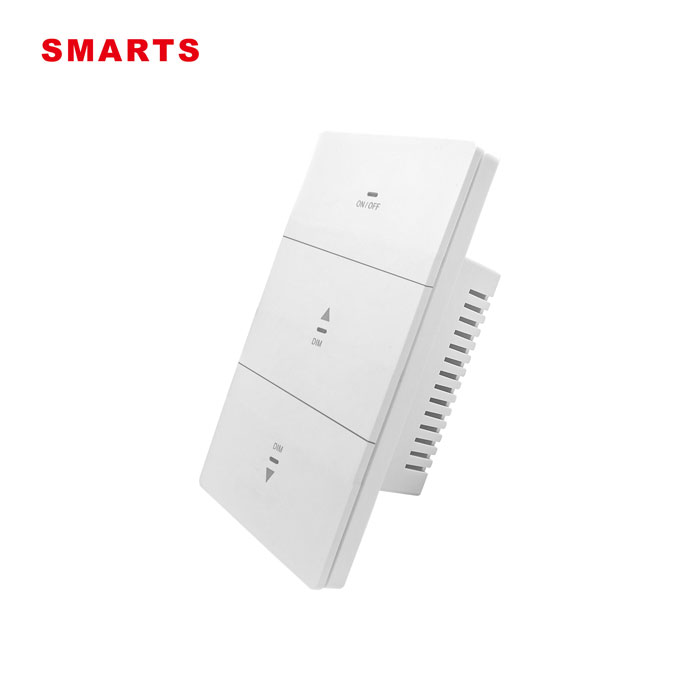

  Specification

Please read before installing.

110-277 V~50/60 Hz
Maximum Capacity (Limited by whichever is achieved first)

1、Turn power OFF at circuit breaker

WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.

2、Remove existing device & Mount the controller fixed seat

3、Label and remove existing wires

To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.

Note: The dimmer and 0-10V Ballast/driver are independently connected to the input power (AC mains)

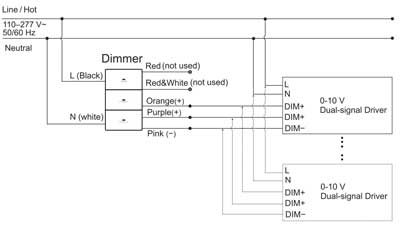

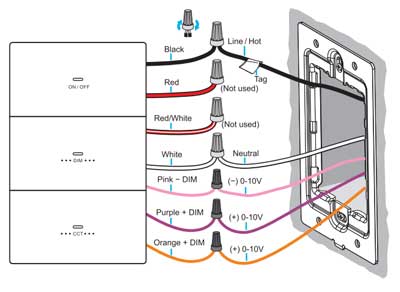

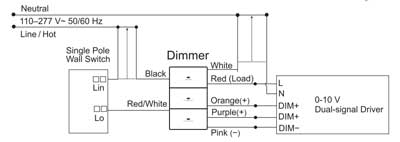

Simple Wiring

Note:Connect the AC input live wire (L) of the 0-10V Ballast/driver to the dimmer's Load wire(Red).
Troubleshooting:
If the dimmer can start ,but the 0-10V Ballast/driver fails to start, please check whether the hot wire and neutral wire at the dimmer (or 0-10V Ballast/driver ) input are reversed.

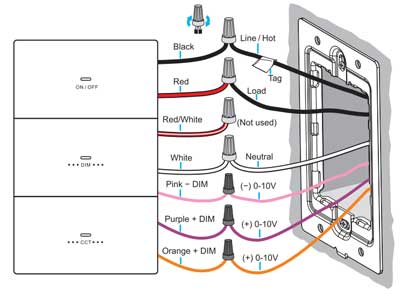

5、Connect the Dimmer (2)

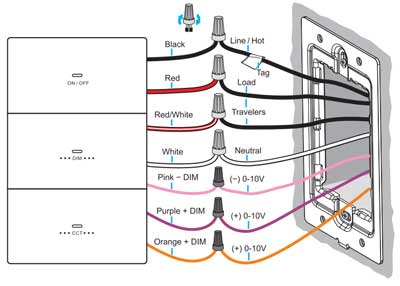

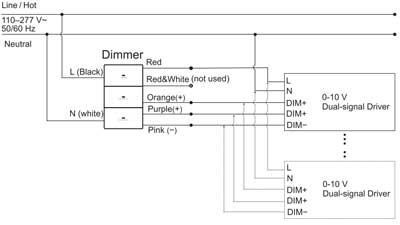

3-Way Wiring

Note: Use standard single pole switch can be combined with a controller to form a dual-control switch system

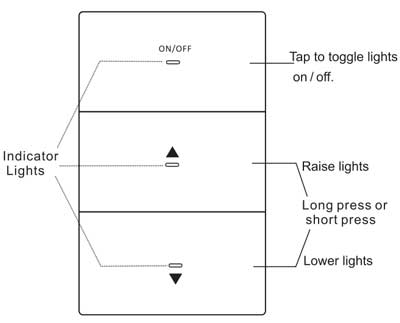

8、Setup Dimmer Operation

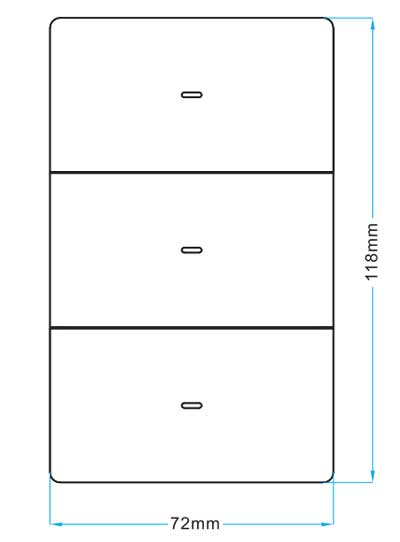

9、Product Dimension
