ip67 waterproof 0 10v dimmable led light strip power supply driver for led lighting

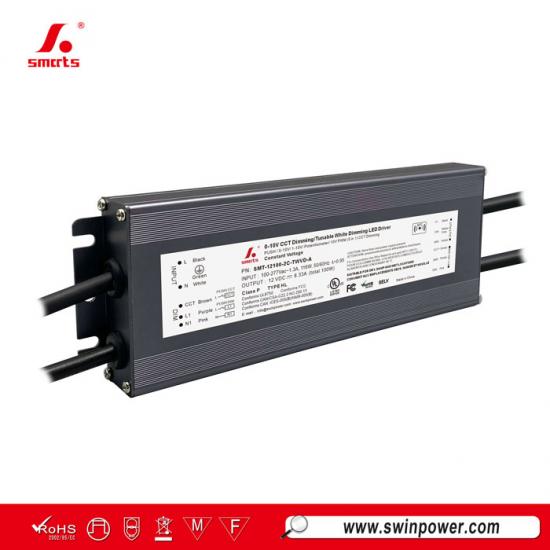

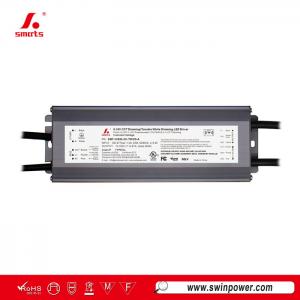

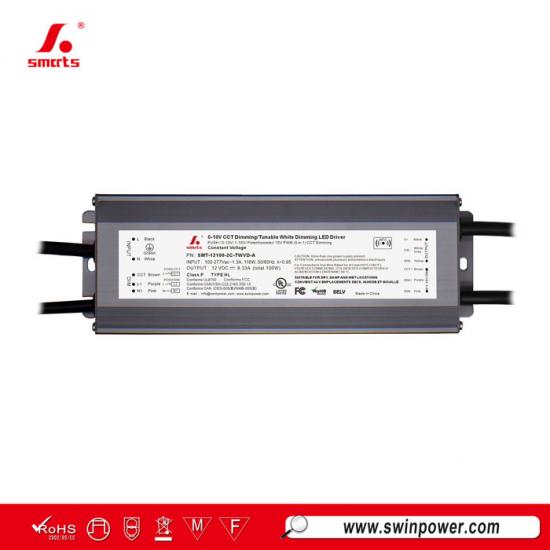

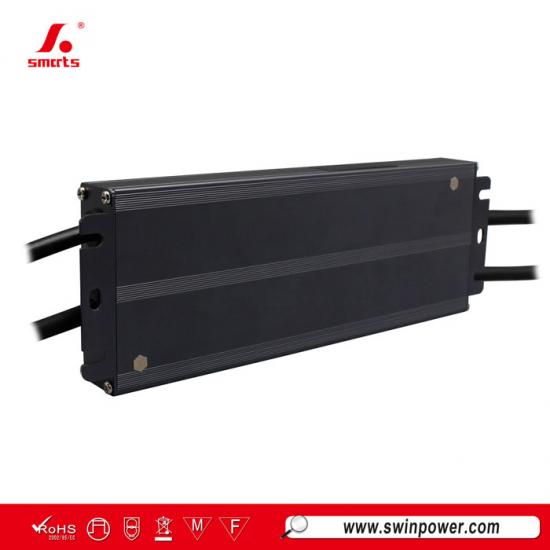

This 100W constant voltage 0-10V dimmable LED power supply features a full aluminum casing design, suitable for use in dry and damp outdoor environments. It utilizes natural air convection cooling and has an IP67 waterproof rating.
Specification
| Model | SMT-12100-2C-TWVD-A | SMT-24100-2C-TWVD-A | SMT-48100-2C-TWVD-A | |
| Certificate | UL / cUL / FCC / ICES-005 / Class P / TYPE HL / SELV / ROHS / REACH | |||
| Output | Rated Voltage | 12V | 24V | 48V |
| DC Voltage | 12-13.5V adjust by NFC | 24-26V adjust by NFC | 48-50V adjust by NFC | |
| Voltage Tolerance | ±0.5V | ±0.5V | ±0.5V | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤1% | ≤1% | |
| Rated current | 8.33A | 4.17A | 2.08A | |
| Rated power | 100W | |||
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor (Typ.) @ full load | >0.95 | |||
| THD(Typ. ) @ full load | ≤15% | |||
| Efficiency(Typ.) @ full load |
87%@120VAC 88%@230VAC 89%@277VAC |
88%@120VAC 89%@230VAC 90%@277VAC |
88%@120VAC 89%@230VAC 90%@277VAC |
|
| AC Current (Max.) | 1.3A | |||
| Inrush Current (Typ.) | 28A, 320us @50%120VAC 90A, 76us @50%230VAC 58A, 260us @50%277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 -95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No. 250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | FCC CFR Title 47 Part 15 Subpart B:2020; ICES-005 Issue 5 | |||
| Others | Net Weight | 0.83KG | ||
| Dimension | 232*78*25.1mm(L*W*H) | |||
| Packing | 300*280*215mm 20pcs/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | |||
| 2. Under low input voltage, derating output is required to ensure a long life. | ||||
|
|
 |
 |
 |

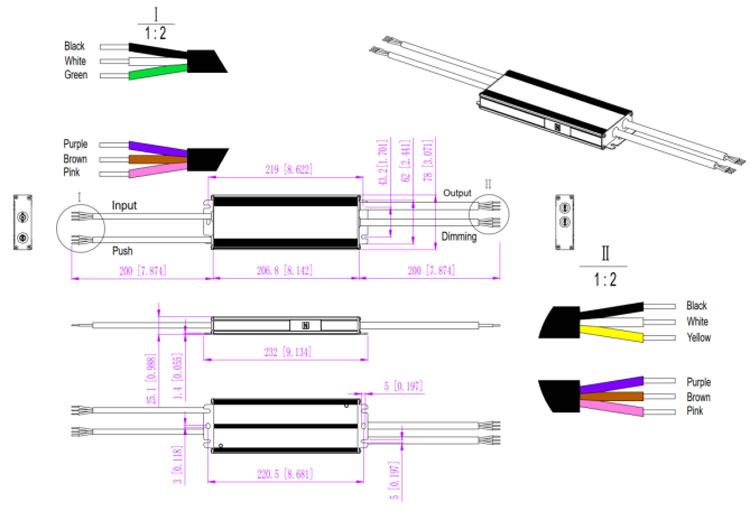

Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 10 |
| 13A | 13 | |
| 16A | 16 | |
| 20A | 20 | |
| 25A | 25 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 7 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 15 | |
| 25A | 19 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic
curve.
| American wire gauge | |
| SP9 | |
| Input wires | DG202 terminals 5P |
| Output wires | DG202 terminals 6P |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Connecting Diagram
■ Derating Curve (output load vsTEMP.):
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver’s life.
NFC function:
 |
 |
 |
 |
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
| NFC voltage regulation level | ||||||||||
| level 1 | level 2 | level 3 | level 4 | level 5 | level 6 | level 7 | level 8 | level 9 | level 10 | |
| 12V | 12.0V | 12.2V | 12.3V | 12.5V | 12.6V | 12.8V | 13V | 13.1V | 13.3V | 13.5V |
| 24V | 24.0V | 24.2V | 24.4V | 24.7V | 24.9V | 25.1V | 25.3V | 25.6V | 25.8V | 26.0V |
| 48V | 48.0V | 48.2V | 48.4V | 48.7V | 48.9V | 49.1V | 49.3V | 49.6V | 49.8V | 50.0V |
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the Dimmable LED
driver.
Related Products
|

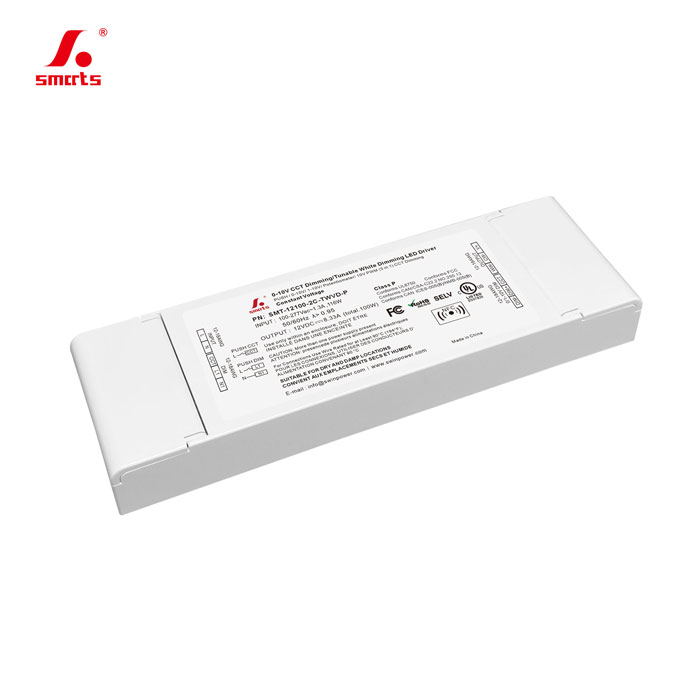

The 100W plastic housing 0 10v dimmable constant voltage LED driver has an IP20 waterproof rating, excellent heat dissipation, and is easy and quick to install. It has a built-in NFC smart programming module, allowing for fine-tuning of the output voltage range via an NFC app, achieving smooth and stable dimming. It is primarily sold in North America and is UL certified.
